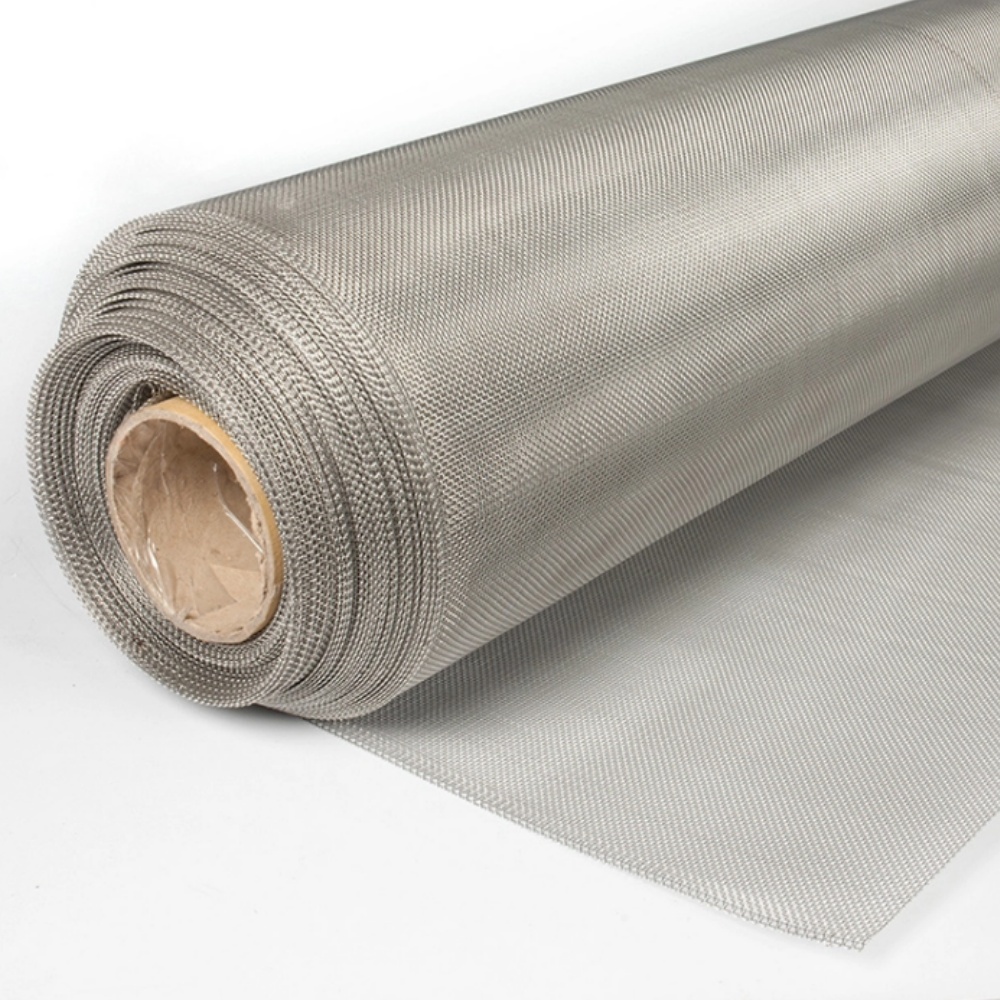

SS304/ 304L/ 316/ 316L Stainless Steel Plain Weave Woven Wire Mesh

Plain weave stainless steel wire mesh is woven with warp and weft wires passing over and under each other alternately, forming a uniform square opening. Made from high-quality 304, 316 and other stainless steel materials, it offers excellent corrosion resistance, high tensile strength and long service life.

With precise mesh openings, high open area and smooth surface, plain weave mesh is ideal for filtration, screening, protection and decoration. It is widely used in petroleum, chemical, food, pharmaceutical, water treatment, construction and battery industries.

Availability:



Inquire Add to Basket

Model:
WYSSWM5
Brand:
weiyue
Code:
WY260928

| Product Description For Stainless Steel Plain Weave Wire Mesh

Plain weave stainless steel wire mesh is one of the most widely used woven mesh products. It is woven with warp and weft wires passing over and under each other alternately, forming a uniform square opening. The structure is stable, the mesh opening is precise, and the open area is high, making it ideal for filtration, screening, protection and decoration.

Material	SUS/ AISI/ SS304,304L,316,316L
Mesh	3-200mesh
Wire Diameter	0.06mm-1.0mm
Width	Common width of roll: 1m, 1.22m, 1.3m, 1.5m etc
Length	Common length of roll: 30m, 15m etc

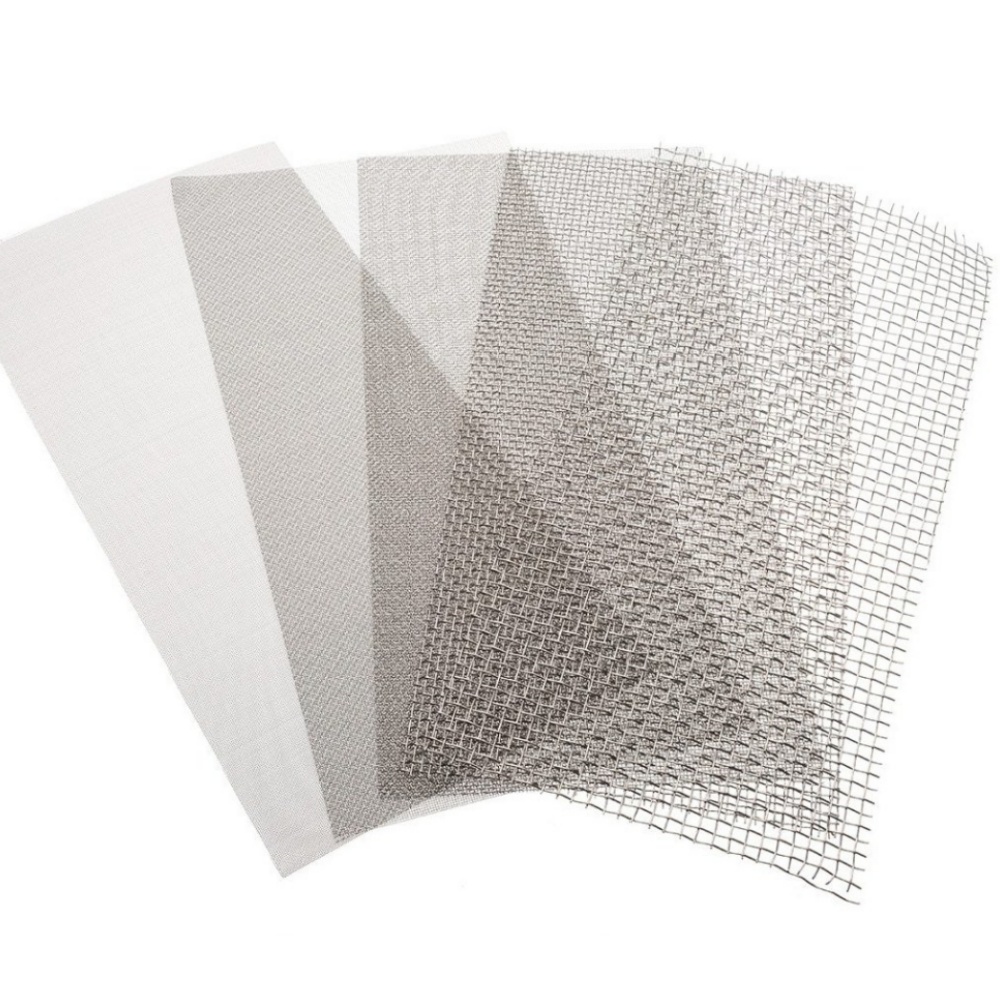

Rolls and Sheets are available

| Structure & Introduction For Stainless Steel Plain Weave Wire Mesh

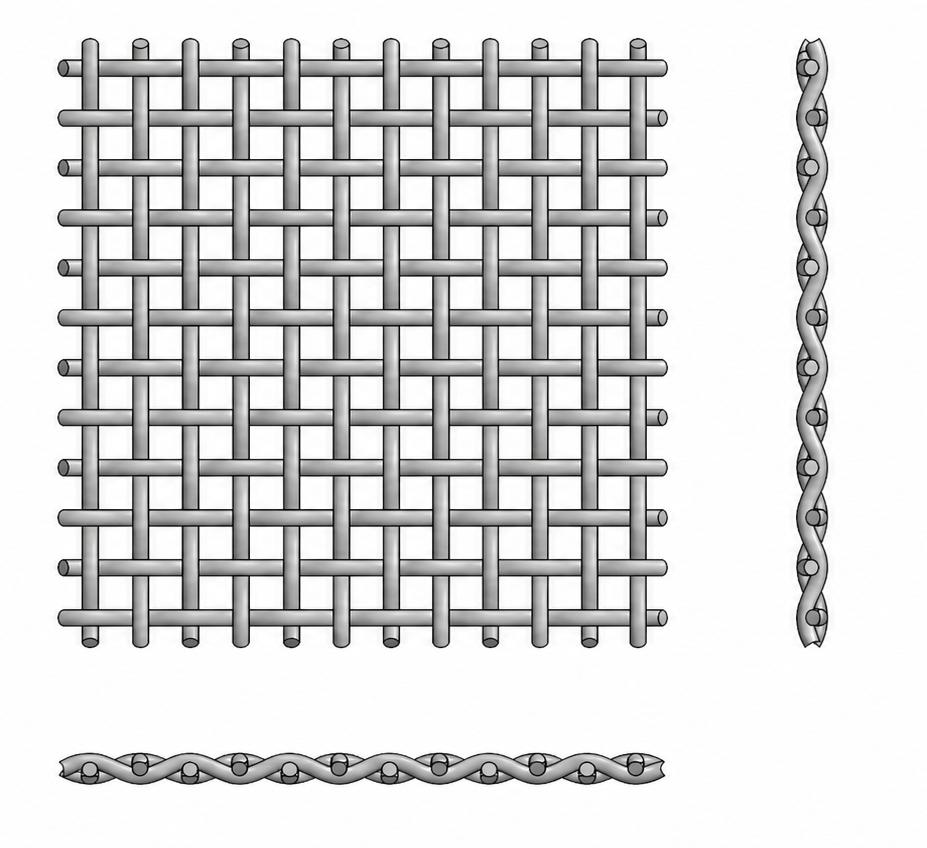

Plain Weave

The simplest and most widely used square-opening weave. Each weft wire alternately passes over and under each warp wire, with both wires in the same diameter to ensure perfectly uniform openings. Ideal for coarse mesh applications, this weave typically serves as a protective outer layer for coarse filtration and filter media support.

| Specification Examples For Stainless Steel Plain Weave Wire Mesh

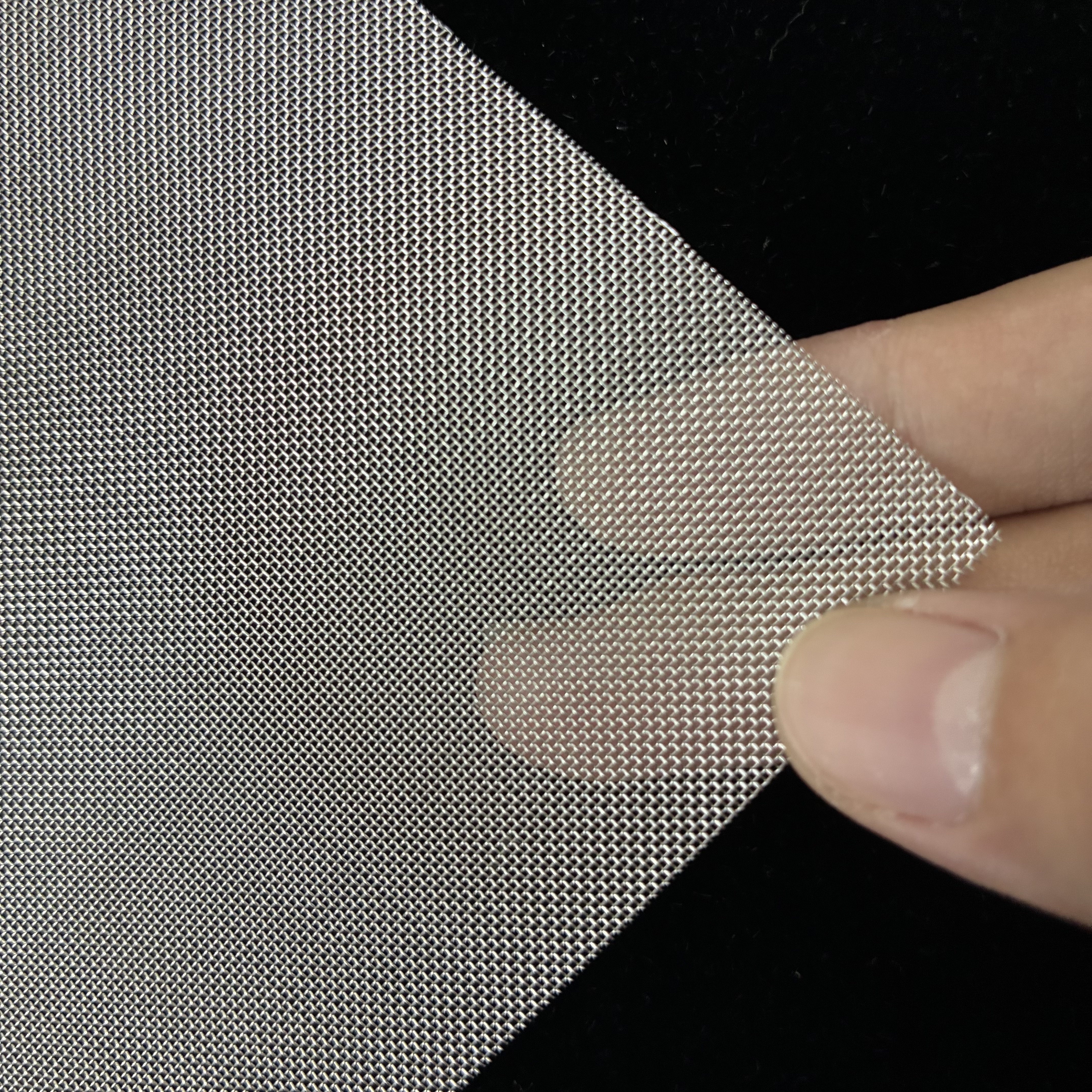

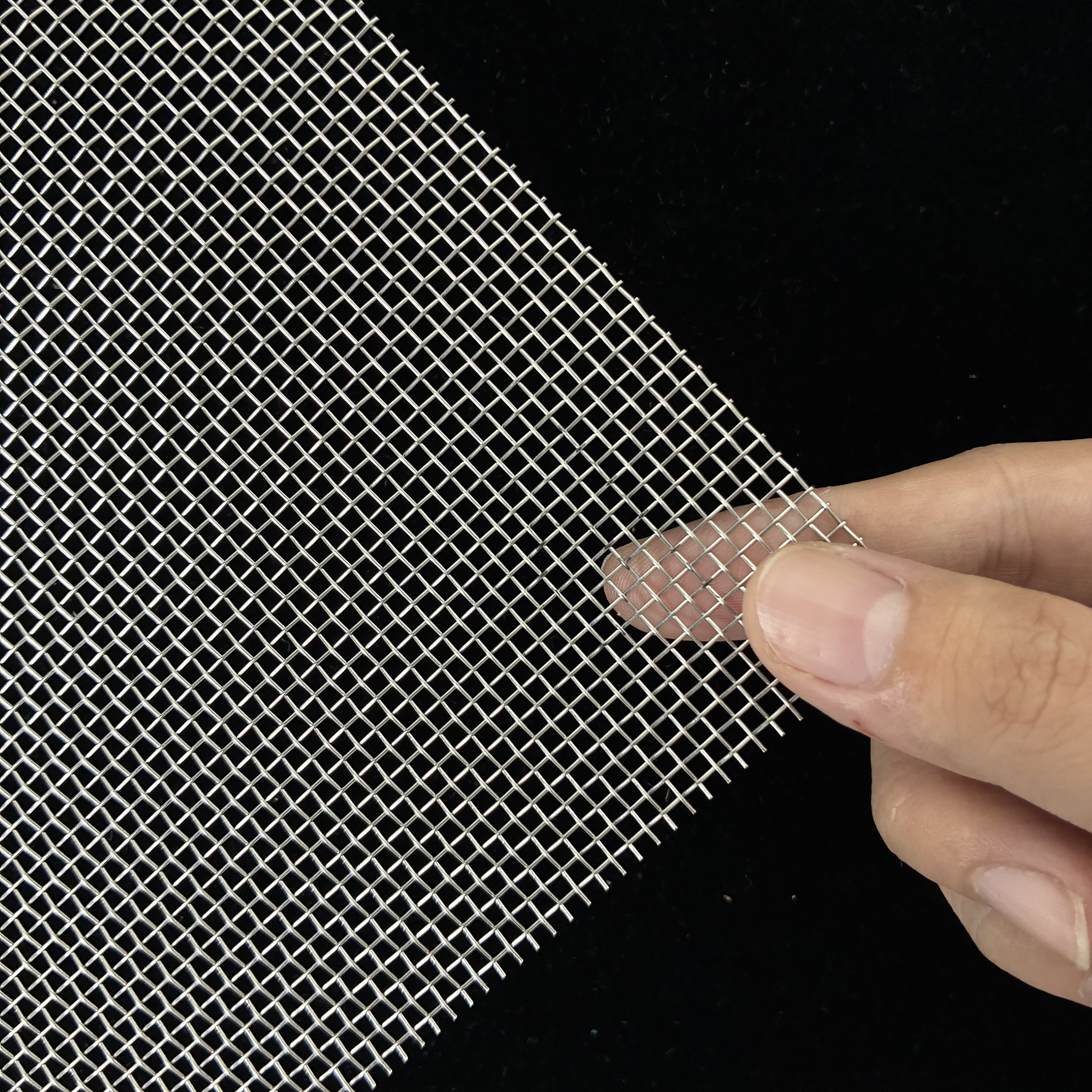

Coarse Mesh（3-40 Mesh）

Medium Mesh（50-100 Mesh）

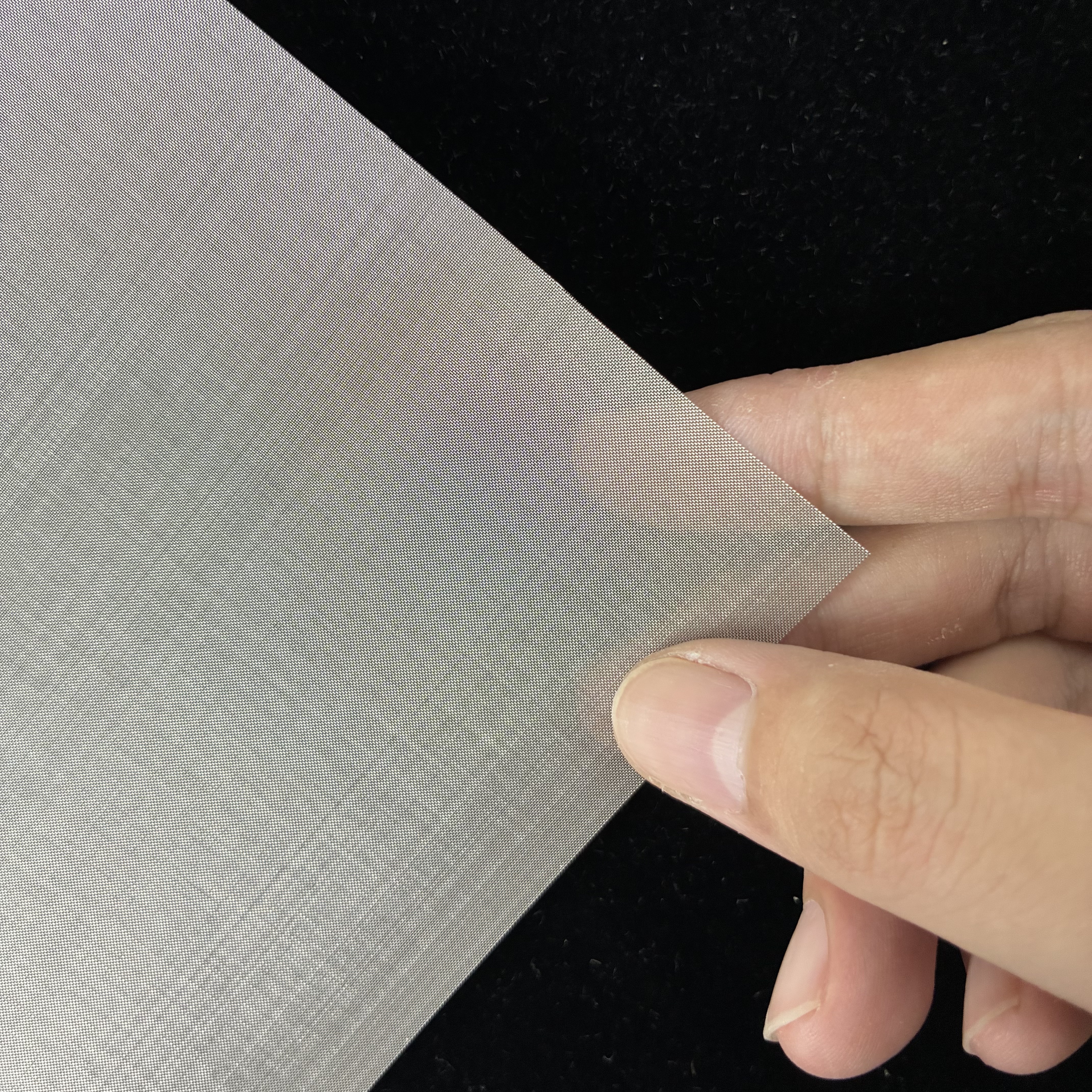

Fine Mesh（120-200 Mesh）

| Material Comparison For Stainless Steel Plain Weave Wire Mesh

Grade	Corrosion Resistance	Application
SS304	Good	General filtration
SS304L	Better weldability	Processing industry
SS316	Excellent	Chemical & Marine
SS316L	Best	Food & Pharmaceutical

| Applications For Stainless Steel Plain Weave Wire Mesh

Plain weave stainless steel wire mesh is widely used in filtration, screening, protection and decoration, thanks to its uniform mesh openings, high open area and stable structure.

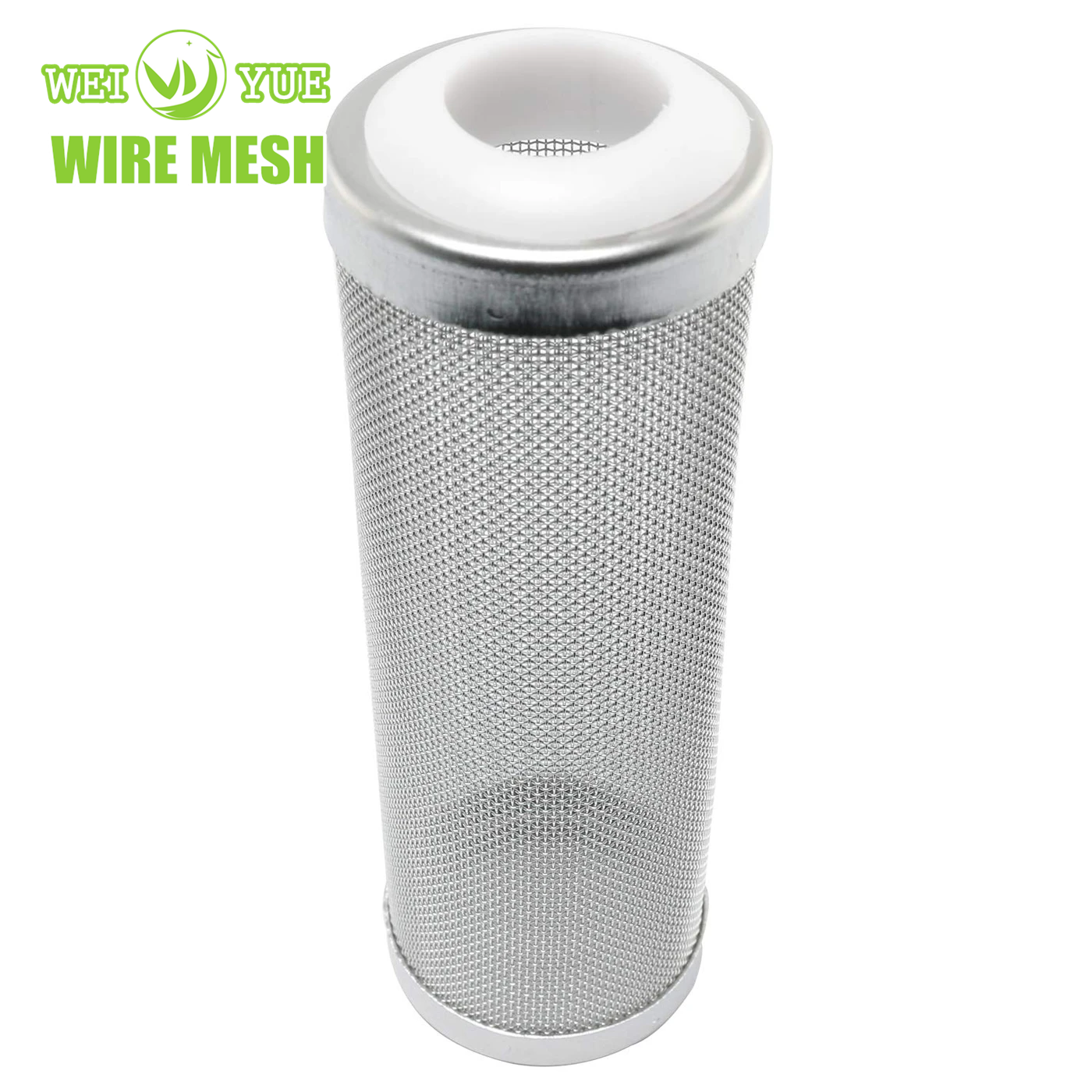

Filtration

Ideal for gas, liquid and oil filtration, filter elements and filter discs. Uniform mesh openings ensure stable filtration accuracy and consistent flow rate.

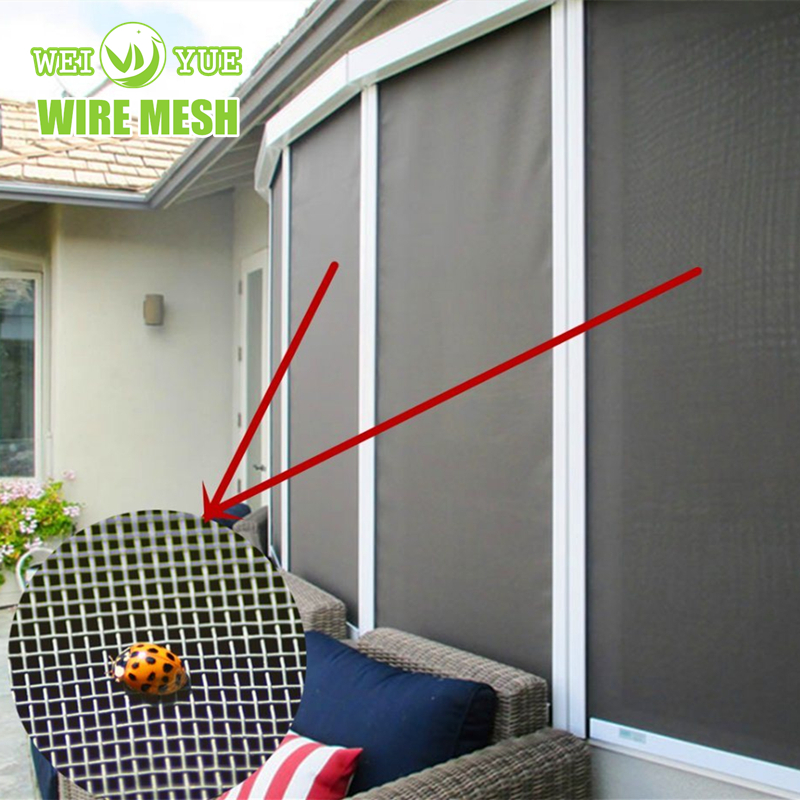

Window Screens
Widely used as insect screens for windows and doors. Corrosion-resistant, smooth surface and durable for long-term outdoor use.

Sieving & Screening
Used for test sieves, powder sieving and particle grading in food, chemical and pharmaceutical industries.

Oil & Chemical Filtration
Used in hydraulic oil, fuel and chemical liquid filtration. Resistant to acid, alkali and high temperature.

Water Treatment
Used for water filtration, sewage treatment and seawater desalination, with high flow rate and efficient particle retention.

| Advantages For Stainless Steel Plain Weave Wire Mesh

1. Uniform Mesh Opening

The warp and weft wires are woven one over one under, creating a precise and uniform square mesh. This ensures stable filtration accuracy and consistent screening results.

2. High Open Area
The plain weave structure provides a high open area, allowing excellent flow rate and high filtration efficiency with low pressure drop.

3. Strong & Durable
Made from 304, 316 and other high-quality stainless steel, the mesh offers high tensile strength, corrosion resistance and long service life.

4. Smooth Surface & Easy to Clean
The smooth surface prevents material from sticking, making the mesh easy to clean and reusable. This reduces maintenance and replacement costs.

5. Custom Specifications
Mesh count, wire diameter, width, length and material can be customized to meet different application requirements.

| Specifications of Plain/ Twill Stainless Steel Wire Mesh

Item	Mesh	Wire Diameter(mm)	Filtration Accuracy(mm)	Weave
WY-1	3	1	7.467	Plain
WY-2	3	1.1	7.367	Plain
WY-3	4	0.6	5.750	Plain
WY-4	4	0.7	5.650	Plain
WY-5	4	0.8	5.550	Plain
WY-6	4	0.9	5.450	Plain
WY-7	5	0.6	4.480	Plain
WY-8	5	0.7	4.380	Plain
WY-9	5	0.8	4.280	Plain
WY-10	5	0.9	4.180	Plain
WY-11	5	1	4.080	Plain
WY-12	6	0.5	3.733	Plain
WY-13	6	0.6	3.633	Plain
WY-14	6	0.7	3.533	Plain
WY-15	6	0.8	3.433	Plain
WY-16	6	0.9	3.333	Plain
WY-17	6	1	3.233	Plain
WY-18	7	0.6	3.029	Plain
WY-19	7	0.8	2.829	Plain
WY-20	8	0.37	2.805	Plain
WY-21	8	0.4	2.775	Plain
WY-22	8	0.45	2.725	Plain
WY-23	8	0.5	2.675	Plain
WY-24	8	0.55	2.625	Plain
WY-25	8	0.6	2.575	Plain
WY-26	8	0.7	2.475	Plain
WY-27	8	0.8	2.375	Plain
WY-28	10	0.35	2.190	Plain
WY-29	10	0.37	2.170	Plain
WY-30	10	0.4	2.140	Plain
WY-31	10	0.45	2.090	Plain
WY-32	10	0.5	2.040	Plain
WY-33	10	0.55	0.990	Plain
WY-34	10	0.6	1.940	Plain
WY-35	10	0.7	1.840	Plain
WY-36	10	0.8	1.740	Plain
WY-37	12	0.3	1.817	Plain
WY-38	12	0.35	1.767	Plain
WY-39	12	0.37	1.747	Plain
WY-40	12	0.4	1.717	Plain
WY-41	12	0.45	1.667	Plain
WY-42	12	0.5	1.617	Plain
WY-43	12	0.55	1.567	Plain
WY-44	12	0.6	1.517	Plain
WY-45	12	0.7	1.417	Plain
WY-46	14	0.27	1.544	Plain
WY-47	14	0.3	1.514	Plain
WY-48	14	0.35	1.464	Plain
WY-49	14	0.37	1.444	Plain
WY-50	14	0.4	1.414	Plain
WY-51	14	0.45	1.364	Plain
WY-52	14	0.5	1.314	Plain
WY-53	14	0.55	1.264	Plain
WY-54	14	0.6	1.214	Plain
WY-55	16	0.25	1.338	Plain
WY-56	16	0.27	1.318	Plain
WY-57	16	0.3	1.288	Plain
WY-58	16	0.35	1.238	Plain
WY-59	16	0.37	1.218	Plain
WY-60	16	0.4	1.188	Plain
WY-61	16	0.45	1.138	Plain
WY-62	16	0.5	1.088	Plain
WY-63	16	0.6	0.988	Plain
WY-64	18	0.23	1.181	Plain
WY-65	18	0.25	1.161	Plain
WY-66	18	0.27	1.141	Plain
WY-67	18	0.3	1.111	Plain
WY-68	18	0.35	1.061	Plain
WY-69	18	0.37	1.041	Plain
WY-70	18	0.4	1.011	Plain
WY-71	18	0.45	0.961	Plain
WY-72	18	0.5	0.911	Plain
WY-73	18	0.6	1.811	Plain
WY-74	20	0.19	1.080	Plain
WY-75	20	0.21	1.060	Plain
WY-76	20	0.23	1.040	Plain
WY-77	20	0.25	1.020	Plain
WY-78	20	0.27	1.000	Plain
WY-79	20	0.3	0.970	Plain
WY-80	20	0.35	0.920	Plain
WY-81	20	0.37	0.900	Plain
WY-82	20	0.4	0.870	Plain
WY-83	20	0.45	0.820	Plain
WY-84	20	0.5	0.770	Plain
WY-85	20	0.55	0.720	Plain
WY-86	22	0.21	0.945	Plain
WY-87	22	0.23	0.925	Plain
WY-88	22	0.25	0.905	Plain
WY-89	22	0.27	0.885	Plain
WY-90	22	0.3	0.855	Plain
WY-91	22	0.35	0.805	Plain
WY-92	22	0.4	0.755	Plain
WY-93	24	0.21	0.848	Plain
WY-94	24	0.23	0.828	Plain
WY-95	24	0.25	0.808	Plain
WY-96	24	0.27	0.788	Plain
WY-97	24	0.3	0.758	Plain
WY-98	24	0.35	0.708	Plain
WY-99	24	0.4	0.658	Plain

WY-100	24	0.45	0.608	Plain
WY-101	26	0.25	0.727	Plain
WY-102	26	0.27	0.707	Plain
WY-103	26	0.3	0.677	Plain
WY-104	26	0.35	0.627	Plain
WY-105	28	0.23	0.677	Plain
WY-106	28	0.27	0.637	Plain
WY-107	28	0.3	0.607	Plain
WY-108	30	0.17	0.677	Plain
WY-109	30	0.19	0.657	Plain
WY-110	30	0.21	0.637	Plain
WY-111	30	0.23	0.617	Plain
WY-112	30	0.25	0.597	Plain
WY-113	30	0.27	0.577	Plain
WY-114	30	0.3	0.547	Plain
WY-115	30	0.35	0.497	Plain
WY-116	30	0.4	0.447	Plain
WY-117	32	0.17	0.624	Plain
WY-118	32	0.23	0.564	Plain
WY-119	34	0.23	0.517	Plain
WY-120	35	0.33	0.396	Plain
WY-121	40	0.13	0.505	Plain
WY-122	40	0.15	0.485	Plain
WY-123	40	0.17	0.465	Plain
WY-124	40	0.18	0.455	Plain
WY-125	40	0.19	0.445	Plain
WY-126	40	0.21	0.425	Plain
WY-127	40	0.23	0.405	Plain
WY-128	40	0.25	0.385	Plain
WY-129	40	0.27	0.365	Plain
WY-130	40	0.3	0.335	Twill
WY-131	42	0.15	0.445	Plain
WY-132	45	0.15	0.414	Plain
WY-133	50	0.13	0.378	Plain
WY-134	50	0.15	0.358	Plain
WY-135	50	0.17	0.338	Plain
WY-136	50	0.18	0.328	Plain
WY-137	50	0.19	0.318	Plain
WY-138	50	0.21	0.298	Plain
WY-139	50	0.23	0.278	Plain
WY-140	60	0.09	0.333	Plain
WY-141	60	0.1	0.323	Plain
WY-142	60	0.11	0.313	Plain
WY-143	60	0.12	0.303	Plain
WY-144	60	0.13	0.293	Plain
WY-145	60	0.14	0.283	Plain
WY-146	60	0.15	0.273	Plain
WY-147	60	0.17	0.253	Plain
WY-148	60	0.18	0.243	Plain
WY-149	60	0.19	0.233	Plain
WY-153	70	0.1	0.263	Plain
WY-154	70	0.12	0.243	Plain
WY-155	70	0.13	0.233	Plain
WY-156	70	0.14	0.223	Plain
WY-157	70	0.15	0.213	Plain
WY-158	80	0.09	0.228	Plain
WY-159	80	0.1	0.218	Plain
WY-160	80	0.11	0.208	Plain
WY-161	80	0.12	0.198	Plain
WY-162	80	0.13	0.188	Plain
WY-163	80	0.14	0.178	Plain
WY-166	90	0.09	0.192	Plain
WY-167	90	0.1	0.182	Plain
WY-168	90	0.11	0.172	Plain
WY-169	90	0.12	0.162	Plain
WY-170	100	0.07	0.184	Plain
WY-171	100	0.08	0.174	Plain
WY-172	100	0.09	0.164	Plain
WY-173	100	0.1	0.154	Plain
WY-174	100	0.11	0.144	Plain
WY-175	100	0.12	0.134	Plain
WY-176	100	0.13	0.124	Plain
WY-177	110	0.07	0.161	Plain
WY-178	110	0.08	0.151	Plain
WY-179	110	0.09	0.141	Plain
WY-180	120	0.07	0.142	Plain
WY-181	120	0.08	0.132	Plain
WY-182	120	0.09	0.122	Plain
WY-183	130	0.07	0.125	Plain
WY-184	140	0.06	0.121	Plain
WY-185	140	0.07	0.111	Plain
WY-186	150	0.06	0.109	Plain
WY-187	150	0.07	0.099	Plain
WY-188	160	0.06	0.099	Plain
WY-189	180	0.05	0.091	Plain
WY-191	200	0.05	0.077	Plain
WY-193	200	0.06	0.067	Plain
