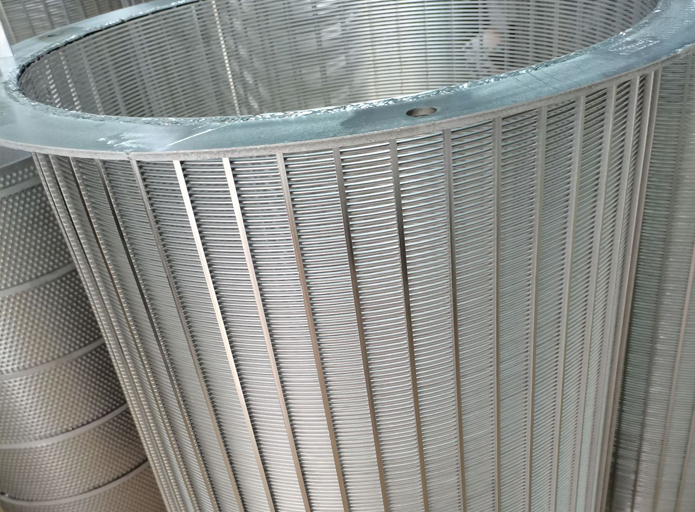

Wedge wire
Welded slotted sieves are the main and the most technologically advanced line of our products.They are reliable for using in numerous filtration processes for solid and liquid particles. We manufacture them from profiled wires of high quality stainless and acid-proof steel. The technology of electrofusion used for joining profiled wires for a set of supporting rods lets us obtain extremely precise dimensions of apertures.
They work extremely well both in static structures, as well as dynamic ones, providing optimal effectiveness of a process even in tough and aggressive work environment. Depending on individual applications, our company offers flat welded or round welded sieves of different size and shape, types of fittings, with a possibility to join individual elements into larger segments.
Materials: 304, 302, 304L, 316, 316L stainless steel wire, Duplex SS, Supper Duplex SS.
Specification:
-Filtration rate: 15-800μm
-OD: 25.4-1200mm, Length: 6 meter(no splice)
-Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-The slot: 0.1mm-45mm
-Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
-The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.
-Height 6-40 mm
-The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
-Slot filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-Styles of connection: by welding or by threaded male/female coupling.
-Hanke Filter can be customized by your demands.
