WYPMM5
WEIYUE
72230000

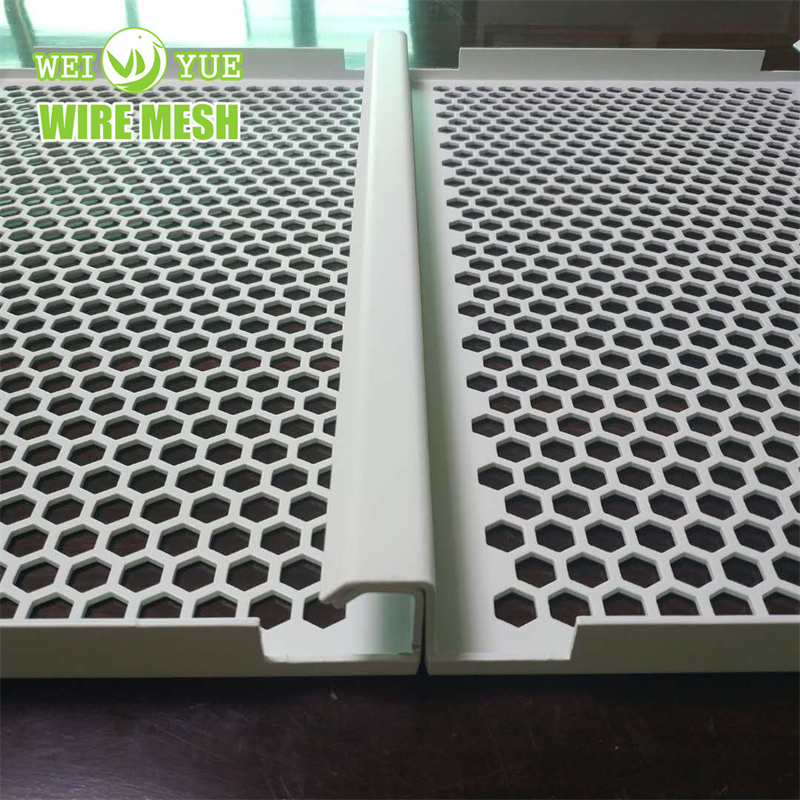

HEXAGONAL PERFORATION
Maximum ventilation
The need for effective cooling is increasing for many technical products. Flexible solutions and innovative products like our hexagonal perforation patterns are the answer.
Material | Mild Steel, Galvanized Steel, Aluminium, Stainless Steel, Corten Steel etc. |
Specifications | Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate |

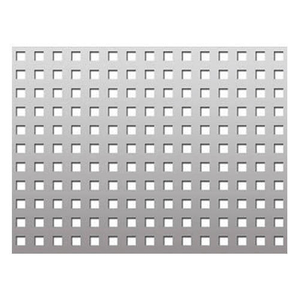

Hole Pattern | Round hole, Square hole, Slotted hole, Decorative hole, Architectural hole etc. |
Thickness | 0.5mm-4mm (additional thickness are available on request) |
Hole size | 2mm-50mm (other hole sizes are also available) |
Arrangement Mode | straight row, staggered |
Margins | Finished end Pattern, Unfinished end Pattern, No Margin |
Width | 1m, 1.22m,1.5m, 2m etc. |
Length | 2m, 2.44m, 3m etc. |
sheet size | 1m*2m, 1.22m*2.44m, 1.5m*3m(additional sizes are available on request) |
Application | security, sifting, machinery guards, enclosures, sign panels, noise reduction etc. |
Note | Perforations must be the same or larger in size than the material thickness. |

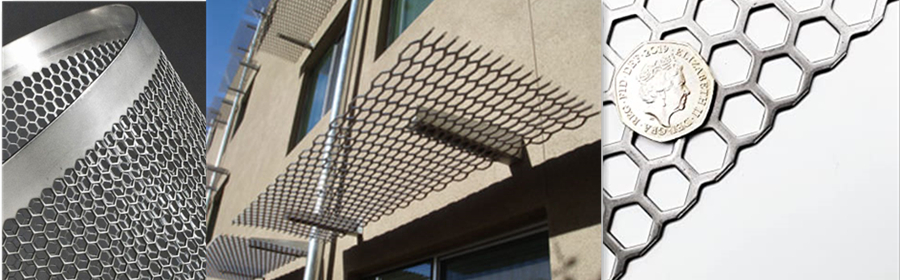

Our hexagonal perforation provides an extremely high open area of up to 85%. Sheets with holes of this configuration are very lightweight. The stability of the parent material is of the utmost importance to maintain the shape of a honeycomb structure. This pattern produces an appealing, timeless design suitable for current and future product applications.
The ability to control airflow can be used not only for cooling, but also the opposite effect using a targeted heat supply.
Ordering Perforated Metal Mesh
When ordering perforated sheet, we ask that you specify the following options:
Material type
Thickness (gauge)
Hole size
Hole shape
Spacing & configuration
Perforated sheet size
Quantity
