WYPMM5
WEIYUE
72230000

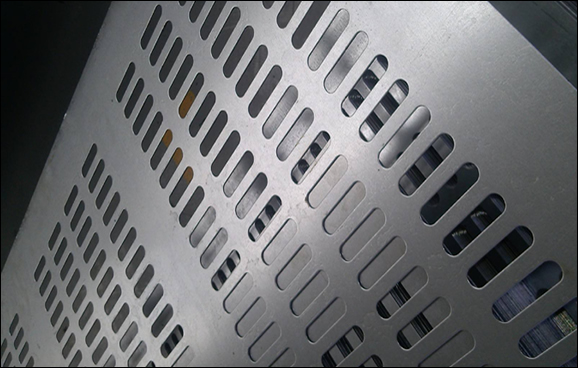

SLOT HOLE PERFORATION

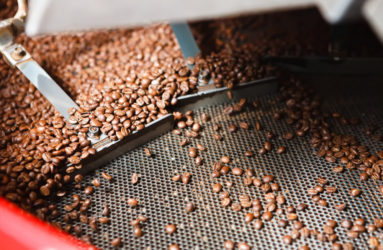

Slot hole perforations can have either round ends or square ends (rectangular holes) and are typically used for sieves.
Depending on the application requirements there are a range of slotted holes and patterns e.g staggered or straight rows, herring bone and chessboard from which to select.
Material | Mild Steel, Galvanized Steel, Aluminium, Stainless Steel, Corten Steel etc. |
Specifications | Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate |
Hole Pattern | Round hole, Square hole, Slotted hole, Decorative hole, Architectural hole etc. |
Thickness | 0.5mm-4mm (additional thickness are available on request) |
Hole size | 2mm-50mm (other hole sizes are also available) |
Arrangement Mode | straight row, staggered |
Margins | Finished end Pattern, Unfinished end Pattern, No Margin |
Width | 1m, 1.22m,1.5m, 2m etc. |
Length | 2m, 2.44m, 3m etc. |
sheet size | 1m*2m, 1.22m*2.44m, 1.5m*3m(additional sizes are available on request) |

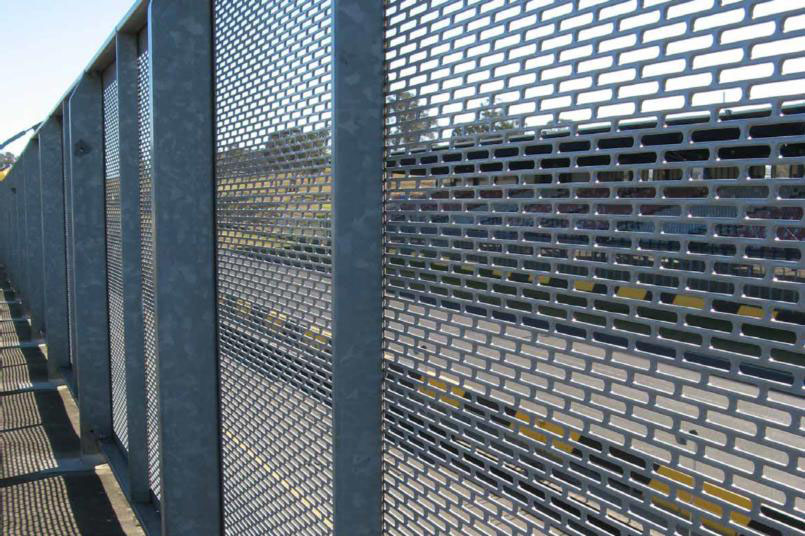

Application | security, sifting, machinery guards, enclosures, sign panels, noise reduction etc. |
Note | Perforations must be the same or larger in size than the material thickness. |

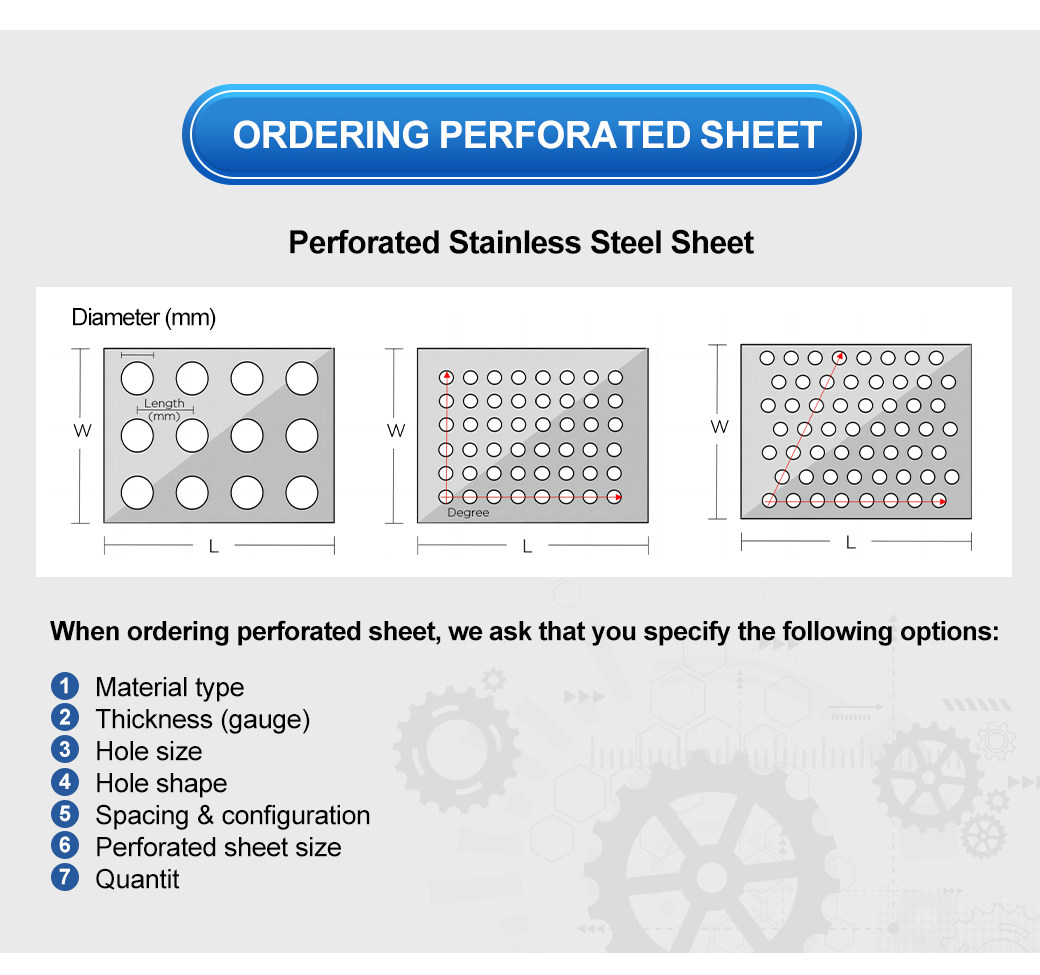

Hole Arrangement
Benefitis Include
Perforated metals can be readily formed
Painted or powder coated
Easily installed
Attractive in appearance
A wide range of thickness available
Excellent longevity and durability
Custom cut sizes available to make field fitting quick and easy
Custom boarders available to minimize edge trims and cutting through a hole or pattern
Many metals to choose from which saves additional finishing costs Perforated metal panels can easily be made to site-specific requirements meaning customization is infinite and mixing different types of metals is ideal to enhance both new construction and remodeling. Perforated metal panels are perfect for interior design. The result is an open area that provides an airy aesthetic that controls light and air movement, while elegantly blending industrial and other applications with their surroundings.
