304 and 316 stainless steel are both widely used for ultra fine filter mesh, but they are not interchangeable labels for every application. The correct grade depends on what the mesh sees in service: the process medium, chlorides, temperature, cleaning chemicals, geometry, welding, and the cost of a corrosion-related failure. A finer filter mesh makes this decision more consequential because its thin wires, packed weave, and fabricated joints can be the most exposed parts of an assembly. This guide explains the practical difference without reducing grade selection to a one-line rule.
304 stainless steel mesh is a common choice for many compatible, moderately corrosive filtration duties.
316 stainless steel mesh includes molybdenum and is commonly considered when chloride-containing or more corrosive environments require additional resistance.
316L is a low-carbon 316 variant that is often considered when welding and corrosion performance around welded areas are important.
Alloy grade does not replace a compatibility review: concentration, temperature, oxygen, deposits, crevices, and cleaning cycles all matter.
Both grades are austenitic stainless steels and are available as woven wire cloth. In broad terms, 304 is chromium-nickel stainless steel, while 316 adds molybdenum. That added alloying element is one reason engineers often investigate 316 for applications involving chlorides or more demanding chemical conditions. However, “more resistant” is not the same as “immune.” A process containing a chloride salt, acid, or oxidising cleaner can behave very differently as concentration and temperature change.
For the buyer of an ultra fine filter mesh, the meaningful question is not “Which grade is better?” It is “Which grade offers an acceptable service life and contamination risk for this specific filter design?” A food product, water-based wash, solvent, brine, acidic batch, alkaline cleaner, and slurry can all produce different answers. An appropriate choice must be confirmed against the full process condition, including worst-case cleaning and shutdown conditions.
Wire cloth is not a solid plate. It contains many intersections, voids, and surfaces that can retain deposits. Fine mesh also uses smaller wire diameters than coarse screen, so local attack or handling damage can have a larger functional effect. When the cloth is made into a disc, basket, tube, or pleated element, welded seams and supports add more locations to evaluate.
This does not mean fine cloth is inherently fragile. It means the specification should include the entire assembly. State the wire material, weave, opening or pore requirement, wire diameter, support cloth, joint method, passivation or cleaning requirement where applicable, and inspection plan. If a filter will operate in a vessel where it cannot be inspected easily, the cost of a more suitable grade may be small relative to maintenance or lost production.
304 stainless steel mesh is frequently used in filtration, screening, protection, and separation where the environment is compatible with the alloy. It offers a practical combination of corrosion resistance, formability, availability, and cost for many industrial duties. For a dry powder screen, a compatible process liquid, or an indoor filtration task without aggressive chloride exposure, 304 may be a reasonable starting point.
The key word is “starting.” A grade can perform well in a simple laboratory exposure and still be challenged in a production environment where hot cleaning solutions, deposits, stagnant areas, or repeated wet-dry cycles occur. If a 304 element will be welded, formed tightly, or retained in a crevice-prone holder, document those features in the review. A material decision based only on the bulk liquid name may miss the actual local environment at the mesh surface.
316 stainless steel mesh is often considered when the filtration duty has a higher corrosion burden, particularly where chloride-containing service is relevant. The added molybdenum changes the alloy’s corrosion-resistance profile, but it is not a universal solution to aggressive conditions. Hot or concentrated chlorides, unsuitable cleaning chemicals, low-oxygen crevices, and deposits can still require more detailed material engineering or a different solution.
Choose 316 when the operating case supports it rather than as a default upgrade. It may be a sound choice for chemical processes, marine-adjacent exposure, or chloride-bearing streams where the compatibility review demonstrates an advantage. It can also be appropriate when the cost of contamination, premature replacement, or unplanned shutdown is high. Conversely, specifying 316 for a mild dry duty with no corrosion driver may add cost without improving the outcome.
316L is the low-carbon form of 316. It is commonly evaluated when fabrication includes welding because low carbon content can be advantageous in managing sensitisation concerns associated with certain thermal histories. That does not mean every woven cloth or every welded filter must be 316L. The decision remains tied to the weld procedure, the service environment, post-fabrication treatment, and the required life of the finished part.
For a filter made from ultra fine cloth, ask whether the mesh will be resistance-welded to a ring, seam-welded into a cylinder, diffusion-bonded into a multilayer structure, or mechanically clamped. Each approach exposes the material differently. Share drawings and service details with the manufacturer before selecting 316L solely by convention.
Criterion | 304 | 316 | 316L |
Typical selection basis | Compatible general service | Added corrosion-resistance margin where justified | 316-grade service with welding considerations |
Molybdenum addition | No | Yes | Yes |
Low-carbon designation | No | No | Yes |
Fabrication review | Needed | Needed | Especially relevant for welded assemblies |
Correct final choice | Based on compatibility | Based on compatibility | Based on compatibility and fabrication |
The table is not a chemical-compatibility chart. It is a way to organise a specification discussion. It cannot predict corrosion performance for a fluid without its composition, temperature, concentration, contaminants, flow conditions, and cleaning procedure.
Begin with a process data sheet. Identify every contact material: product, carrier fluid, additives, wash water, cleaning-in-place chemicals, sanitiser, steam if applicable, and atmospheric exposure. Include minimum and maximum temperature, normal and upset concentration, pH where meaningful, pressure, exposure time, and whether deposits form. Then document the filter geometry: flat disc, basket, cylinder, tube, pleated pack, or multi-layer laminate.
Next, identify the dominant failure concern. Is it general corrosion, pitting, crevice attack, stress-related damage, contamination by corrosion products, loss of aperture control, or a weld-zone problem? A well-defined concern makes the evaluation shorter and more accurate. When service is critical, use a documented materials-compatibility assessment and, where appropriate, a representative exposure or pilot test.
The alloy controls material behaviour; it does not select the opening. An ultra fine filter mesh also needs the correct pore or aperture size, weave, wire diameter, open area, active area, and support design. A 316 mesh with an unsuitable opening will not meet the separation requirement. A 304 mesh with a correctly sized opening may meet filtration performance but fail prematurely if the environment is incompatible.

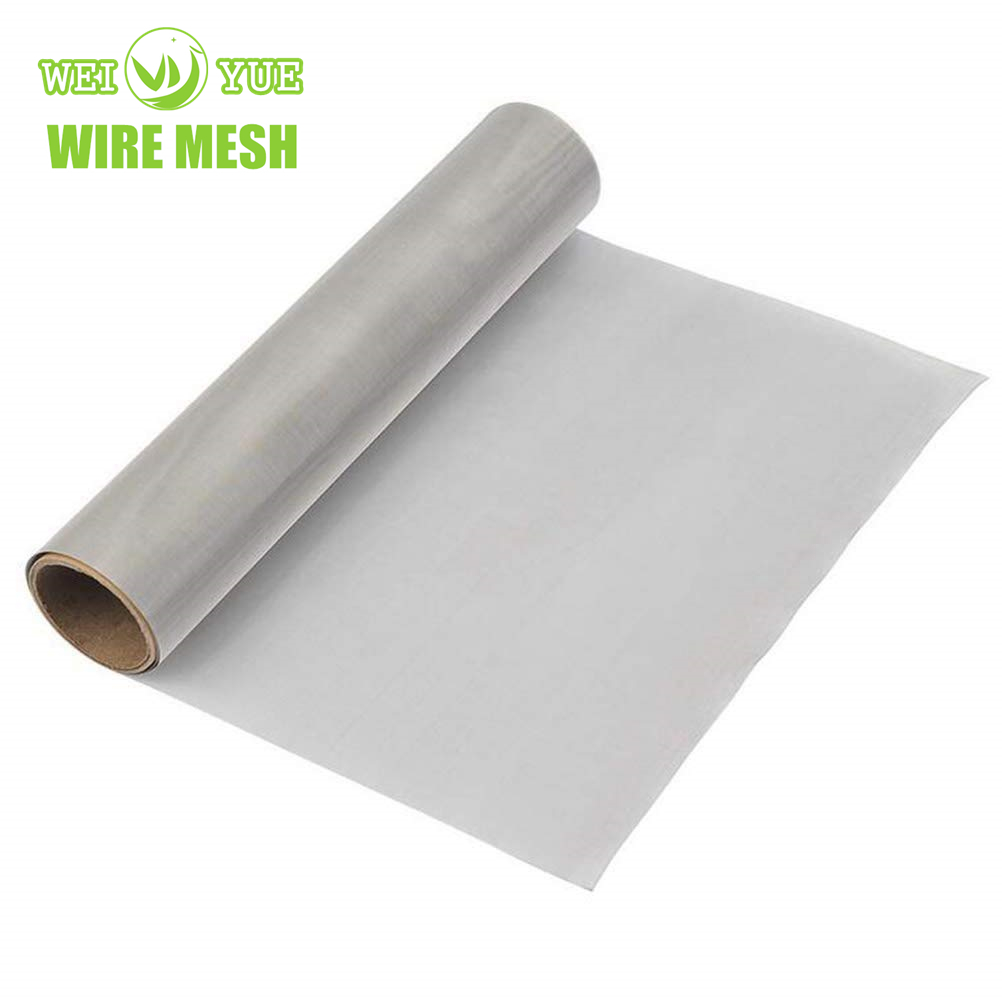

Weiyue’s ultra fine stainless steel filter mesh is listed in 304 and 316 options, with multiple weave constructions. The product data shows why aperture and weave should travel with grade in the purchase specification. For example, a Dutch weave can create a finer, more tortuous filtration path than a square-opening cloth; it should be evaluated for flow and cleanability, not chosen by alloy alone.
Fine mesh is often converted into a usable component rather than installed as a loose sheet. Cutting, forming, welding, folding, and handling can affect the final filter. Specify that cut edges must be suitable for the intended frame or seal. If the element needs support, state the support material and its relationship to the filtration layer. If a welded joint is in the wetted path, include it in the material evaluation.
Cleaning can be as important as process exposure. A mesh that sees a mild product may still be challenged by a hot cleaner or a retained cleaning residue. Avoid selecting cleaning chemicals by habit. Confirm concentration, contact time, temperature, rinse quality, and drying practice with the process owner. Mechanical cleaning must also be appropriate for the wire size and weave. Aggressive brushing can distort fine cloth, while incomplete cleaning can narrow effective openings or create sites for deposit formation.
Request a quotation with the following minimum information: required retention or aperture; mesh construction; alloy grade; wire diameter; sheet, roll, disc, cylinder, or basket geometry; tolerances; active filtration area; support layers; edge or seam design; maximum working conditions; cleaning method; inspection documentation; and quantity. If a grade change is being considered, attach the process data sheet and identify whether the change applies to the filtration layer, support, frame, weld filler, or the complete assembly.

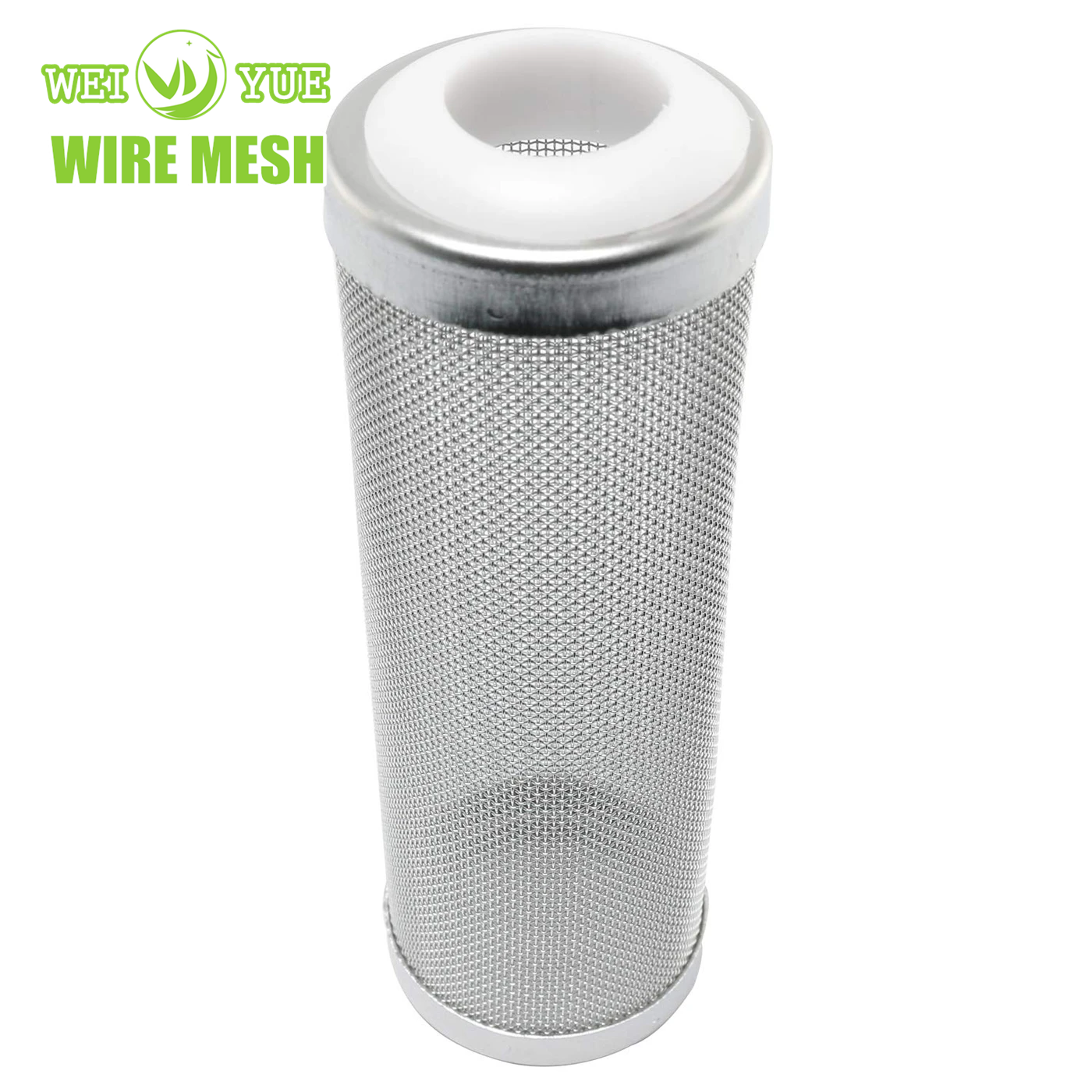

For special shapes, Weiyue can also supply filter products. Early discussion of the fabricated geometry is worthwhile because it can prevent a correct wire cloth from being paired with an unsuitable support or joint.
Before releasing a grade specification, conduct a short cross-functional review. Procurement should confirm that the quoted grade, wire diameter, weave, and part drawing match the approved requirement. Process engineering should confirm that flow, pressure, temperature, and cleaning conditions match the operating envelope used in the evaluation. Quality should define what evidence accompanies the lot and what receiving checks apply. Maintenance should confirm that the element can be installed, removed, and inspected without damaging the fine cloth.
It is also useful to distinguish a material certificate from a complete functional qualification. A certificate can identify the material supplied, but it does not prove that a formed disc, welded cylinder, or supported element will meet a specific service life. Functional confidence comes from the combined evidence: correct material, controlled fabrication, representative trial, and controlled operation. This distinction helps teams avoid both under-specifying a safety-critical duty and adding unnecessary requirements to a simple compatible service.
When there is uncertainty between 304 and 316, run the comparison against the worst credible service condition rather than a favourable normal condition. Include cleaning and idle periods, because retained residue in a warm, stagnant area can be more demanding than a flowing process stream. Documenting the assumption is valuable even if the review confirms that 304 is adequate; it makes the next replacement or process change easier to assess.
304, 316, and 316L ultra fine filter mesh each have valid roles. 304 is often appropriate for compatible general service; 316 is commonly evaluated when added corrosion resistance is justified; and 316L can be relevant when welding is part of the assembly and service demands support that choice. The defensible selection comes from the process environment and fabricated design, not a generic hierarchy of stainless grades. Specify the alloy together with the mesh construction, filtration target, and cleaning regime to achieve durable, reliable filtration.
316 is commonly selected for added corrosion resistance in certain environments, particularly those involving chlorides, but neither grade is universally resistant to every chemical, concentration, or temperature.
Ask when the filter design includes welding and the service, fabrication procedure, and corrosion assessment support the low-carbon variant. Do not select it only because a part has any weld.
No. Micron rating is controlled by cloth construction and opening or pore pathway. Alloy selection addresses material compatibility and durability.
It may be appropriate in compatible food-process conditions, but the decision must include product chemistry, cleaning chemicals, temperature, hygiene procedures, and local regulatory requirements.
Provide the complete fluid or powder description, concentrations, temperature range, cleaning regime, exposure time, filter geometry, weld details, and required service life.
No. A fabricated part adds edges, supports, welds, seals, and crevices. These should be evaluated alongside the base mesh material.
