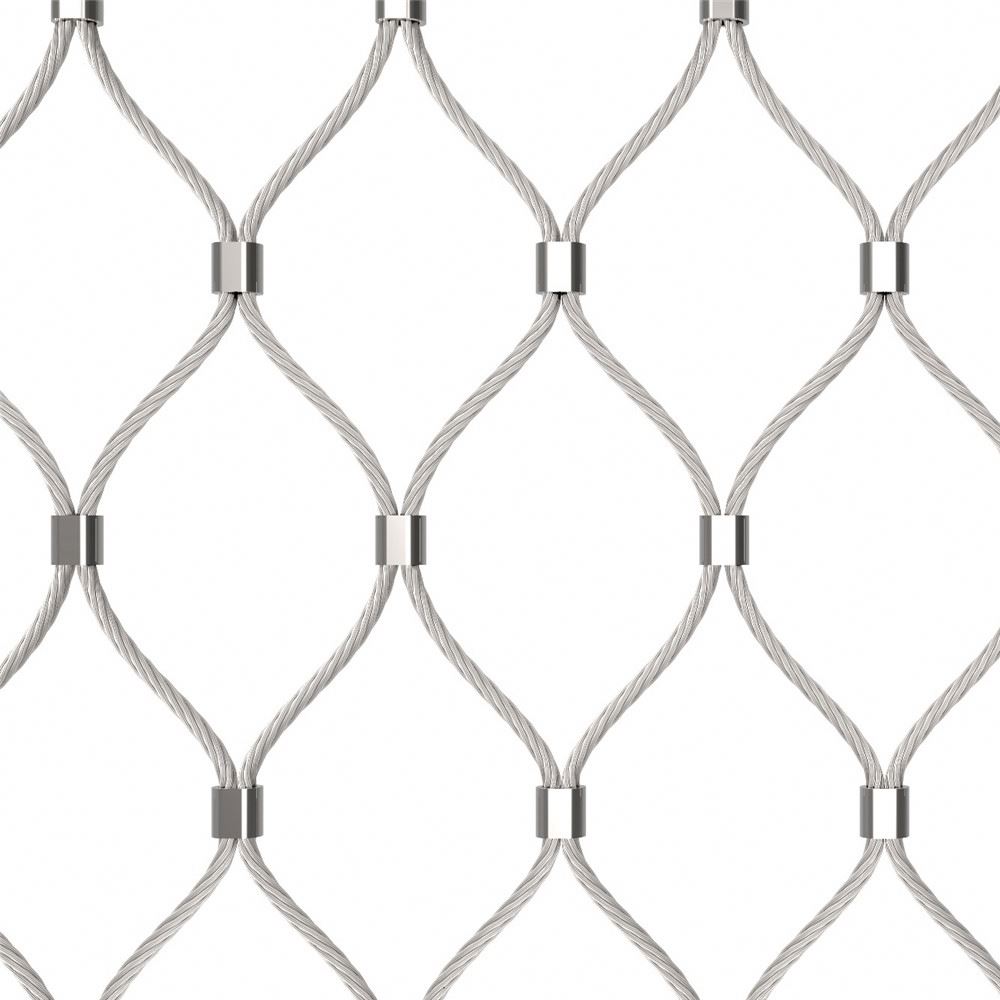

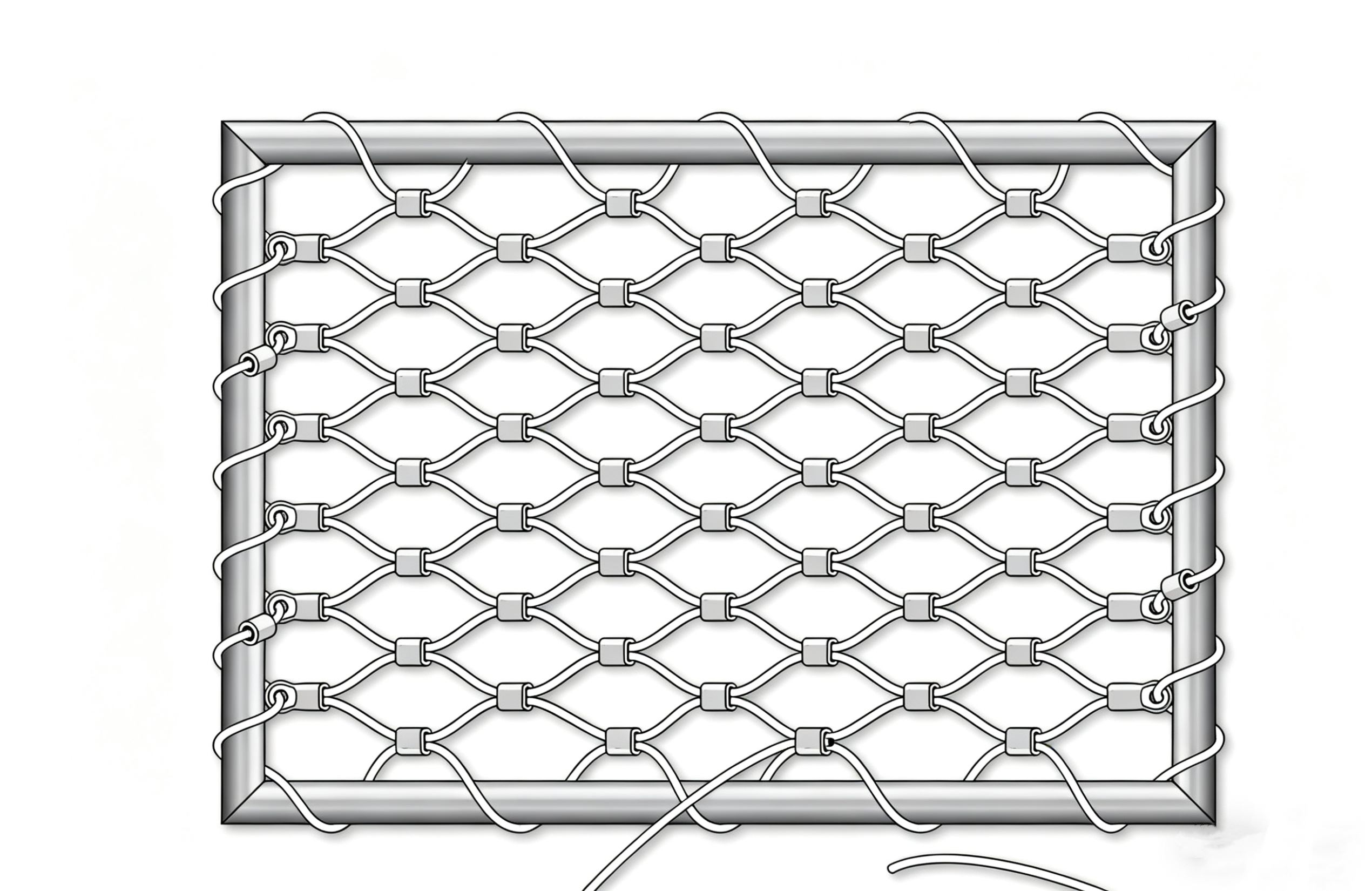

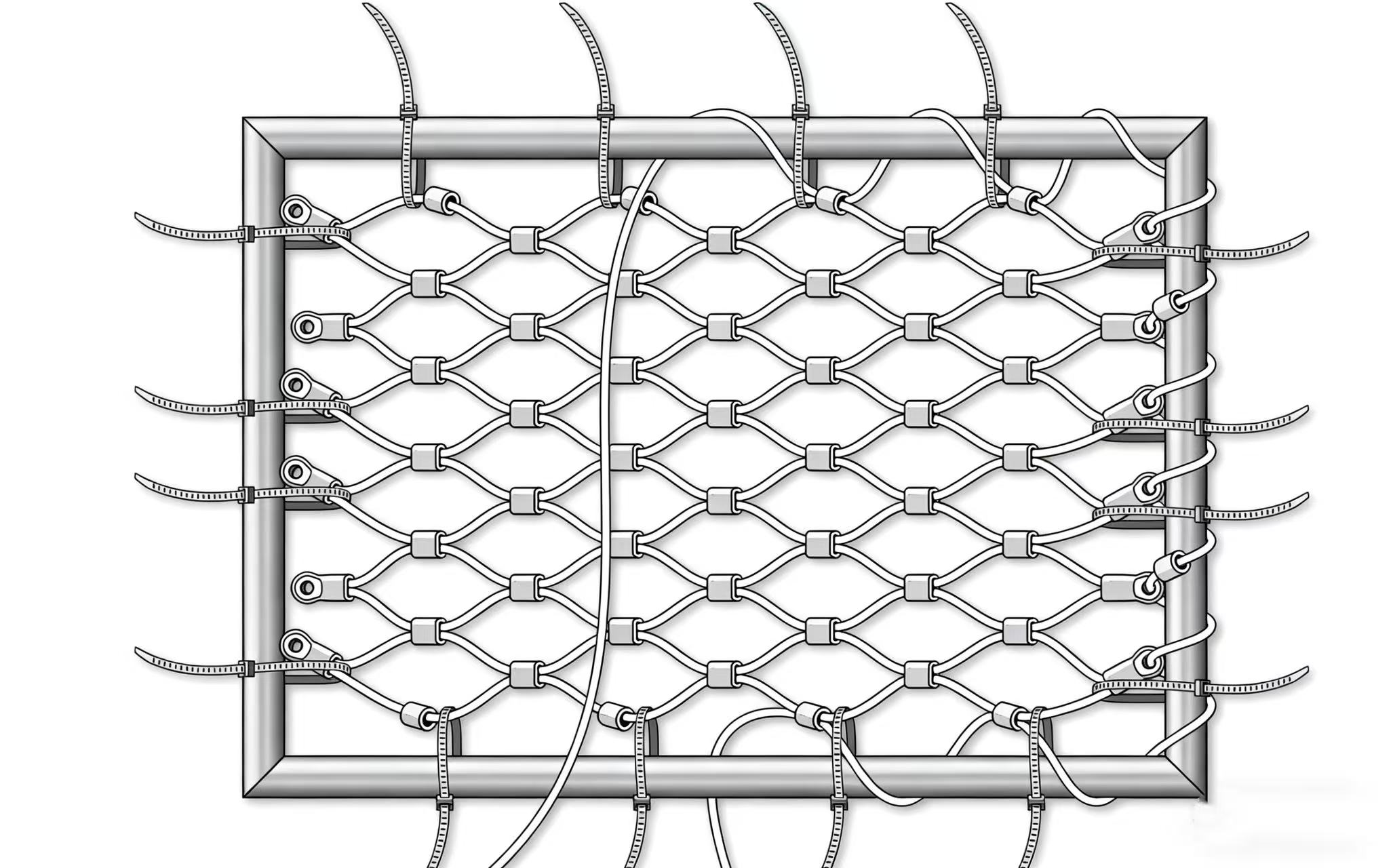

Stainless steel, a versatile material with elegance and robustness, has inspired architectural designers for projects of all kinds. Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.

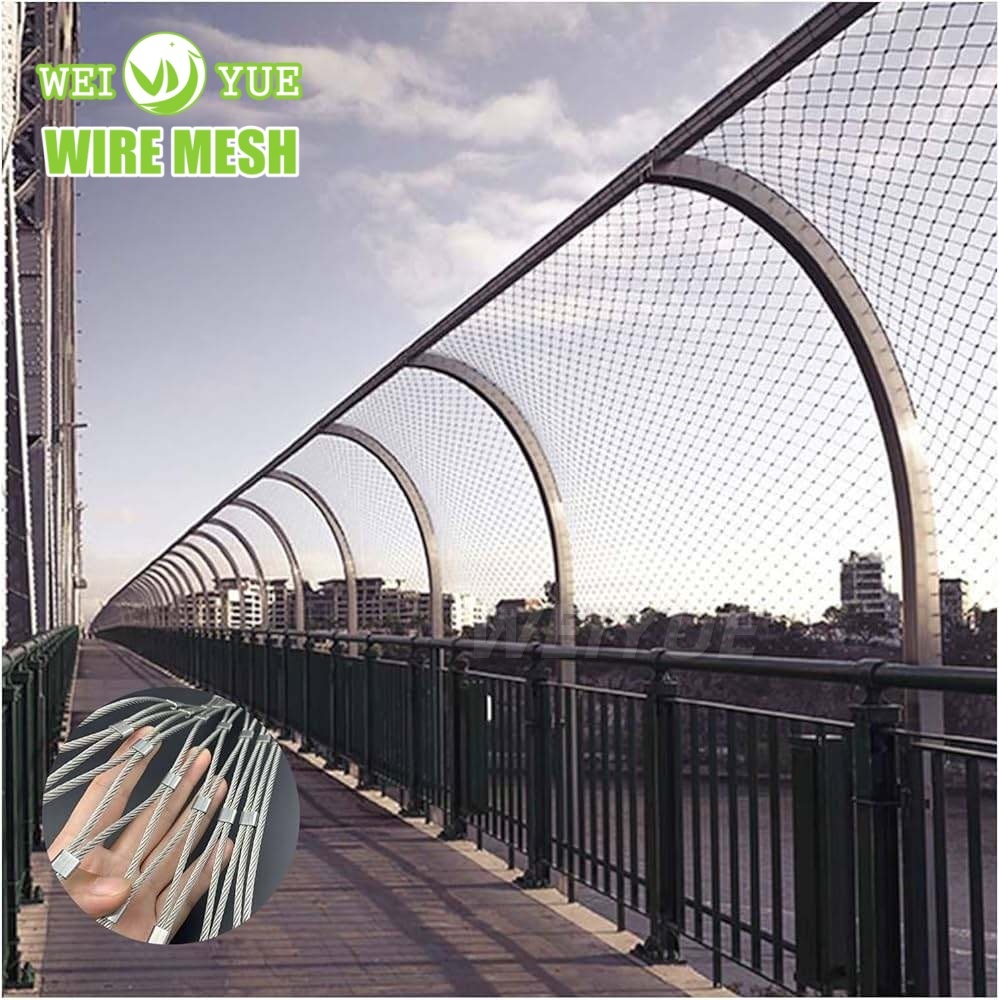

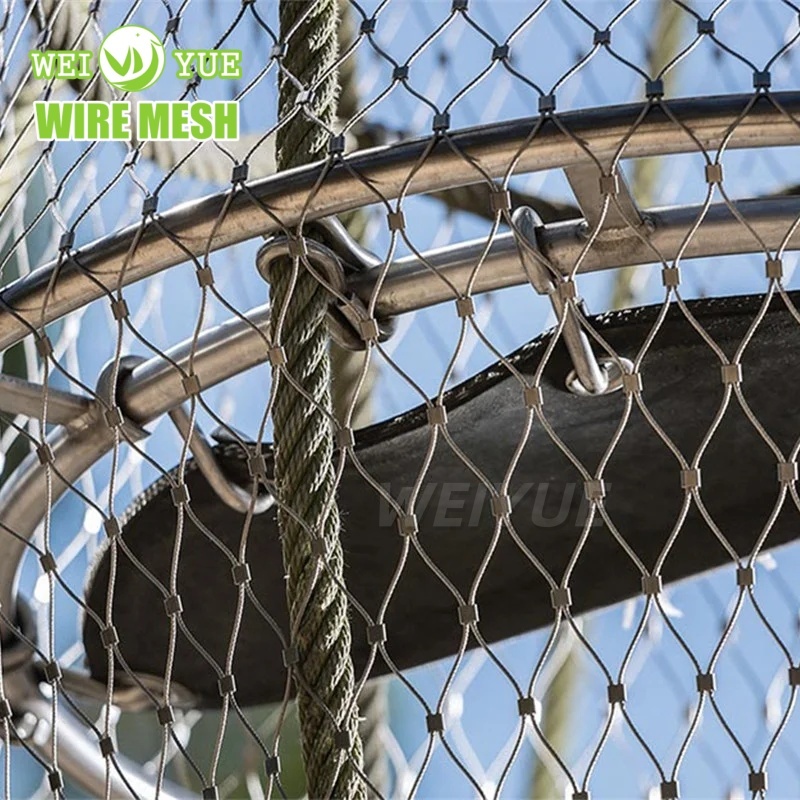

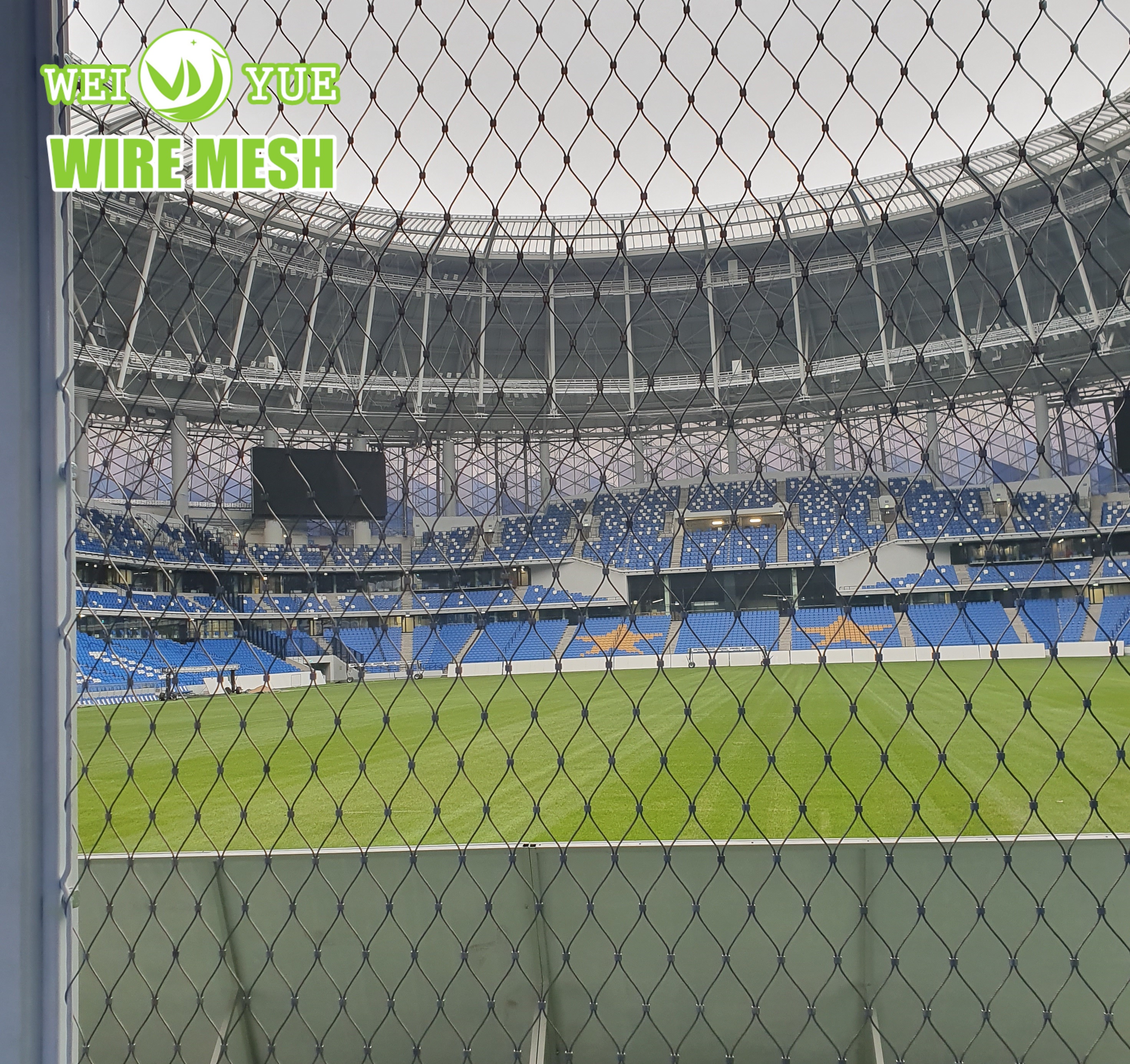

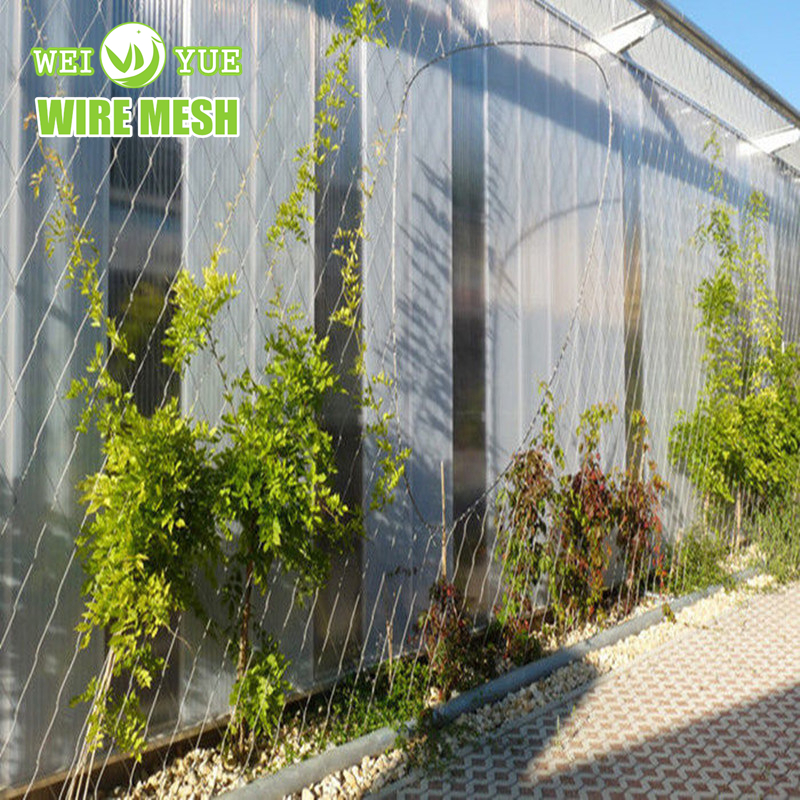

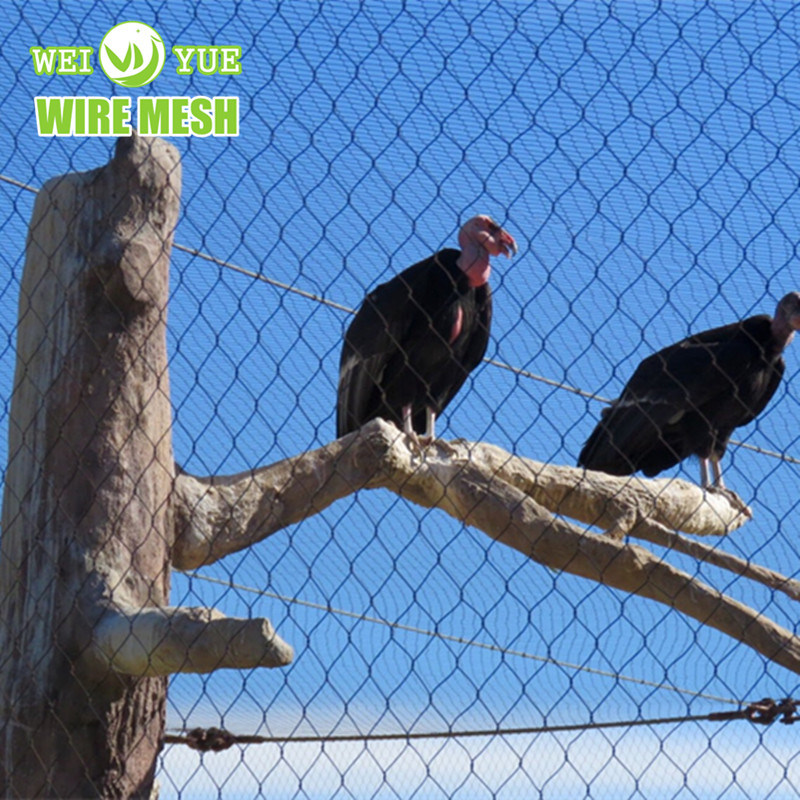

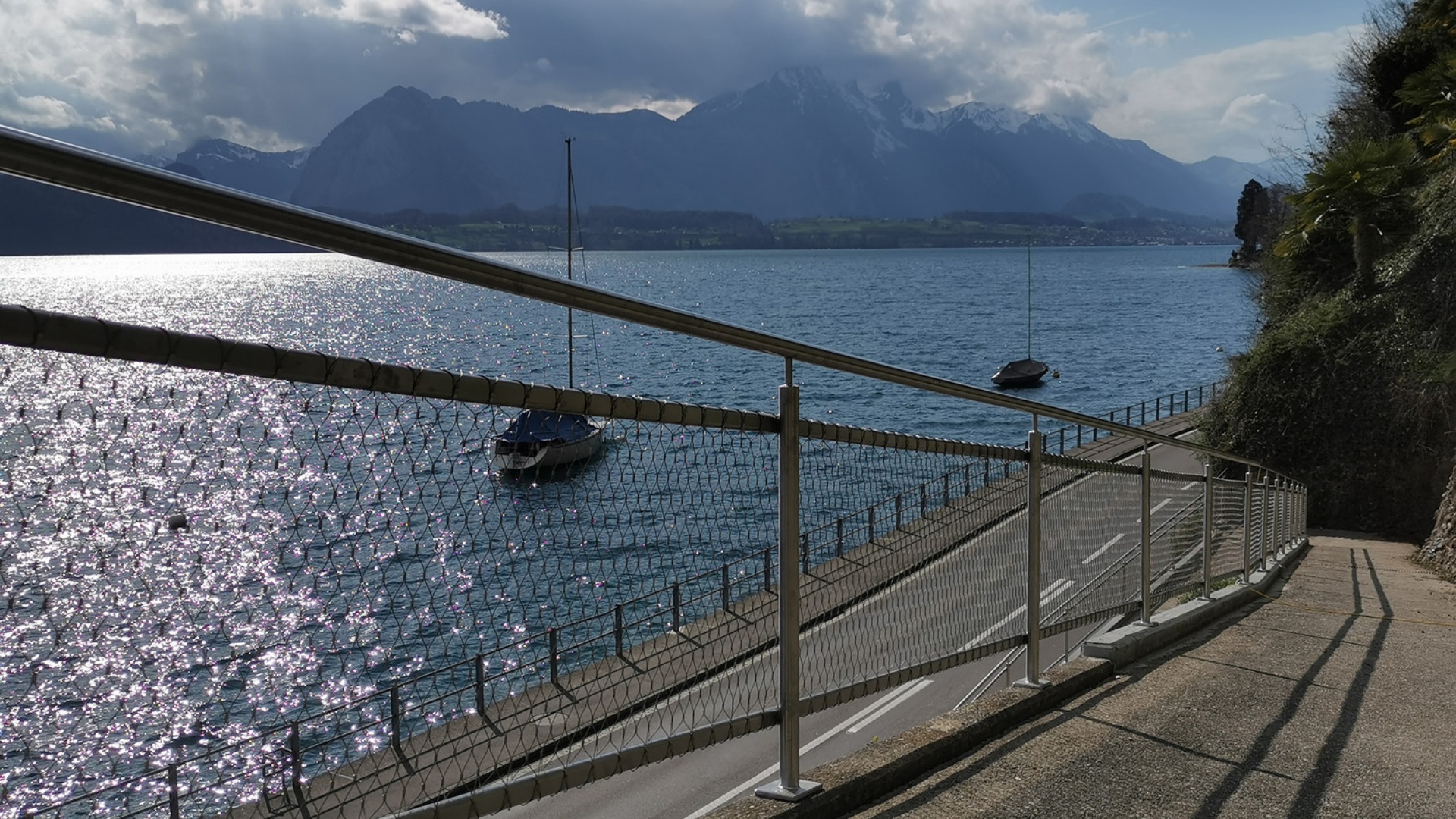

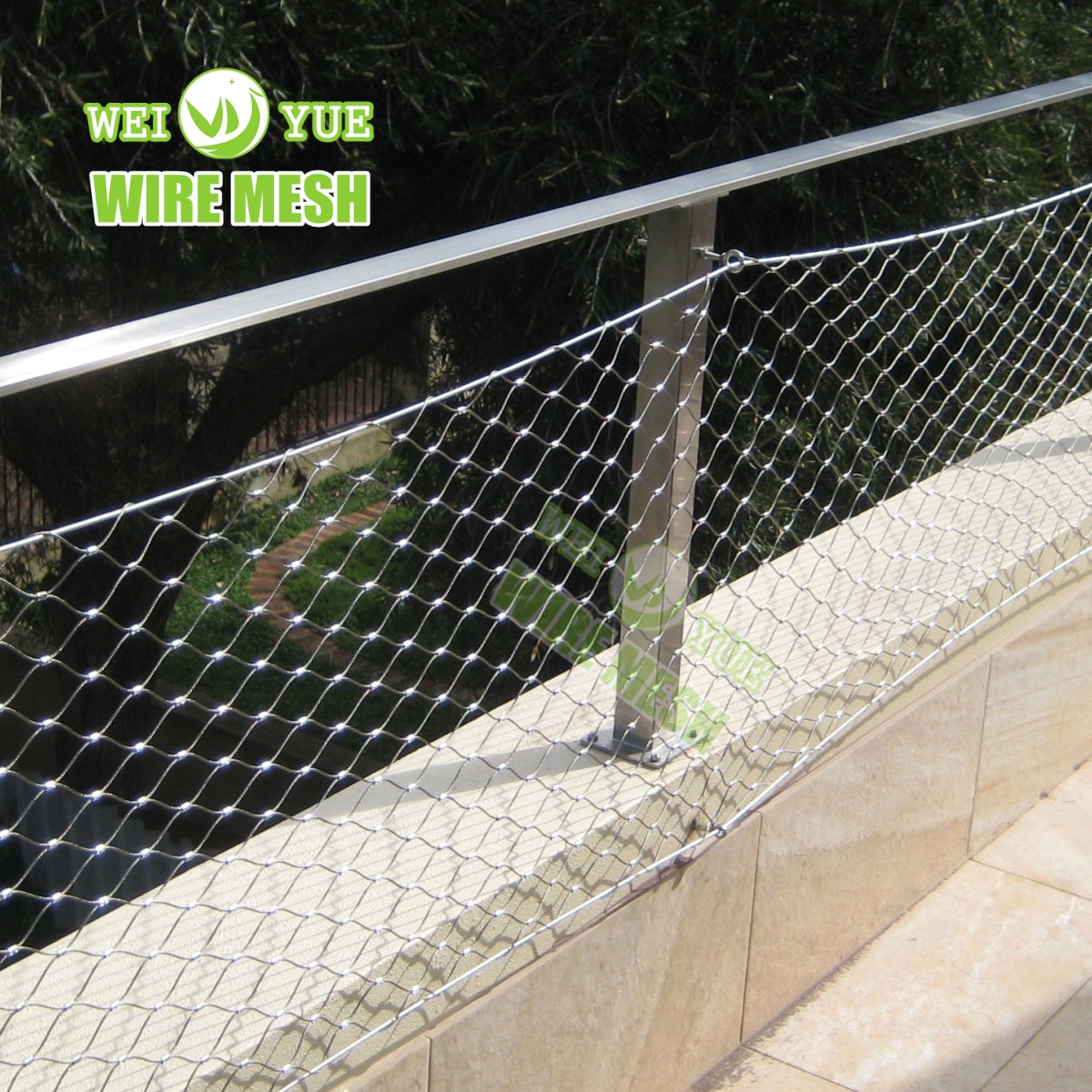

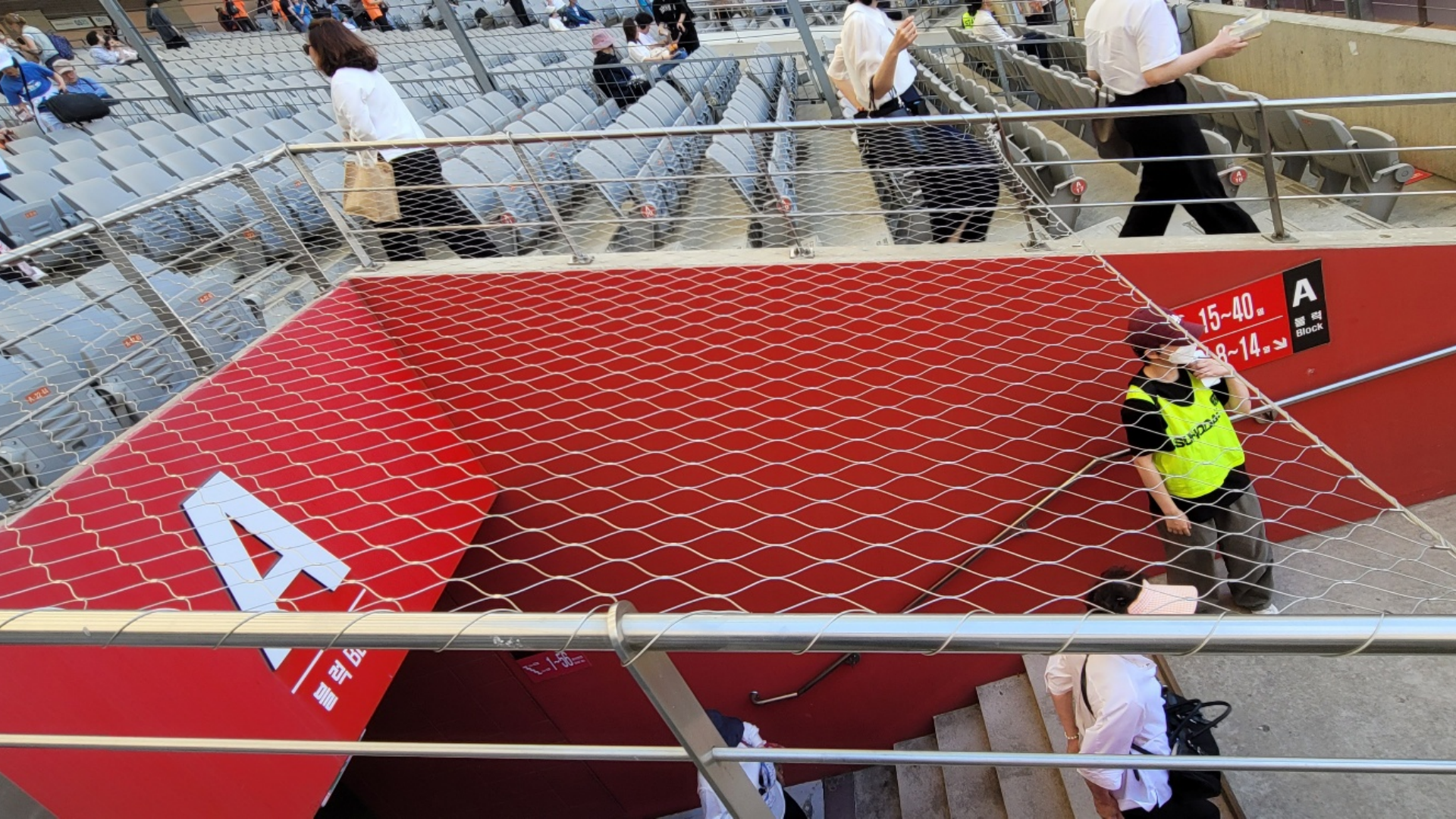

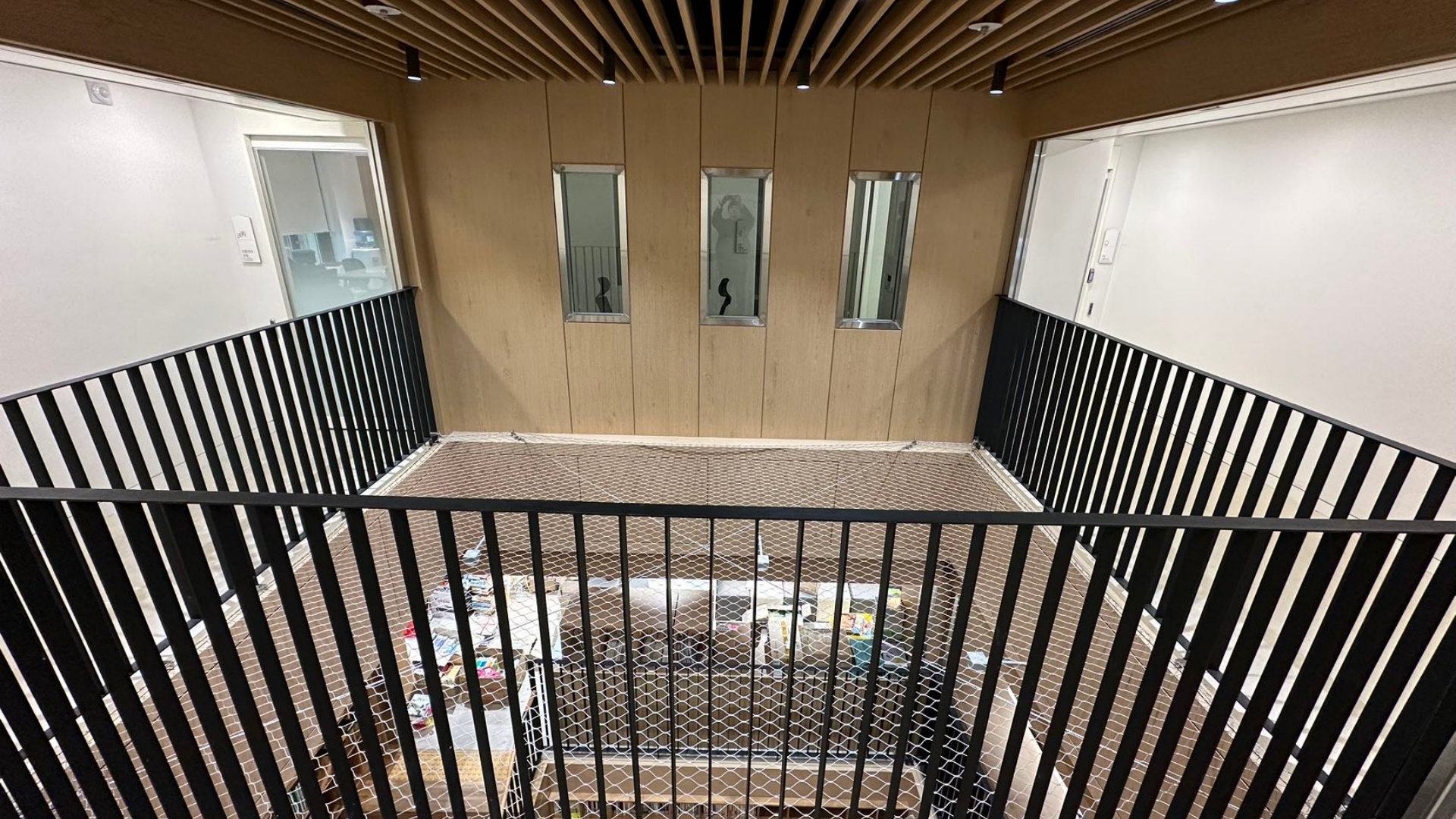

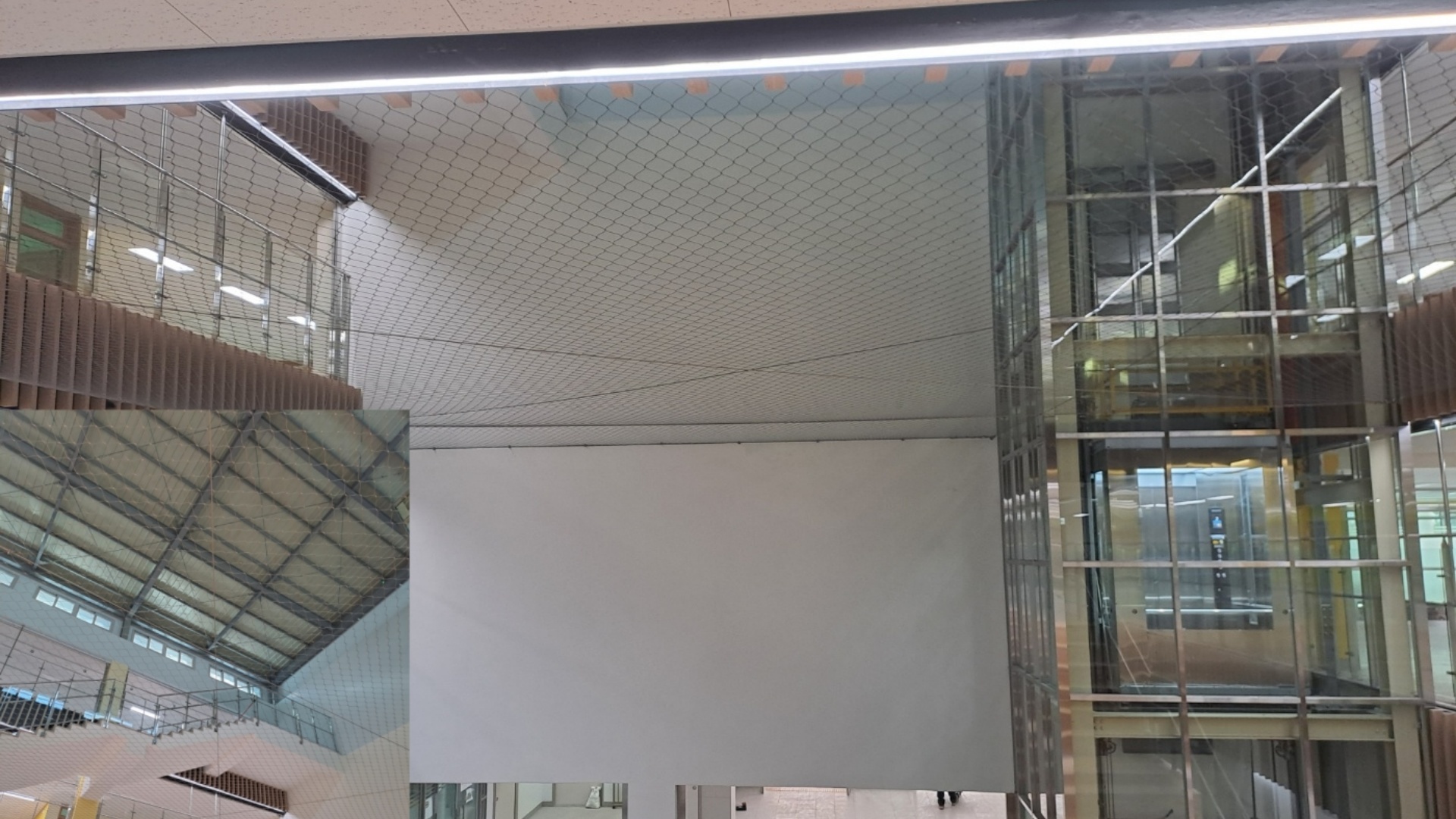

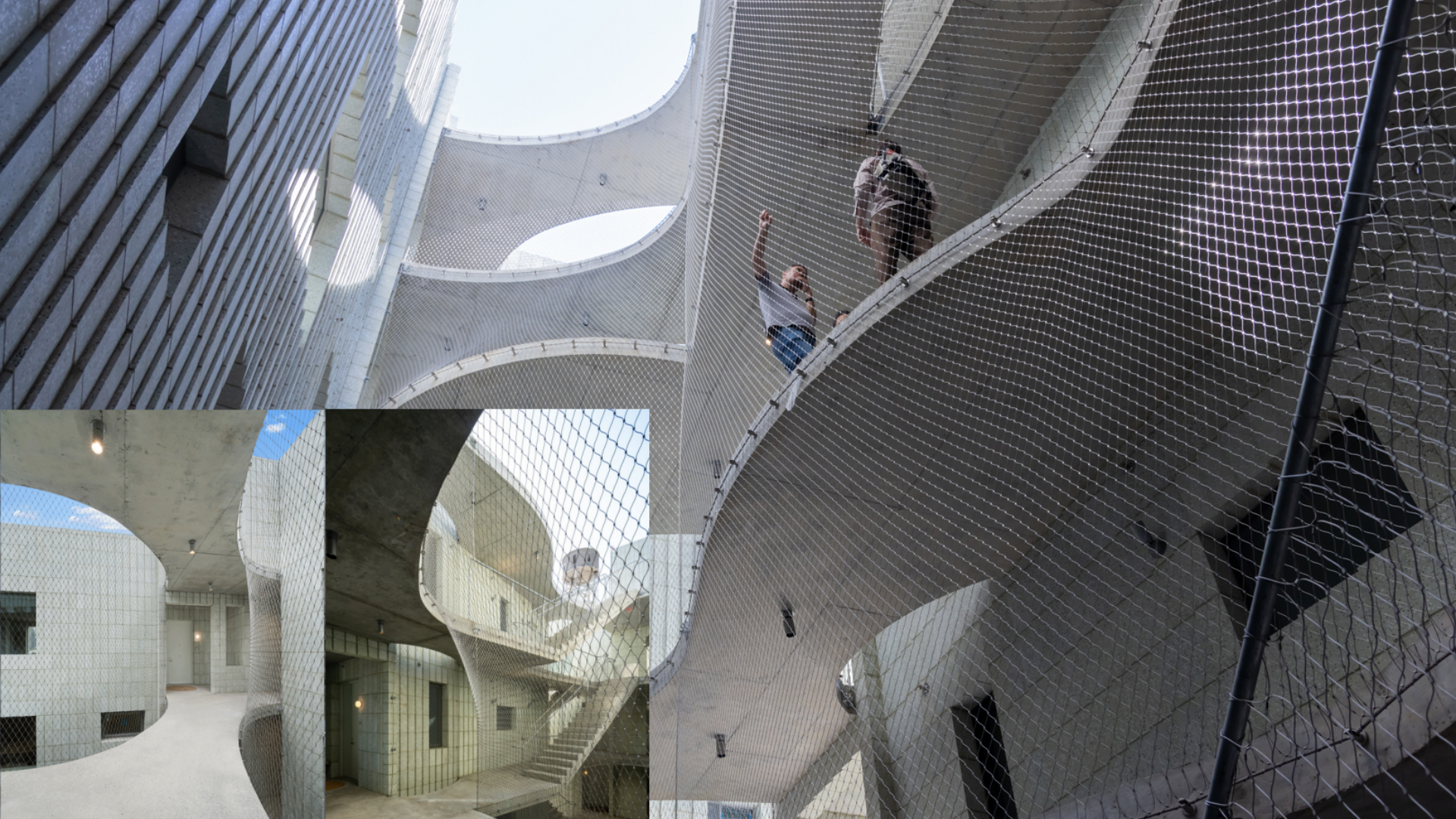

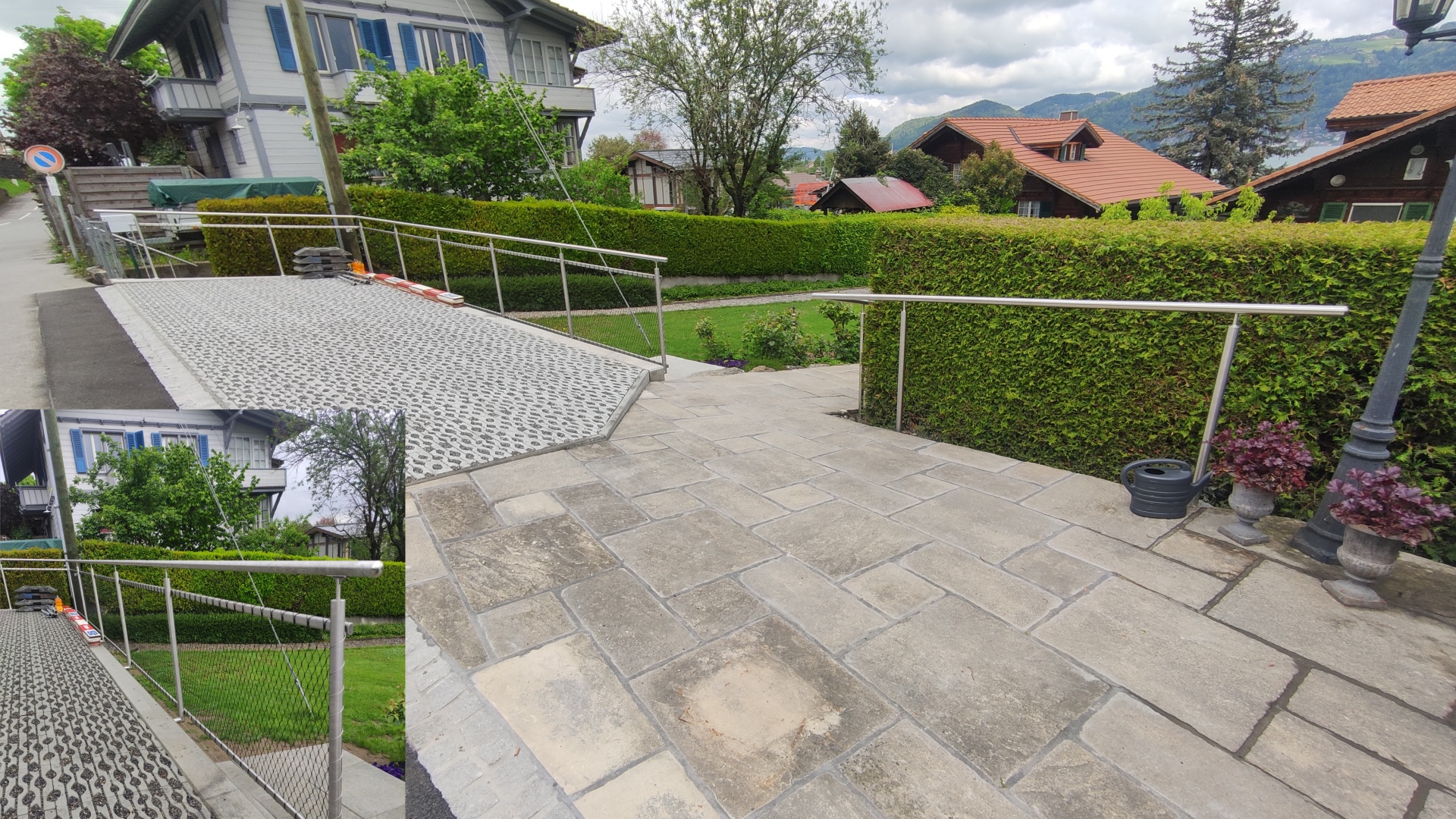

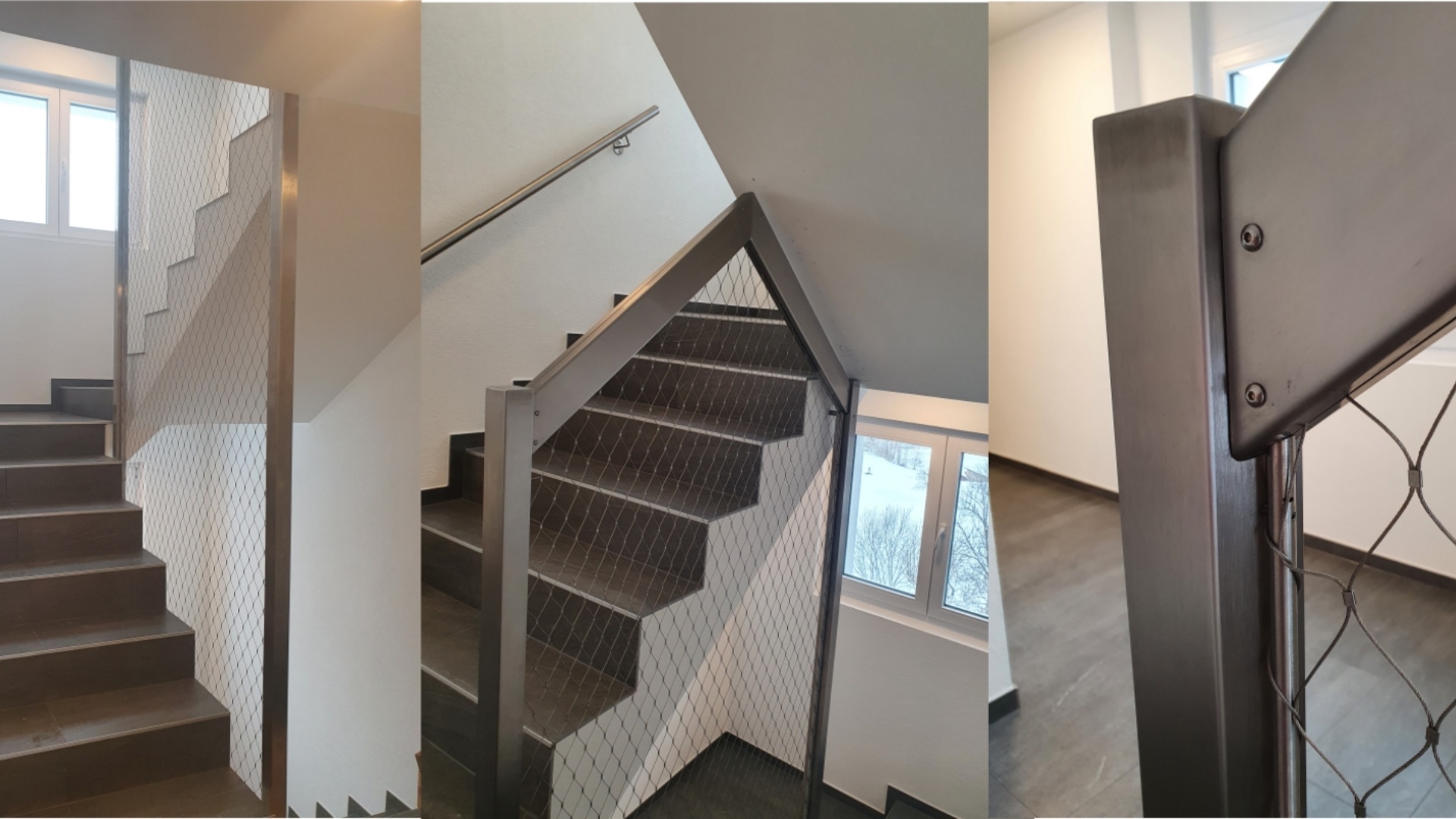

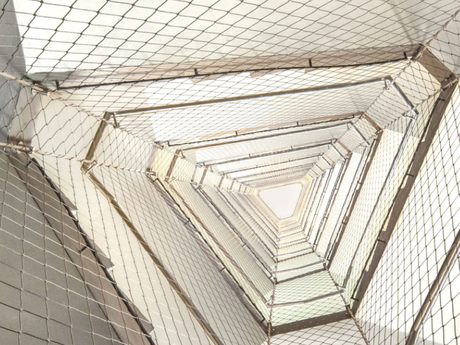

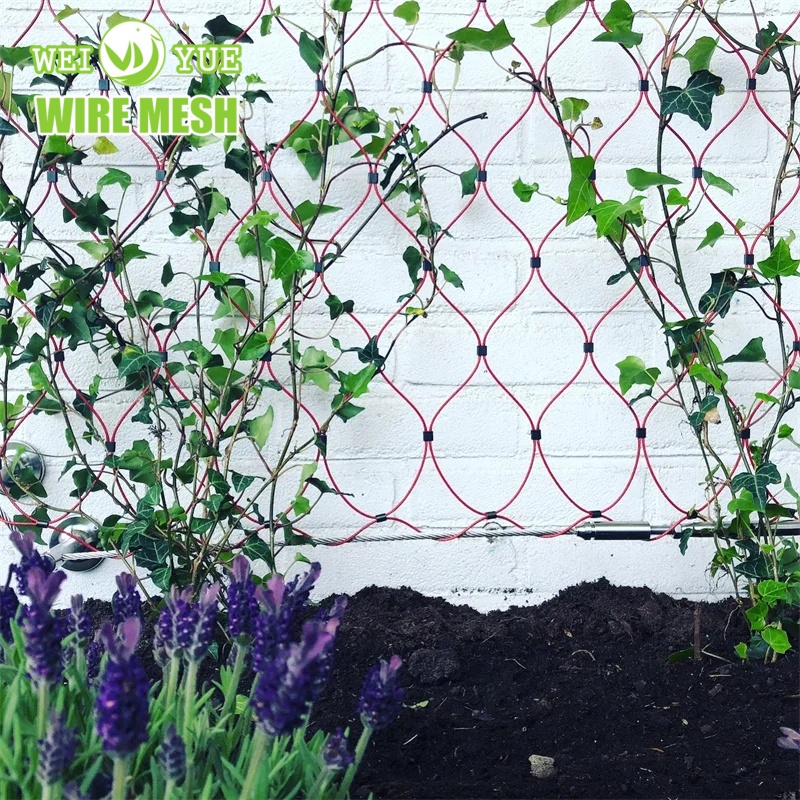

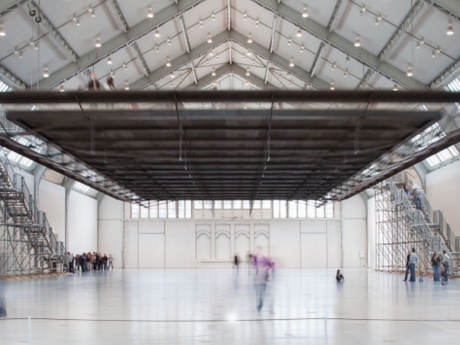

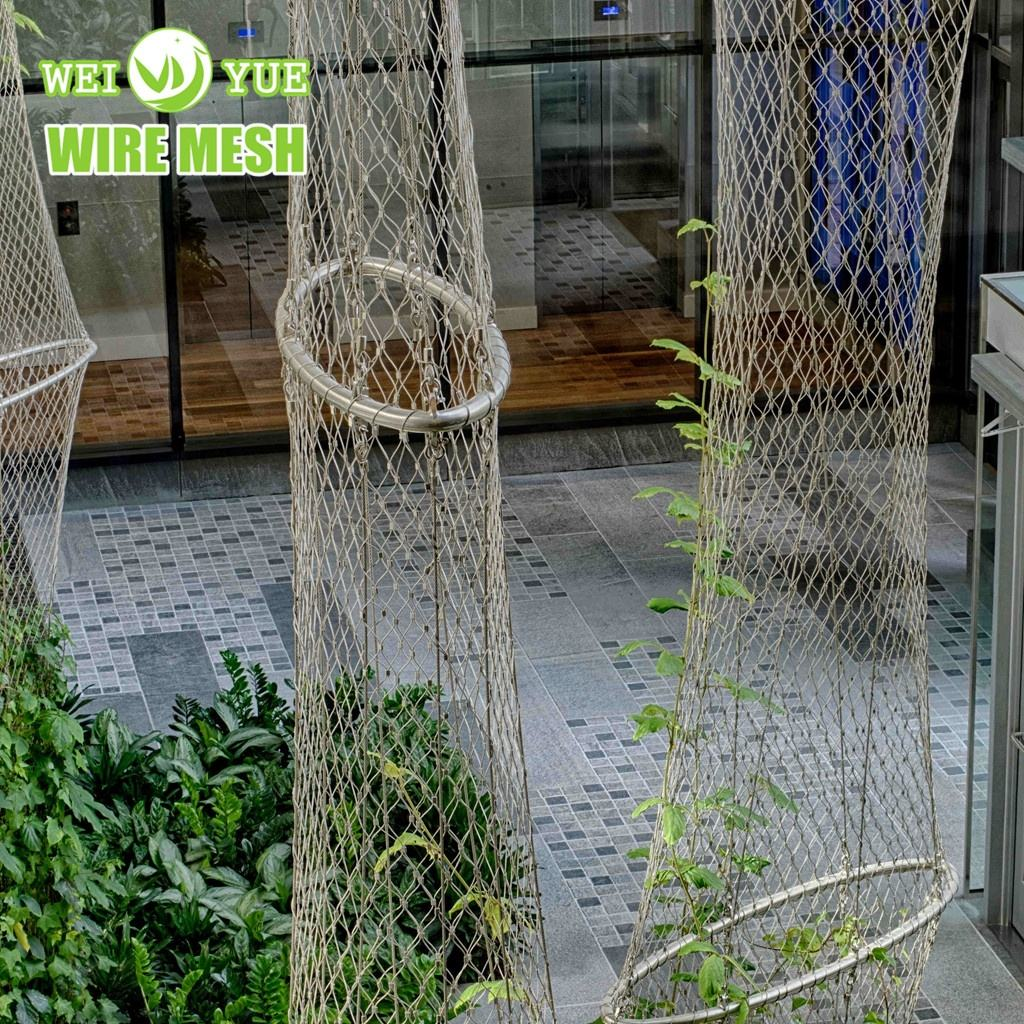

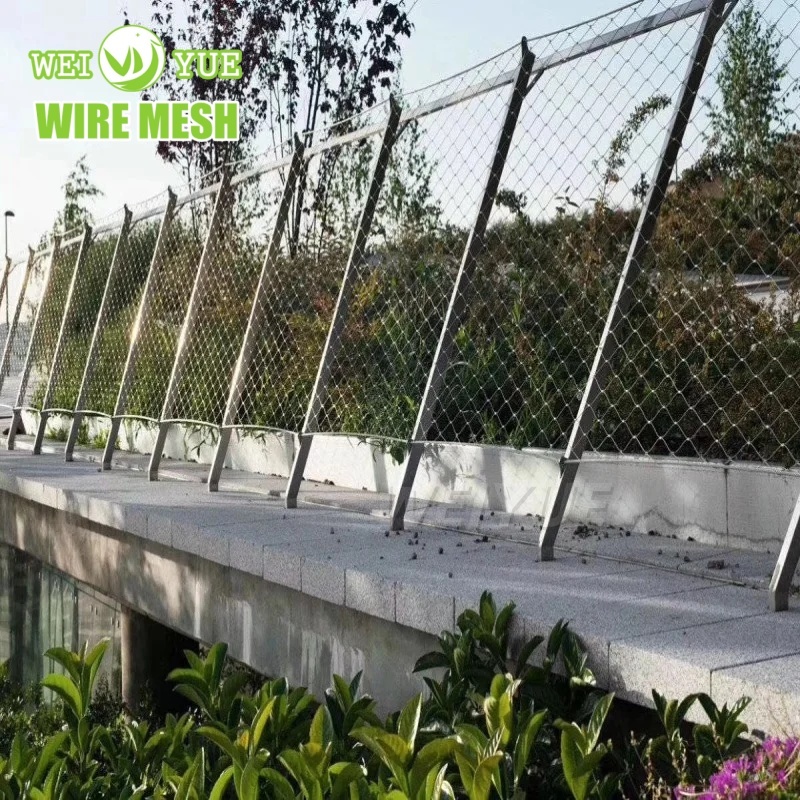

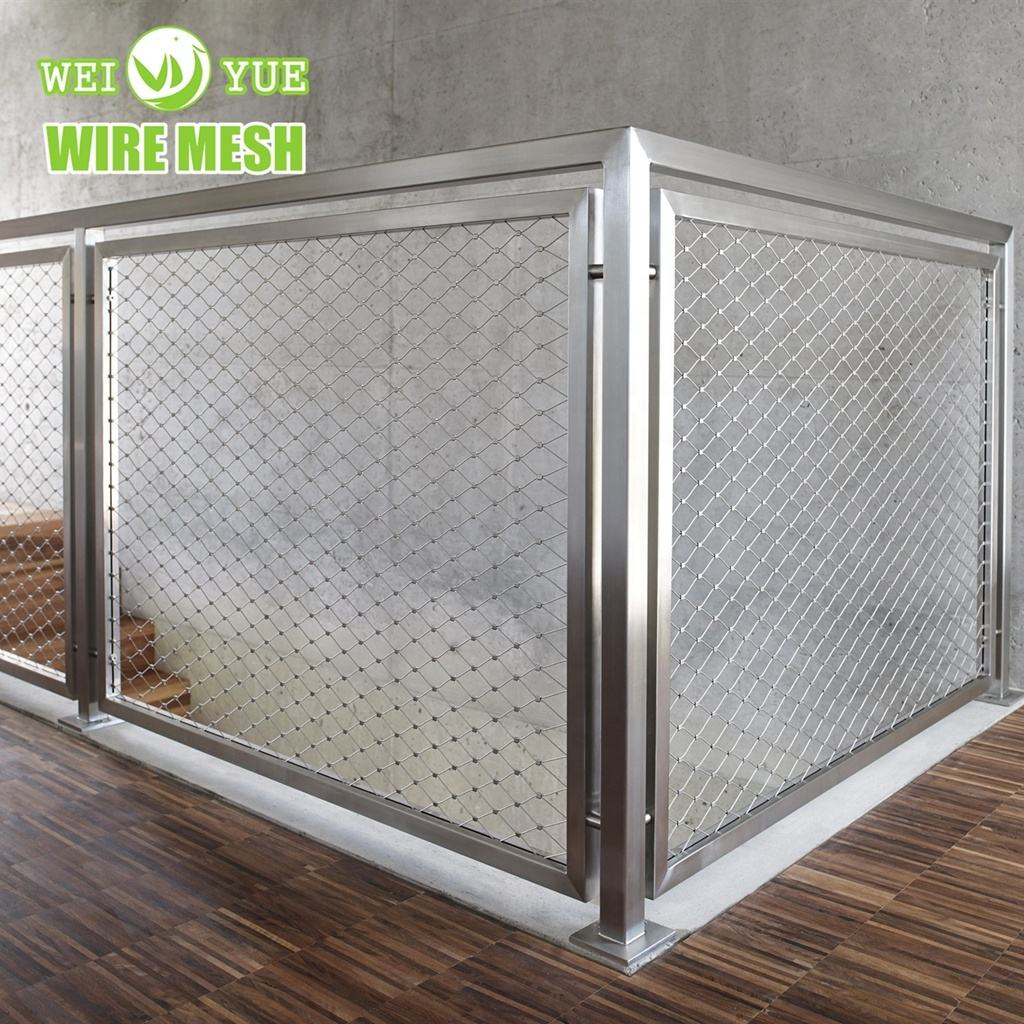

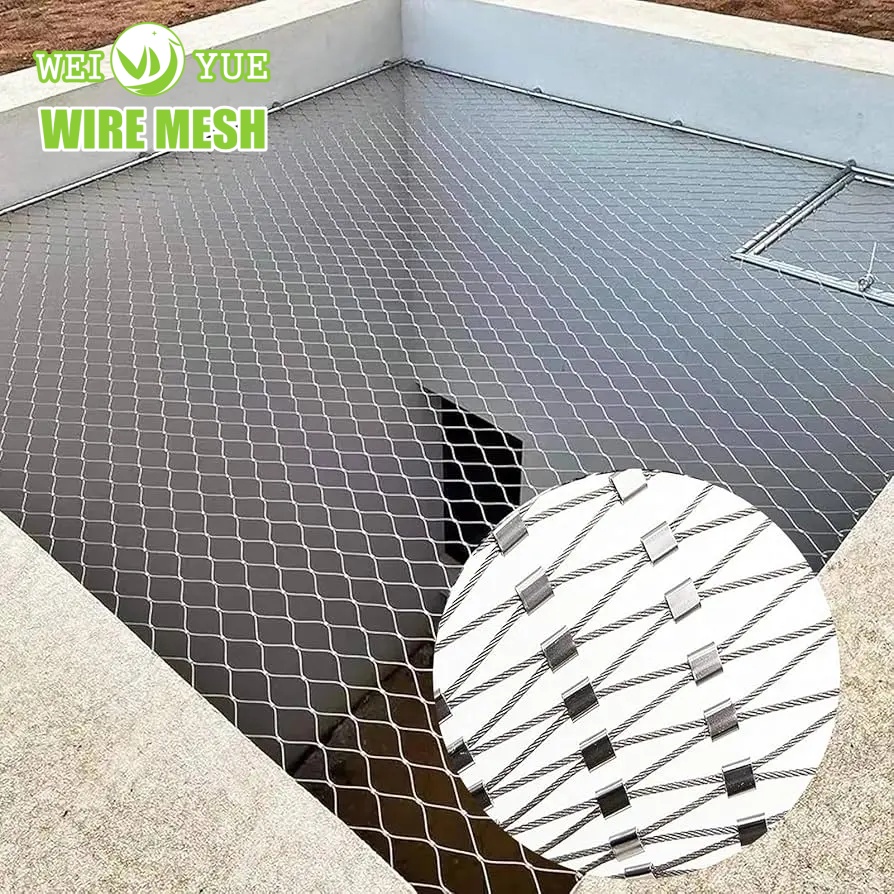

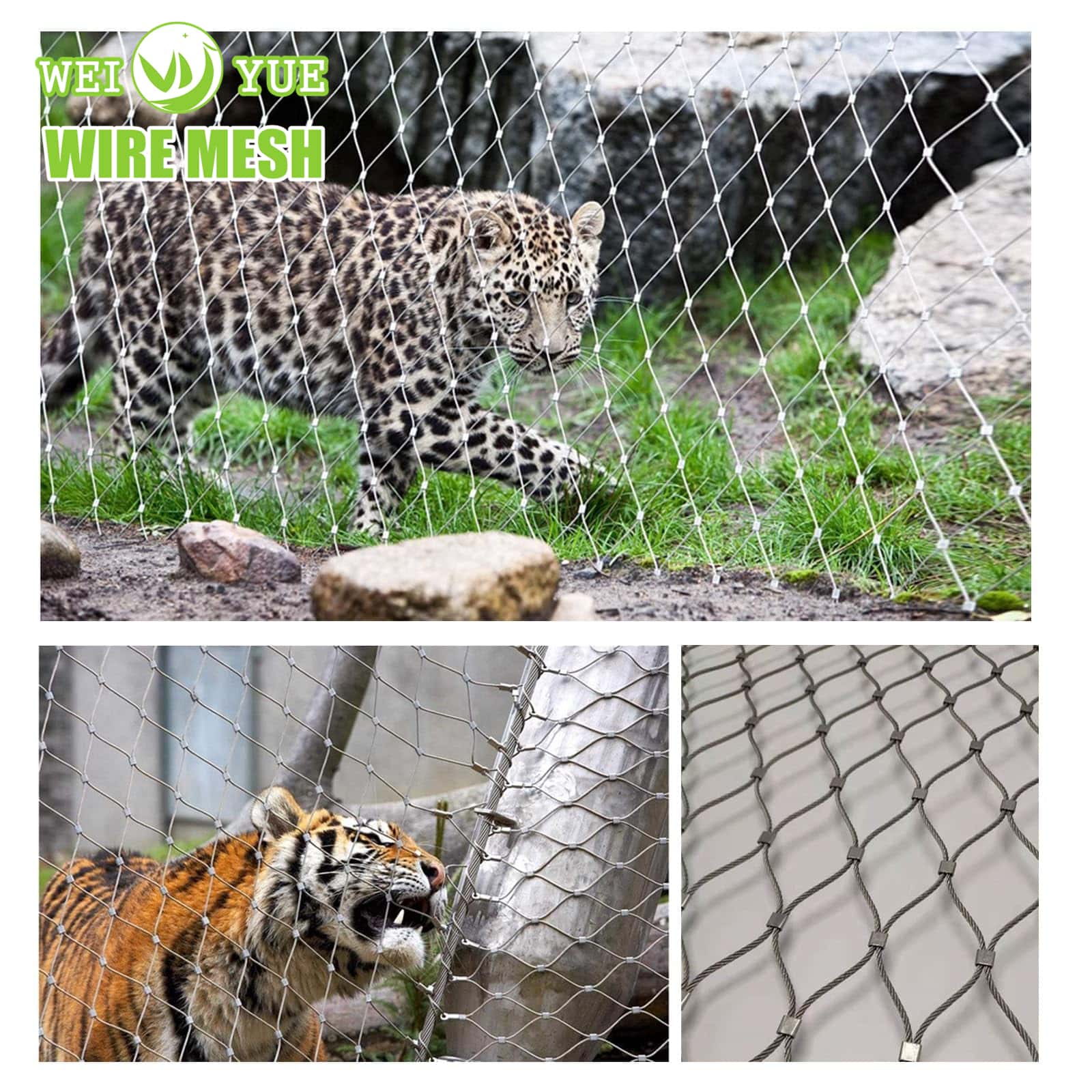

The mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.
• The Main Parameters of Stainless Steel Cable Mesh
Material: stainless steel 304, 304L, 316, 316L.

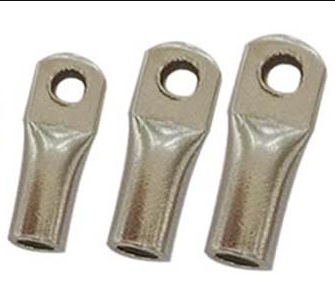

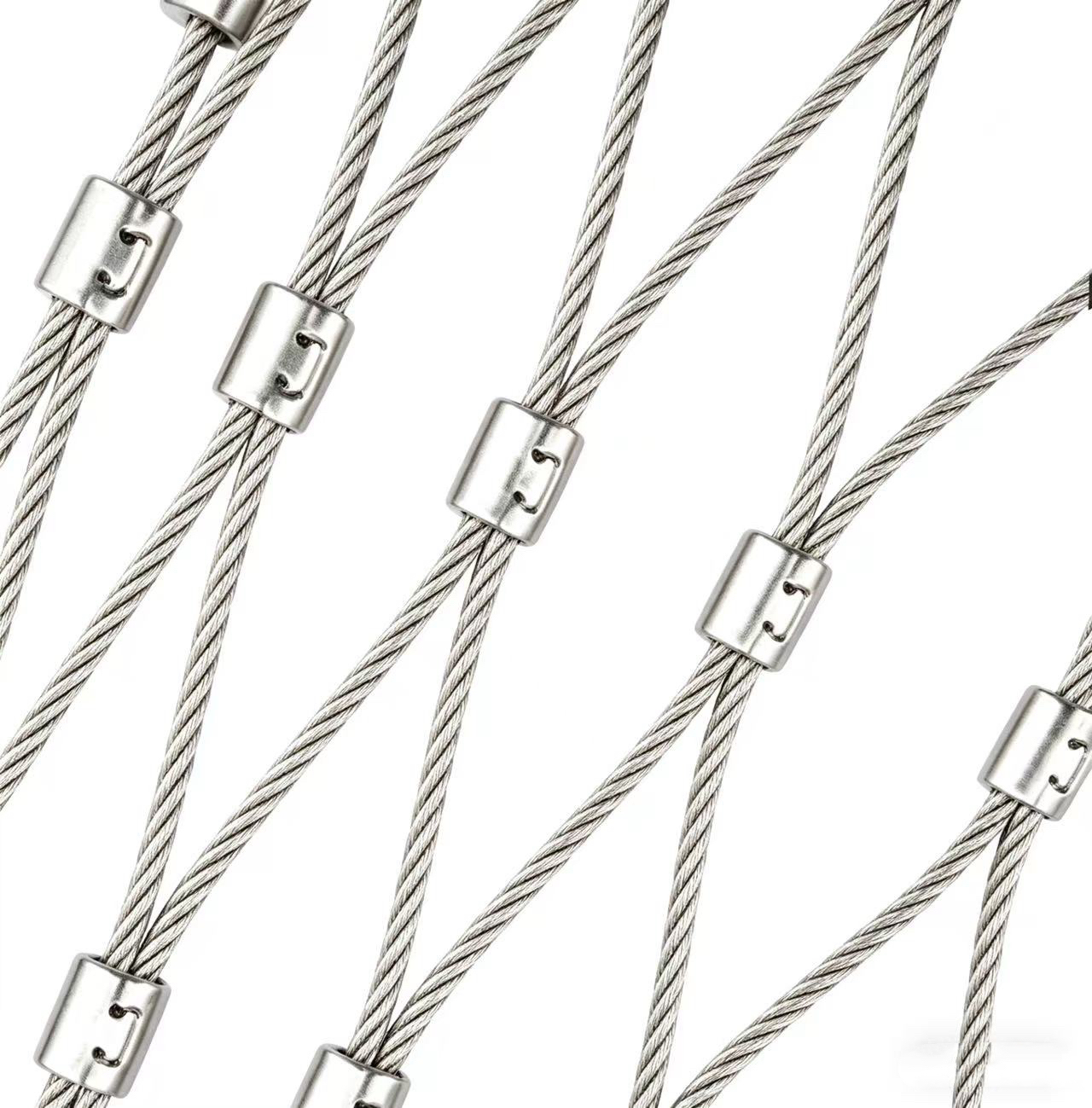

Ferrule material: tinned copper, nickel plated copper, stainless steel.

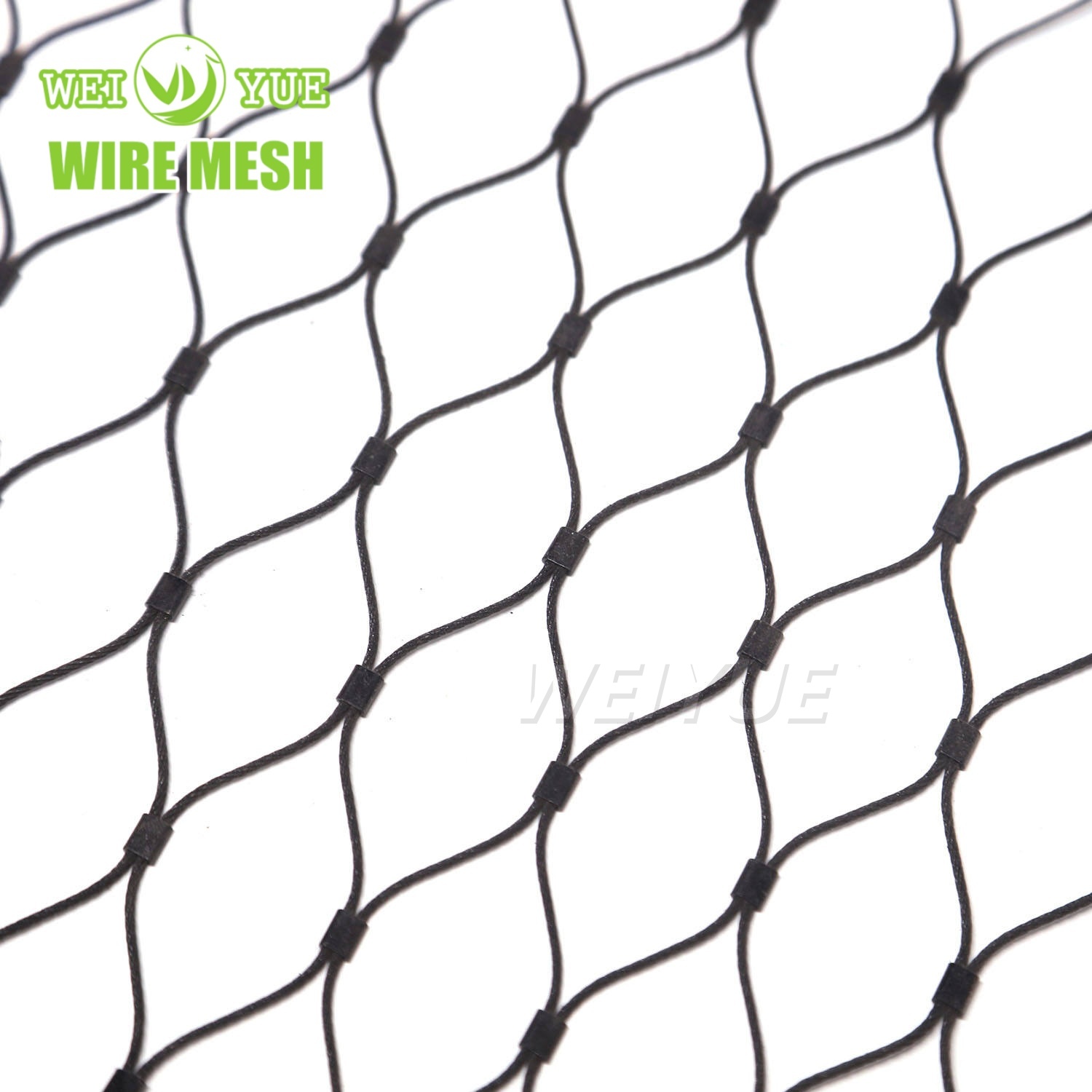

Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0–5.0 mm.
Mesh opening sizes: 25–200 mm.

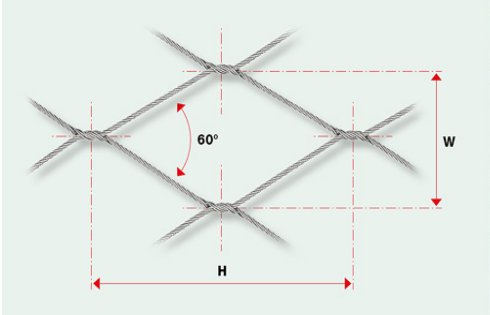

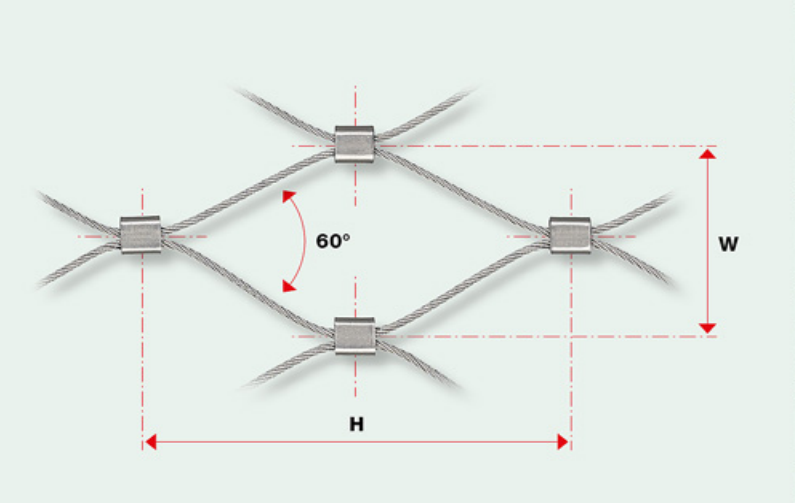

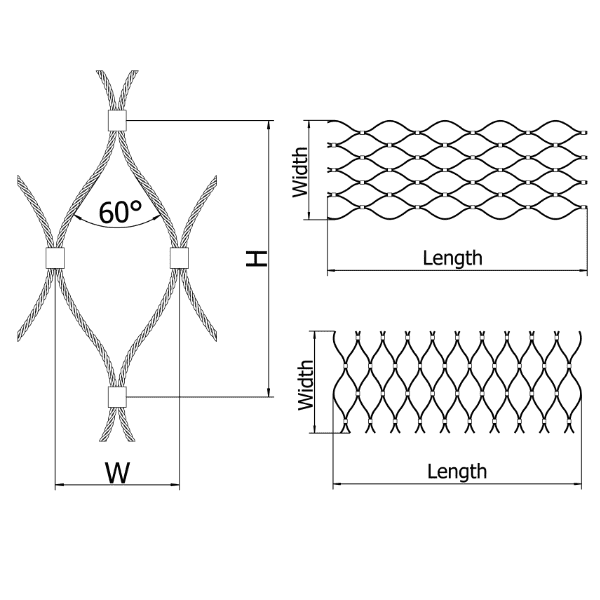

Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project. The following specifications are that customers ordered frequently
Construction of wire cable: 7 × 7, 7 × 19.

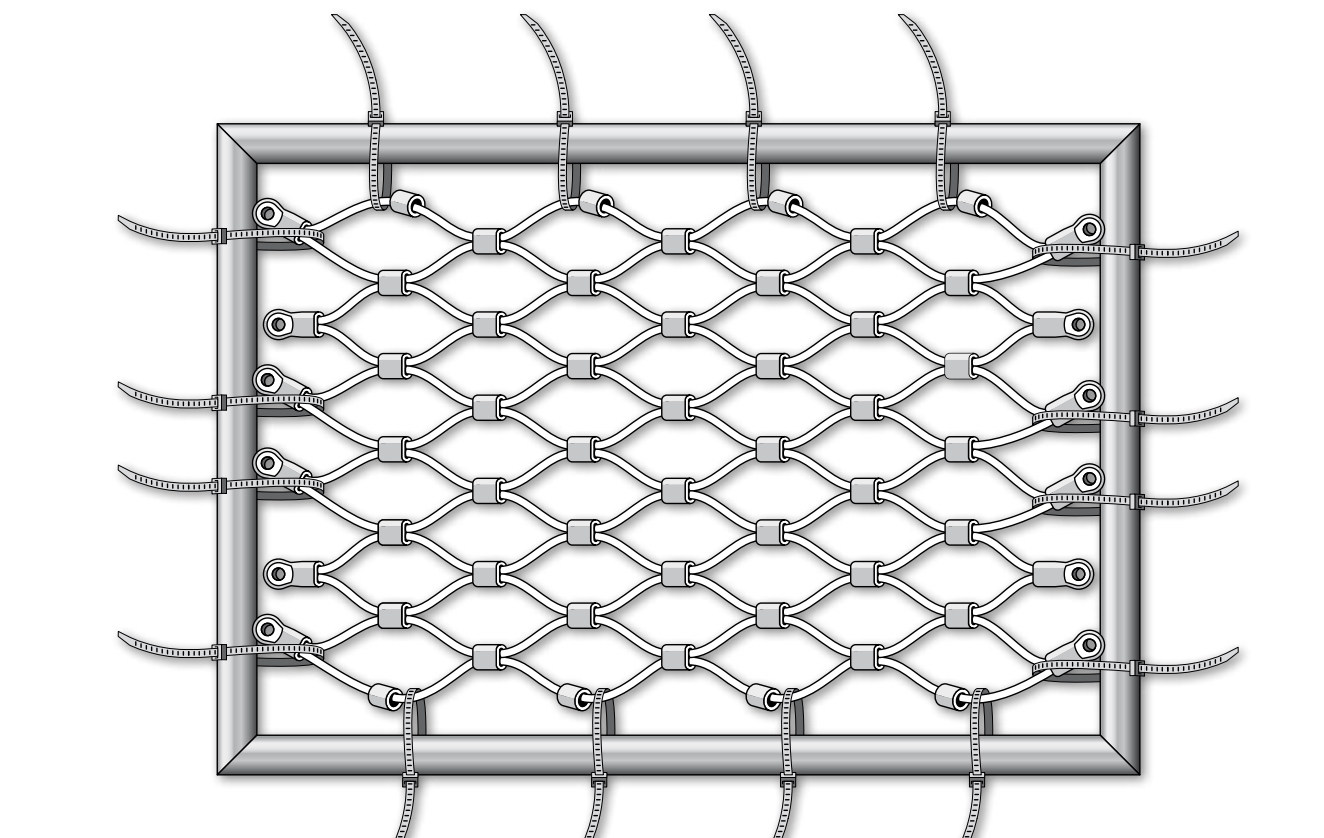

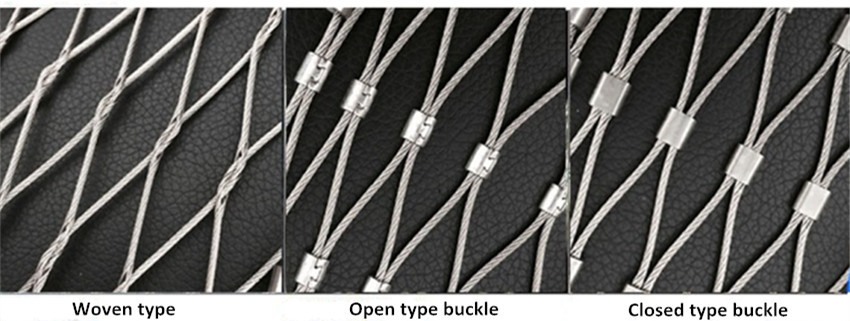

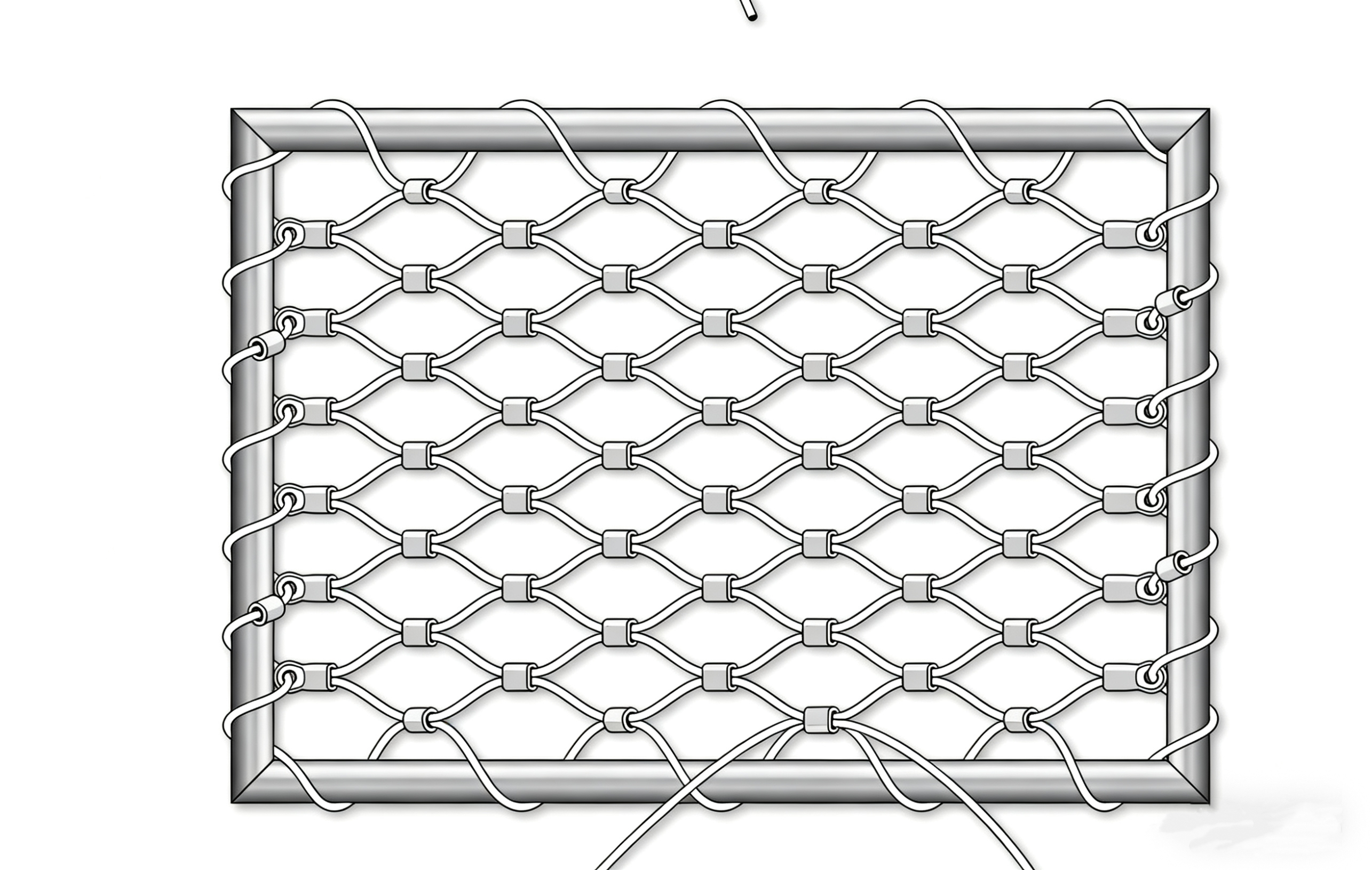

Connection: ferrule or knotted.
• Normal Specifications Of Stainless Steel Cable Mesh

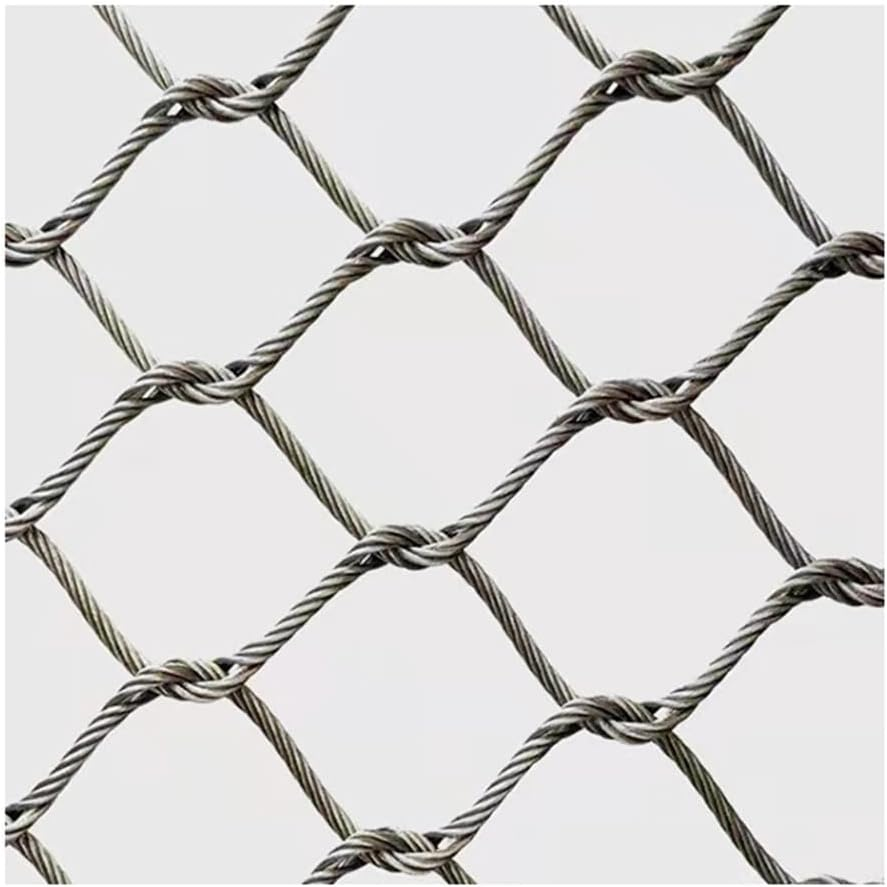

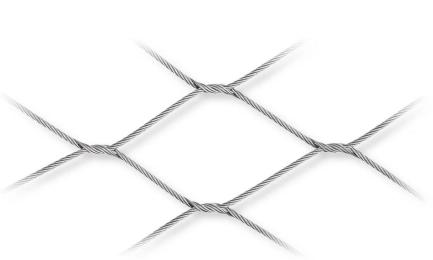

Knotted type cable mesh
Pattern: diamond.
Material: stainless steel 304, 304L, 316 or 316L.
Cable construction: 7 × 7 , 7 × 19
Standard mesh angle: 90°.
Mesh size: W: 20 mm to 120 mm; H: 20 mm to 120 mm.
Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
Inch | mm | Inch | mm | KN | ||
WY-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
WY-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
WY-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
WY-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
WY-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
WY-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
WY-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
WY-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
WY-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
WY-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
WY-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
WY-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
WY-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
WY-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
WY-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
WY-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
WY-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
WY-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
WY-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
WY-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
WY-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
WY-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
WY-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
WY-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |

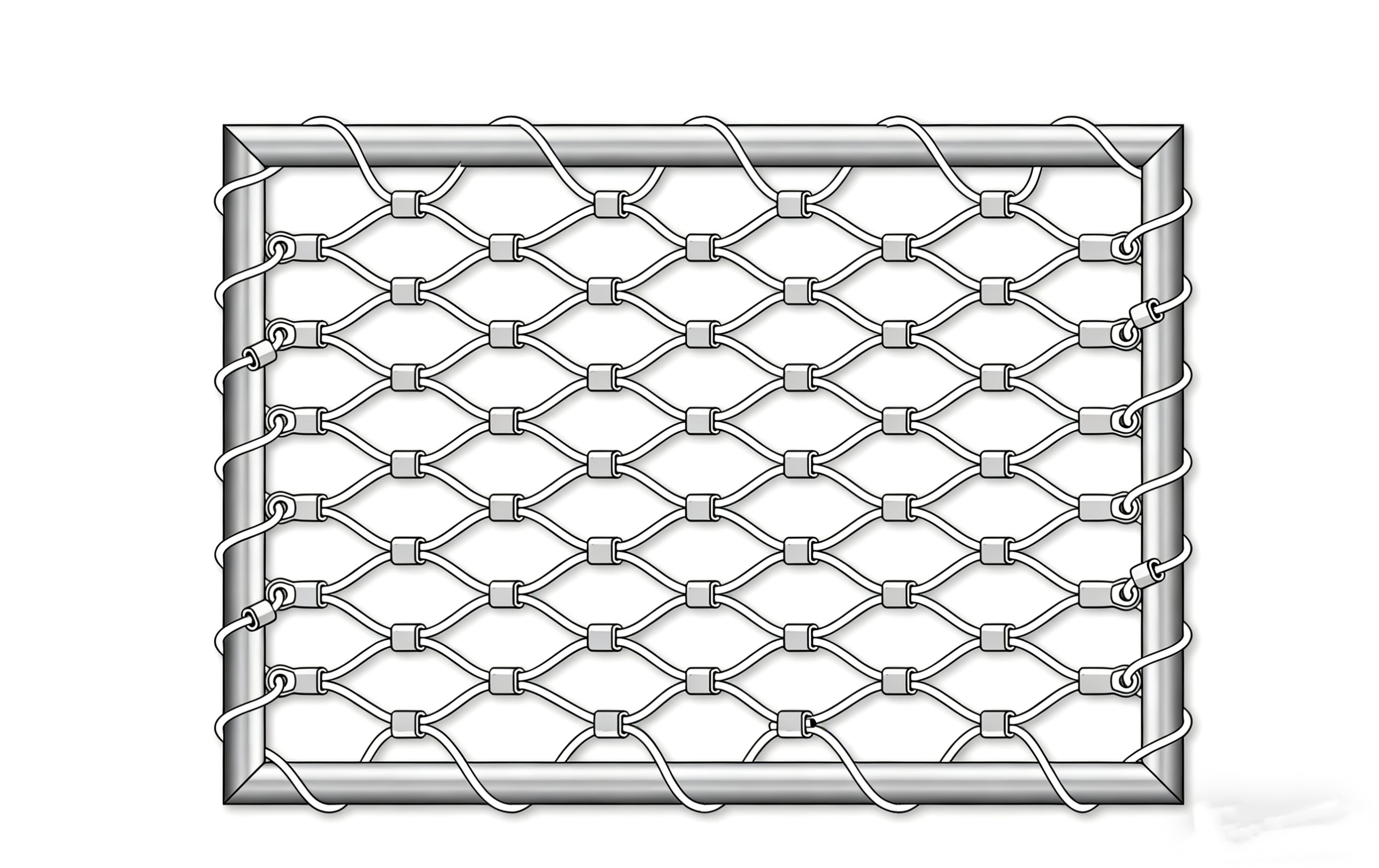

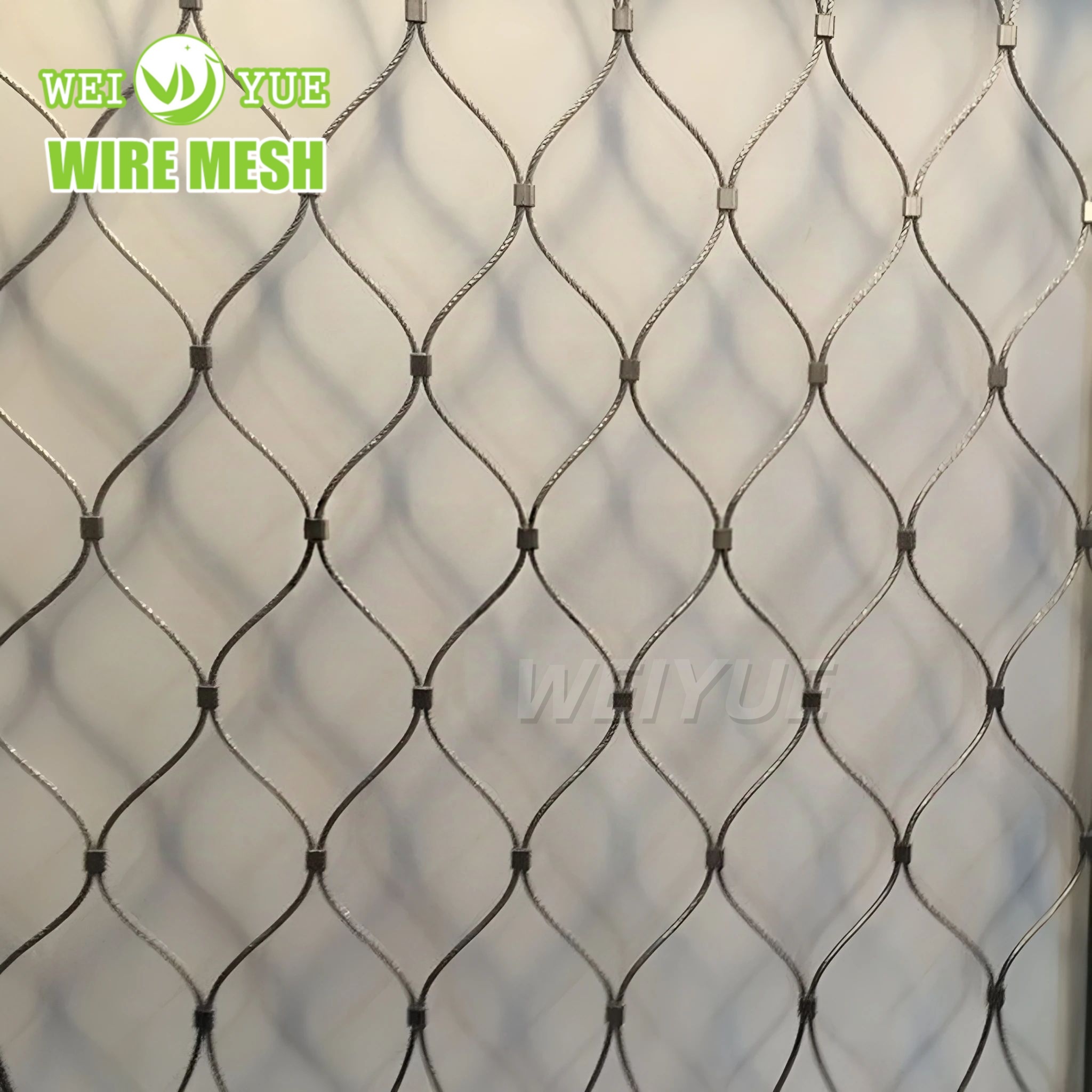

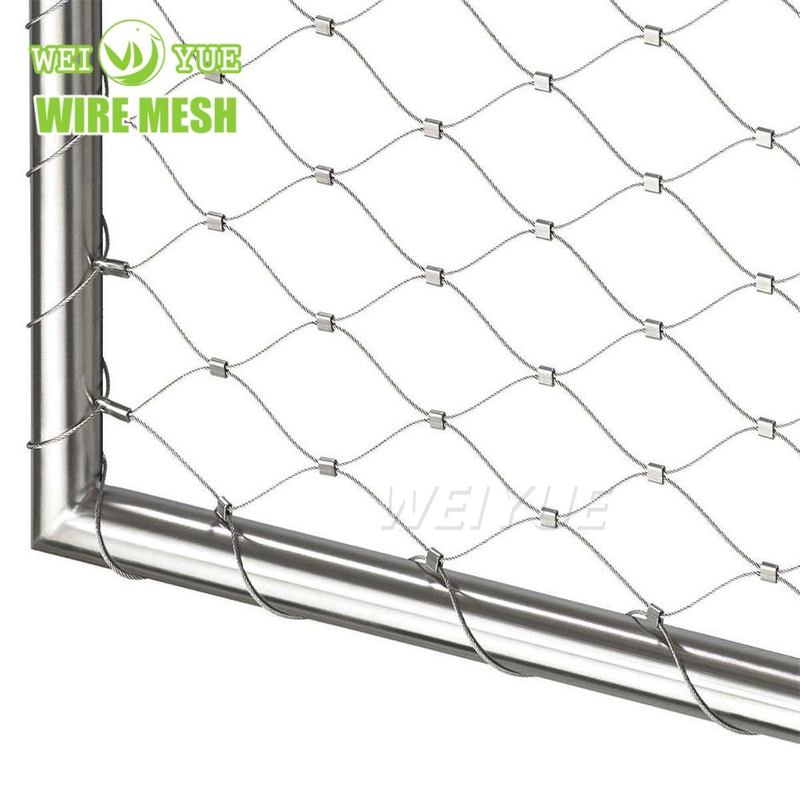

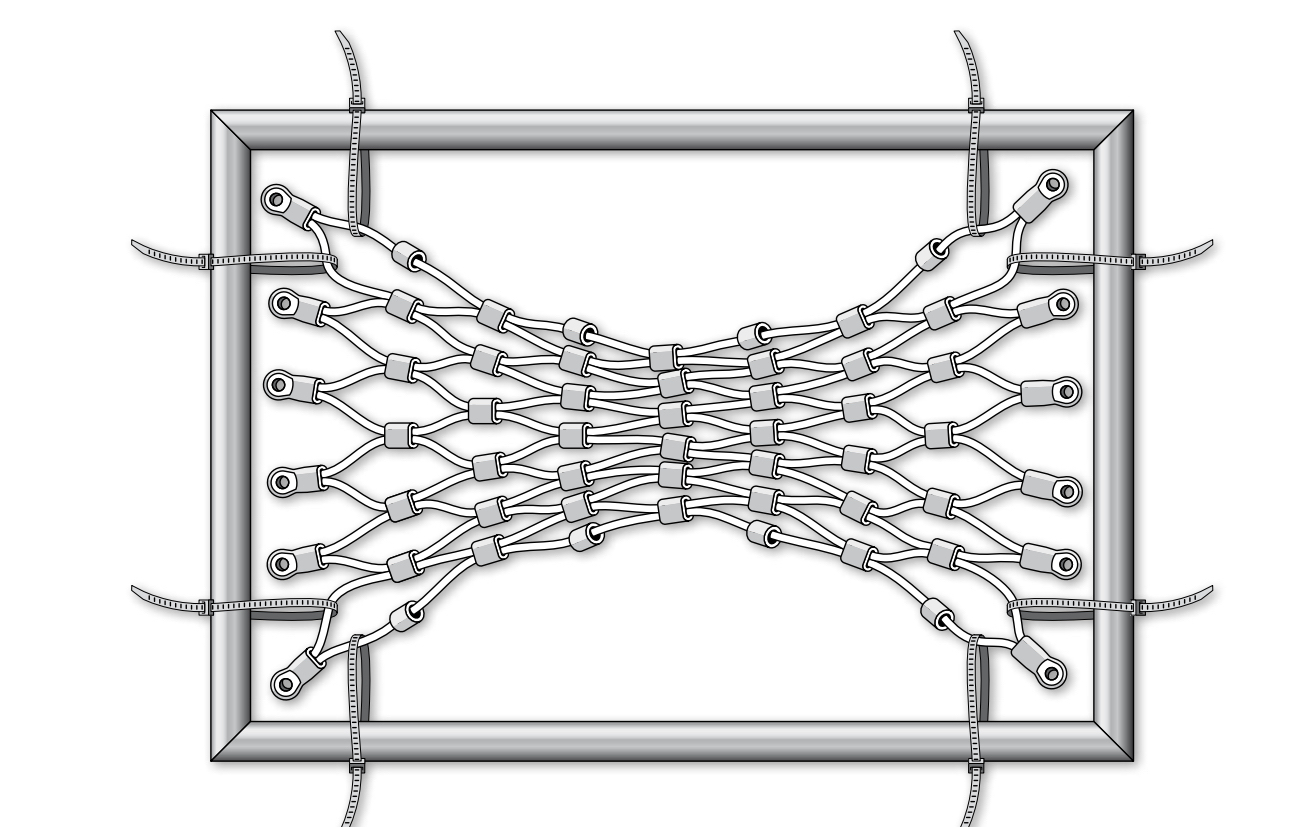

Ferrule type cable mesh

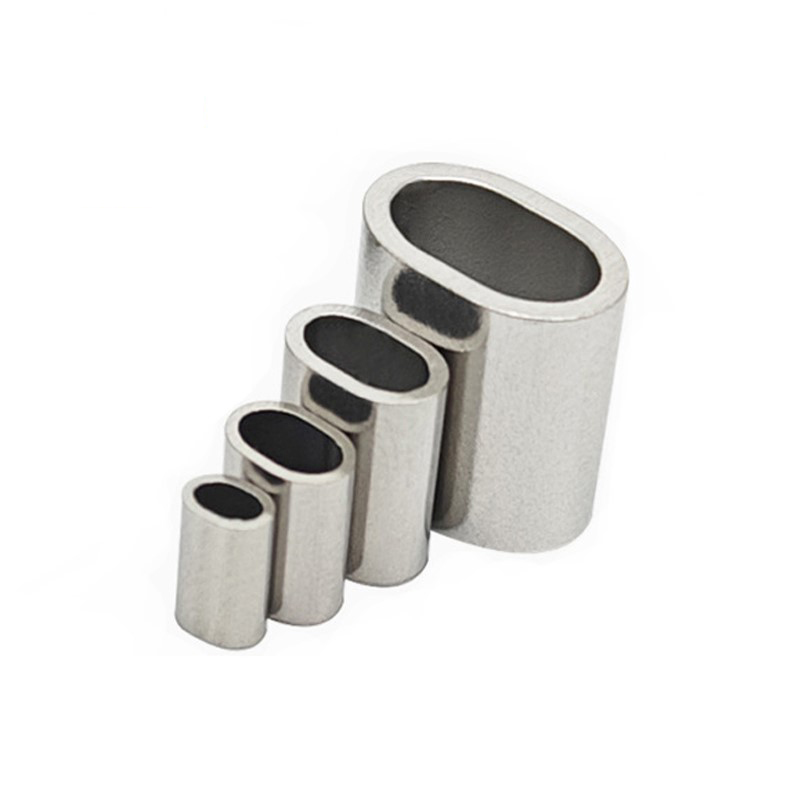

Ferrule material: tinned copper, nickel plated copper, stainless steel or aluminum.
Cable material: high tensile stainless steel AISI 304, 304L, 316, 316L.
Cable construction: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size: 20 mm to 200 mm.
Cable diameter: 1 mm to 4 mm.
Standard: Any custom design and sizes are available.
Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
Inch | mm | mm | kN | ||
WY-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
WY-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
WY-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
WY-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
WY-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
WY-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
WY-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
WY-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
WY-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
WY-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
WY-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
WY-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
WY-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
WY-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
WY-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
WY-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
WY-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
WY-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
WY-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
• The Applications of Stainless Steel Cable Mesh
Stainless steel, a versatile material with elegance and robustness, has inspired architectural designers for projects of all kinds. Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.
The mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.
• The Main Parameters of Stainless Steel Cable Mesh
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0–5.0 mm.
Mesh opening sizes: 25–200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project. The following specifications are that customers ordered frequently
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
• Normal Specifications Of Stainless Steel Cable Mesh
Knotted type cable mesh
Pattern: diamond.
Material: stainless steel 304, 304L, 316 or 316L.
Cable construction: 7 × 7 , 7 × 19
Standard mesh angle: 90°.
Mesh size: W: 20 mm to 120 mm; H: 20 mm to 120 mm.
Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
Inch | mm | Inch | mm | KN | ||
WY-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
WY-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
WY-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
WY-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
WY-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
WY-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
WY-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
WY-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
WY-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
WY-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
WY-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
WY-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
WY-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
WY-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
WY-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
WY-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
WY-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
WY-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
WY-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
WY-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
WY-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
WY-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
WY-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
WY-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
Ferrule type cable mesh
Ferrule material: tinned copper, nickel plated copper, stainless steel or aluminum.
Cable material: high tensile stainless steel AISI 304, 304L, 316, 316L.
Cable construction: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size: 20 mm to 200 mm.
Cable diameter: 1 mm to 4 mm.
Standard: Any custom design and sizes are available.
Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
Inch | mm | mm | kN | ||
WY-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
WY-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
WY-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
WY-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
WY-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
WY-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
WY-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
WY-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
WY-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
WY-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
WY-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
WY-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
WY-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
WY-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
WY-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
WY-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
WY-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
WY-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
WY-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
• The Applications of Stainless Steel Cable Mesh
