Selecting an ultra fine filter mesh is a balancing exercise: the opening must be small enough to retain the particles that matter, yet open enough to keep pressure drop, cleaning effort, and replacement frequency under control. A 100, 150, or 200 micron choice is therefore not simply a question of “finer is better.” It depends on the particle-size distribution, required product quality, fluid viscosity, flow direction, contamination load, and the strength needed in the finished filter. This guide gives engineers and buyers a practical way to specify the right aperture before requesting a sample or quotation.
A 100 micron filter aperture captures smaller particles than a 150 or 200 micron aperture, but it usually has a higher resistance to flow under otherwise similar conditions.
Micron rating, mesh count, wire diameter, weave, and open area describe different properties; they should not be treated as interchangeable.
Confirm whether the stated micron value is an opening, a nominal retention target, or an application-specific rating.
Use actual process conditions—particle shape, solids loading, viscosity, temperature, pressure, and cleaning method—to make the final selection.
A micrometre, also called a micron, is one thousandth of a millimetre. In woven wire filtration, a 100 micron opening is 0.100 mm wide; 150 micron is 0.150 mm; and 200 micron is 0.200 mm. The value describes an opening size, not a universal promise that every particle above that diameter will be stopped. Long fibres can pass through an opening narrower than their length when aligned with flow, while soft or deformable particles may pass where a rigid sphere would not. Agglomerates may be retained initially and later break apart.
That distinction is useful in procurement. If the process has a defined contaminant, ask for its size distribution and shape. If the process is a protective strainer ahead of a pump, valve, nozzle, or analyser, ask what smallest particle could damage that component. If the mesh is part of product classification, establish the permitted oversize and undersize fractions with a representative trial. In each case, the aperture is a starting point for engineering, rather than the complete filter specification.
Mesh count means the number of openings per linear inch. It does not uniquely establish a filter aperture because wire diameter changes the free space between adjacent wires. Two cloths can both be described as 100 mesh and still provide different openings and open areas if one uses a heavier wire. Dutch weaves add another reason not to rely on mesh count alone: the warp and weft counts differ, and their packed construction creates a tortuous flow path instead of clearly visible square holes.
For a square woven screen, a useful approximation is: aperture in mm equals 25.4 divided by mesh count minus wire diameter in mm. For example, a nominal mesh count without its wire diameter cannot calculate the opening. This plain-text formula is a screening tool only; a supplier’s measured specification remains the correct source for release documents.
Selection point | 100 micron | 150 micron | 200 micron |
|---|---|---|---|
Relative particle retention | Finest of the three | Intermediate | Coarsest of the three |
Relative clean-flow capacity | Lowest under similar construction | Moderate | Highest |
Sensitivity to loading | Highest | Moderate | Lowest |
Typical decision role | Product protection or finer polishing | Balanced duty filtration | Pre-filtration and debris protection |
Validation priority | Differential pressure and cleaning | Retention-flow balance | Downstream protection adequacy |
The table is intentionally comparative, not a performance guarantee. Flow is also affected by cloth area, filtration direction, viscosity, temperature, cake formation, and the geometry of a disc, basket, cylinder, or housing. A larger 100 micron element can outperform a small 200 micron element if it has substantially more active area. The right comparison is the complete filtration assembly operating in the real process.
Choose a 100 micron filter mesh when the process needs tighter mechanical separation than 150 or 200 micron media can give, and the available filtration area or pressure margin can support it. Examples include removing fine visible debris from a liquid before a sensitive downstream stage, protecting a narrow passage where particle intrusion is unacceptable, or setting a practical upper size boundary in a dry screening operation.
The main trade-off is loading. Smaller openings present less passage for a given cloth construction, so the element can build differential pressure sooner when feed contains broad particle sizes, sticky solids, or fibres. A sensible system design often uses staged filtration: a coarse upstream screen removes large debris, and the 100 micron element performs the final duty. Staging does not eliminate validation; it merely prevents the fine layer from doing a job that a more open, easier-to-clean layer can do efficiently.
For high-value batches, test a sample of the actual process fluid or powder. Record clean differential pressure, flow at the required production rate, change in pressure over time, retained material, and cleaning recovery. Those observations determine whether 100 micron is a sustainable operating choice rather than a pass/fail choice made from a catalogue number.
A 150 micron filter mesh is often selected where the process needs meaningful particle control but cannot tolerate the faster loading associated with a finer screen. It can be a useful middle ground for transfer filtration, equipment protection, and process cleanup when the unacceptable particle range sits below about 150 microns but a 100 micron opening creates unnecessary restriction.
This selection is particularly useful when contamination is variable. With a mixed solids load, a 150 micron screen may provide a wider operating window while still preventing coarse particles from reaching the next stage. It is not automatically the safe option. If the downstream component has a tighter tolerance, a 150 micron screen may allow damaging particles through. Conversely, if downstream equipment can withstand particles far larger than 150 microns, the extra resistance may add cost without a process benefit.
Ask the operating team to define the purpose in one sentence: “retain particles above X to protect Y” or “remove visible oversize before Z.” That short statement keeps selection tied to a real consequence. It also gives the mesh manufacturer a basis for recommending a weave, wire diameter, edge treatment, and finished part design.
A 200 micron filter mesh is suited to applications where higher throughput, lower initial pressure loss, and robust pre-filtration are more important than capturing the smaller particles addressed by the other two options. It can remove coarse debris before pumps, valves, spray devices, secondary filters, or polishing stages. In powder handling, it may serve as a coarse control screen where material above the target size must be separated before further processing.
Because a 200 micron opening is more open than 100 or 150 micron alternatives, it does not replace them when the process specification requires a finer cut point. Its advantage is operational resilience. It can reduce unnecessary change-outs in a dirty feed, accommodate a larger fraction of solids before flow becomes unacceptable, and allow a downstream fine filter to work under a more stable load. The system still needs a defined inspection interval because coarse mesh can blind with fibres, gels, or irregular debris even when its nominal opening is large.

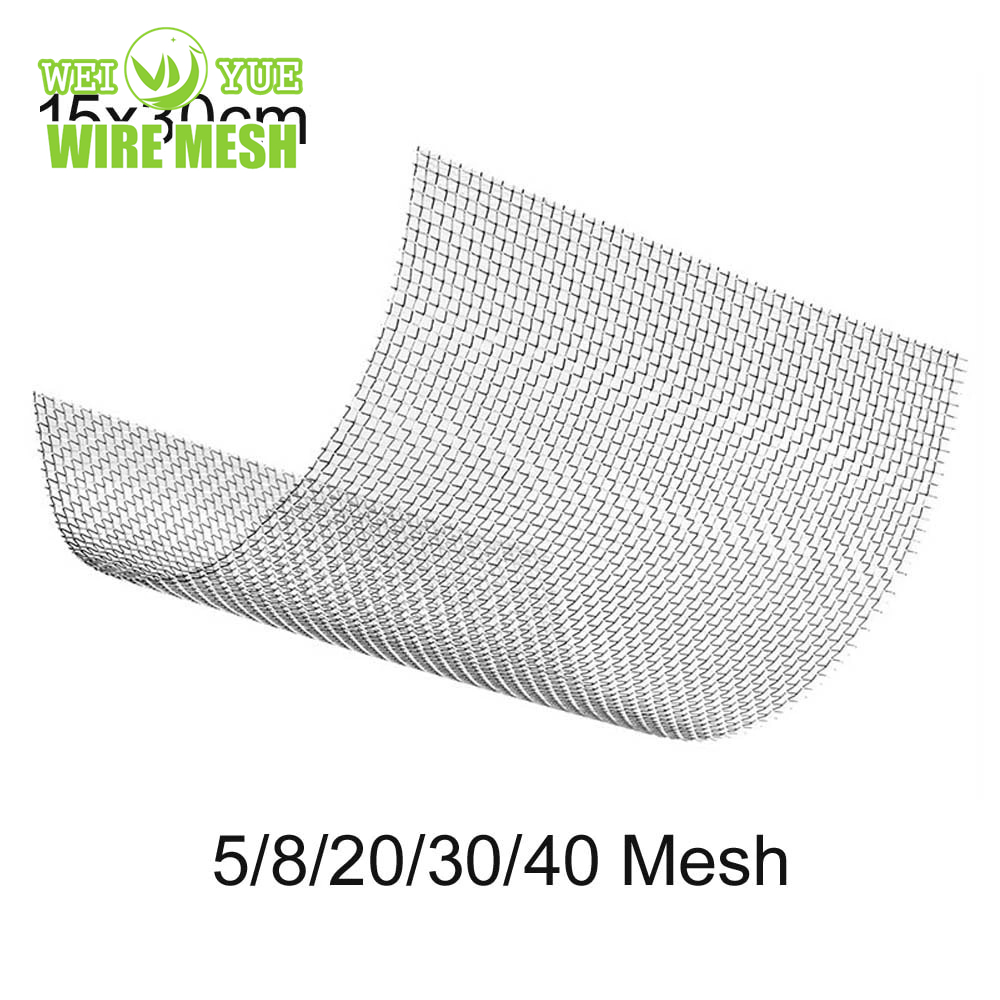

An ultra fine filter mesh order should name more than the micron value. Plain weave is common where a regular square opening and straightforward screen behaviour are required. Twill weave can be used where a particular wire relationship or flexibility is appropriate. Plain Dutch and twill Dutch constructions provide packed wire structures for fine filtration; their nominal pore pathway, thickness, and flow behaviour differ from square opening cloth. Do not substitute a Dutch weave merely by matching a mesh-count number.
Material selection is equally important. 304 stainless steel is widely used where corrosion conditions are moderate and the service environment is compatible with the alloy. 316 or 316L stainless steel may be considered where the chemical environment and corrosion risk justify it. Selection must account for the actual fluid, concentration, temperature, cleaning chemical, chloride exposure, and crevice conditions. A grade name alone is not a blanket compatibility approval.
Weiyue lists an Ultra Fine 304/316 filter mesh range and describes plain, twill, plain Dutch, and twill Dutch weave options. When a filter is to be cut or fabricated, also specify roll width, sheet size, tolerances, edge condition, forming requirement, and whether the part will be spot-welded, framed, pleated, or supported.
Start with the particle that must not pass. Define its size, shape, hardness, quantity, and consequence downstream. Next, describe the fluid or powder: viscosity, temperature, flow rate, pressure, solids concentration, and whether filtration is continuous or batchwise. Then identify the available filtration area and how the element will be cleaned. Backflush, rinse, ultrasonic cleaning, manual brushing, and replacement each place different limits on construction.
Use the following decision logic. If required retention is finer than 150 microns and the process can support added area or pressure drop, begin trials at 100 micron. If the target is a balance between particle control and reliable throughput, evaluate 150 micron. If the job is principally coarse protection or pre-filtration, begin at 200 micron and verify that downstream components remain protected. For every option, compare performance at the same flow and solids load—not only with clean water or an empty screen.
The final specification should include aperture or pore requirement, weave, material, wire diameter, active area, finished geometry, support requirements, tolerance, inspection method, and cleaning conditions. That level of detail prevents a technically correct cloth from becoming an unsuitable finished filter.
The first error is choosing the smallest opening “for safety.” A too-fine screen can create excessive differential pressure, reduce production rate, and require frequent interventions without improving the result. The second is treating a micron size as a universal absolute rating. The third is comparing screen samples with different areas, weave types, or wire diameters and attributing every difference to the listed micron value.

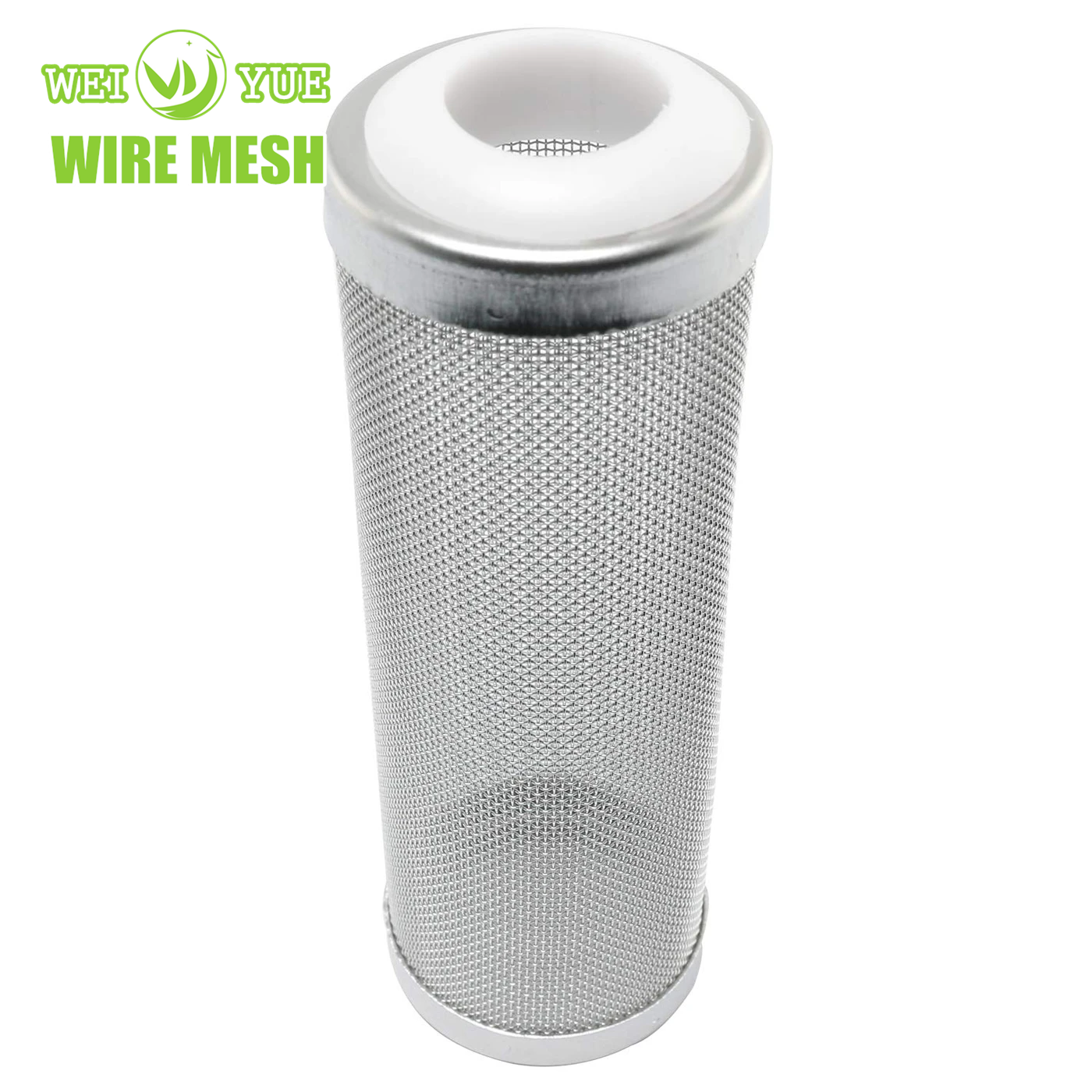

Another common error is overlooking the finished assembly. A mesh disc, basket, tube, or cylinder may contain welds, seams, support layers, gaskets, and dead zones that influence filtration and cleanability. For fabricated parts, discuss the process with the supplier early. Weiyue also provides mesh discs and filter cylinder products, which can be relevant when the selected cloth needs to become a production-ready component.
The best 100, 150, or 200 micron ultra fine filter mesh is the one that meets the retention requirement while maintaining stable, cleanable flow in the finished assembly. Use 100 micron where finer control is truly needed, 150 micron where a balanced operating window is preferable, and 200 micron for coarser protection or staged filtration. Validate the choice against real feed material, then lock down the complete cloth and part specification. That approach gives a purchasing team a clear requirement and gives the process team a filter it can operate reliably.
No. A 100 micron opening retains smaller particles, but it may load sooner and create more pressure loss. It is better only when the process needs that finer level of retention.
Not reliably without wire diameter and weave information. The opening depends on the relationship between the number of wires and their diameter.
Choose based on the actual chemical and cleaning environment, temperature, concentration, and corrosion exposure. Confirm compatibility for the specific service rather than relying on a general grade preference.
Run the actual feed at the required flow and record clean pressure drop, pressure rise with loading, retained material, product quality, and cleaning recovery.
Yes, it can act as a pre-filter for larger debris, but it will not remove particles between 100 and 200 microns. Confirm that the downstream stage has adequate capacity for that remaining load.
Depending on the design, the cloth can be fabricated into discs, baskets, cylinders, tubes, framed panels, and supported multi-layer filter elements.
