Expanded metal mesh is a fascinating material that combines strength and versatility. But what exactly is it, and why is it so important? This article explores the definition, manufacturing process, and key applications of expanded metal mesh, including its use in construction and security fencing. You'll learn about the advantages of using materials like stainless steel wire and how to choose the right mesh for your needs.
Expanded metal mesh is a sheet of metal that has been cut and stretched into a patterned mesh. Instead of welding wires or drilling holes, a solid metal sheet is slit and pulled to create a continuous, joint-free mesh. This process forms diamond or hexagonal openings, making the metal lighter while keeping its strength. It's often used where both durability and airflow or visibility are needed.
The manufacturing process starts with a solid metal sheet, often steel, aluminum, or stainless steel. The sheet feeds into a machine equipped with sharp blades that make precise slits. Then, the sheet is stretched, opening the slits into a mesh pattern without losing any metal. This expansion increases the sheet's surface area and creates the mesh openings.
There are two main types of expanded metal mesh:
● Standard Expanded Metal: Comes directly from the expansion machine, with a raised, textured surface. It offers excellent strength and slip resistance.
● Flattened Expanded Metal: The standard mesh is passed through rollers to flatten it, producing a smoother, thinner sheet. This is better for applications needing a flat surface or reduced thickness.
The mesh's dimensions depend on the original sheet thickness, slit size, and how much the sheet is stretched. The openings and strands are consistent, providing predictable strength and airflow.
● Strength: Because it's made from a single piece of metal, it distributes weight evenly and resists impact better than welded wire mesh.
● Lightweight: The mesh has less metal than a solid sheet but maintains structural integrity, making it easier to handle and install.
● Versatility: It can be made from various metals and customized in thickness, opening size, and shape.
● Durability: No welds or joints mean fewer weak points, enhancing longevity.
● Open Area: The size and shape of openings allow for airflow, light passage, and drainage.
● Cost Efficiency: The process uses all the metal with no waste, reducing material costs.
Example Terms to Know:
● Strands: Solid metal parts between openings.
● Bonds: Points where strands intersect.
● Short Way of Design (SWD): Distance between bonds along the short diagonal.
● Long Way of Design (LWD): Distance between bonds along the long diagonal.
● Short Way of Opening (SWO): Open space between bonds along the short diagonal.
● Long Way of Opening (LWO): Open space between bonds along the long diagonal.
These measurements help specify mesh size and strength accurately.
Expanded metal mesh comes in several types, each suited for specific needs and applications. Understanding these types helps you choose the right mesh for your project.
Standard expanded metal mesh is the mesh straight from the expansion machine. It features a raised, textured surface created when the metal sheet is slit and stretched. This raised pattern adds strength and slip resistance, making it ideal for industrial uses like walkways, platforms, and security fencing. The diamond-shaped openings provide excellent airflow and visibility while maintaining structural integrity.
The raised texture can also help prevent liquids from pooling, which is useful in parts washing or outdoor applications where drainage is important. However, its uneven surface might not be suitable where a flat finish is needed.
Flattened expanded metal mesh is made by passing the standard mesh through rollers to create a smooth, flat surface. This process reduces thickness and creates a thinner, more uniform sheet. Flattened mesh is better for applications requiring a flat surface, such as decorative panels, architectural facades, or parts handling where materials must not snag.
Flattening slightly alters the mesh's dimensions, making openings a bit wider and strands thinner. This can reduce weight and improve workability, especially for bending or welding. However, it may sacrifice some of the slip resistance and rigidity found in standard mesh.
Expanded metal mesh can be made from various metals, each offering unique benefits:
● Stainless Steel: Known for corrosion resistance and strength. Ideal for harsh environments, food processing, and security applications. It requires less maintenance and withstands chemicals and weather well.
● Aluminum: Lightweight and corrosion-resistant. Common in architectural uses, ventilation, and outdoor applications where weight matters. Aluminum mesh is easier to handle and install but generally less strong than steel.
● Copper: Offers excellent corrosion resistance and electrical conductivity. Often used in specialized applications like electromagnetic shielding, decorative panels, and marine environments. Copper’s malleability allows complex shapes but comes at a higher cost.
Each material choice depends on factors like environmental exposure, strength requirements, weight constraints, and budget.
Tip: For outdoor security fencing, choose standard expanded steel mesh for strength and durability; for decorative facades, flattened aluminum mesh offers a sleek, lightweight solution.
The manufacturing of expanded metal mesh involves several key steps that transform a solid metal sheet into a strong, lightweight mesh. Each stage plays a vital role in ensuring the mesh's quality, durability, and performance.
The process starts with selecting a suitable metal sheet. Common metals include steel, aluminum, and stainless steel. The choice depends on the application's requirements for strength, corrosion resistance, and weight. The sheet must be clean and free from rust, oil, or dirt to ensure smooth processing and good final quality.
Before expansion, the sheet is cut to the desired size. Accurate dimensions help maintain consistency in the mesh pattern and ease further fabrication.
Next, the sheet moves into a machine equipped with sharp blades. These blades make precise slits in the metal, arranged in a specific pattern depending on the mesh design. Sometimes, holes are punched to assist in the expansion process or to create unique mesh patterns.
This step is crucial because the size and placement of slits determine the final mesh opening size and shape. The cuts must be clean and accurate to avoid weak points.
After slitting, the sheet undergoes expansion. The metal is stretched mechanically, causing the slits to open and form the mesh's characteristic diamond or hexagonal shapes. This stretching does not remove any metal; instead, it redistributes the material, increasing the sheet's surface area.
The expansion ratio—the amount the sheet is stretched—affects the mesh's strength and openness. A higher expansion ratio creates larger openings but reduces strand thickness, impacting strength. Manufacturers balance these factors based on the product’s intended use.
The expansion process creates a continuous, joint-free mesh. This continuity enhances strength and durability compared to welded or woven meshes.
Once expanded, the mesh may undergo finishing processes to improve its usability and appearance:
● Trimming: Excess edges are trimmed for smooth, clean borders.
● Flattening: Some meshes are passed through rollers to flatten the raised texture, creating a smooth surface better suited for decorative or handling applications.
● Surface treatments: Coatings such as galvanizing, painting, or powder coating can be applied to enhance corrosion resistance and aesthetics.
● Leveling: The mesh is flattened and leveled to remove waves or buckles, ensuring it lies flat for installation.
Quality control checks dimensions, strand thickness, opening size, and overall flatness. Strength tests may also be performed to ensure the mesh meets load-bearing requirements.
Expanded metal mesh is a versatile material widely used across many industries due to its unique combination of strength, durability, and openness. Its design allows air, light, and fluids to pass through while providing structural support and security. Here are some common applications where expanded metal mesh shines:
Expanded metal mesh is popular in construction for both functional and aesthetic purposes. It reinforces concrete, improving structural integrity. Architects use it for facades, sunshades, and screens, offering a modern look while allowing natural ventilation and light. Its durability and corrosion resistance make it suitable for exterior cladding and ceiling panels. For example, parking garages often feature expanded metal facades to enhance airflow and reduce heat buildup.
Its strength and rigidity make expanded metal a top choice for security fencing. The continuous, joint-free mesh is difficult to cut or break, offering excellent perimeter protection for industrial sites, warehouses, and government buildings. The small openings provide visibility for surveillance while keeping intruders out. It's also used for animal enclosures in agricultural settings, combining security and ventilation.
Expanded metal mesh works well in filtration systems where airflow or liquid flow is needed without debris passage. Industrial filters use it to separate particles while maintaining high flow rates. In water treatment plants, it screens out contaminants efficiently. The mesh’s open area and strength make it ideal for harsh environments where durability is critical.
Safety is paramount in industrial walkways and platforms. Expanded metal mesh offers excellent slip resistance thanks to its raised surface texture. It supports heavy loads while allowing water and debris to pass through, preventing puddles and slips. Its lightweight nature makes installation easier compared to solid metal grates. Factories, refineries, and construction sites commonly use it for catwalks and stair treads.

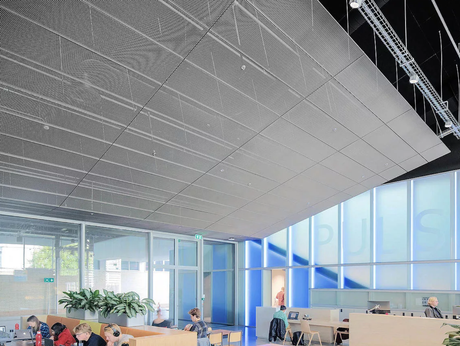

Beyond industrial uses, expanded metal mesh adds visual interest in interior and exterior design. Designers use it for partitions, ceilings, and wall panels, creating unique textures and patterns. Its ability to be flattened or left raised allows customization for various looks. Artists incorporate it into sculptures and installations, taking advantage of its strength and flexibility.
Expanded metal mesh offers several benefits that make it a preferred choice across industries. Its unique manufacturing process and material properties provide advantages in strength, cost, versatility, and environmental impact.
Expanded metal mesh is made from a single sheet of metal that is cut and stretched, creating a continuous, joint-free structure. This design distributes weight evenly and resists impact better than welded or woven wire meshes. The absence of welds or joints means fewer weak points, enhancing its durability. This strength makes it suitable for heavy-duty applications like walkways, security fencing, and industrial platforms.
The diamond or hexagonal openings also contribute to its structural rigidity, allowing the mesh to support significant loads without bending or breaking. For example, in industrial settings, expanded metal walkways provide safe, slip-resistant surfaces that withstand constant foot traffic and heavy equipment.
Expanded metal mesh maximizes material use by expanding the entire metal sheet without cutting out pieces. Unlike perforated metal, which wastes material during hole punching, expanded metal produces no scrap. This efficient use reduces raw material costs.
Additionally, because the mesh is a single piece, it requires less welding and labor to fabricate compared to wire mesh baskets or welded wire products. This reduction in manufacturing steps lowers production time and costs. For businesses, these savings translate to more affordable products without sacrificing quality.
Expanded metal mesh can be made from various metals, including steel, aluminum, stainless steel, and copper, each offering unique properties for different environments. The mesh's thickness, opening size, and pattern can be customized to meet specific project needs.
Its versatility extends to surface finishes too. Expanded metal can be left raised for slip resistance or flattened for a smooth appearance. It can be coated, painted, or galvanized to improve corrosion resistance or aesthetics. This adaptability allows designers and engineers to tailor the mesh for applications ranging from architectural facades to filtration screens.
The manufacturing process of expanded metal mesh is environmentally friendly. Since no material is wasted, it conserves natural resources. Many expanded metal products use recyclable metals like aluminum and steel, supporting circular economy principles.
Moreover, expanded metal’s open structure allows for natural ventilation and light passage, reducing the need for artificial lighting and air conditioning in buildings. This can lower energy consumption and carbon footprint, aligning with sustainable construction goals.
Expanded metal mesh and wire mesh often get confused, but they differ in key ways. Wire mesh consists of individual wires woven or welded together, forming a grid. Expanded metal mesh starts as a solid sheet cut and stretched into a continuous mesh pattern.
Structure and Strength: Wire mesh has joints where wires cross, which can be weak points. Expanded metal is one solid piece, so it distributes weight evenly and resists impact better. This makes expanded metal stronger and more rigid, ideal for heavy-duty uses like walkways and security fencing.
Appearance and Texture: Wire mesh has a uniform, flat surface. Expanded metal has a raised, textured pattern, especially in standard types, providing slip resistance. Flattened expanded metal offers a smoother surface but still retains strength.
Manufacturing and Cost: Wire mesh requires weaving or welding many wires, increasing labor and potential weak spots. Expanded metal uses a single sheet, with no welding needed, reducing production time and costs. It also wastes no material, unlike perforated metal.
Applications: Wire mesh suits light-duty tasks like insect screens, sieves, or lightweight fencing. Expanded metal excels where strength and durability matter, such as industrial platforms, heavy-duty fencing, and architectural facades.
Though both have openings, expanded metal mesh and perforated metal differ in manufacturing and properties.
Manufacturing Process: Perforated metal involves punching holes into a solid sheet, removing material and creating waste. Expanded metal cuts and stretches the sheet without removing metal, making it more material-efficient.
Strength and Weight: Because perforated metal removes metal, it can be weaker and heavier for the same open area. Expanded metal maintains strength by redistributing metal during expansion, resulting in a lighter, stronger mesh.
Open Area and Design: Perforated metal offers precise hole shapes and sizes, useful for decorative patterns or fine filtration. Expanded metal has diamond or hexagonal openings, better for load-bearing and airflow applications.
Cost and Waste: Perforated metal generates scrap, increasing material costs. Expanded metal produces no waste, making it more cost-effective.
Applications: Perforated metal suits decorative panels, acoustic screens, and fine filtration. Expanded metal fits industrial walkways, security fencing, and architectural facades needing strength and durability.
Selecting the right expanded metal mesh depends on several factors. Understanding these helps ensure your project meets strength, durability, and aesthetic needs.
● Application Requirements: Identify the purpose of the mesh. Will it be used for security fencing, architectural facades, filtration, or walkways? Each use demands different strength, opening size, and surface texture.
● Load and Strength Needs: Consider the weight the mesh must support. Heavier loads require thicker strands and smaller openings to maintain structural integrity.
● Environmental Exposure: Outdoor or corrosive environments need corrosion-resistant materials like stainless steel or aluminum. Indoor use may allow more cost-effective options like mild steel.
● Surface Texture: Decide if you need a raised, slip-resistant surface (standard expanded metal) or a smooth, flat finish (flattened expanded metal).
● Weight Constraints: For applications where weight matters, such as aerospace or automotive, lightweight materials like aluminum or flattened mesh are preferable.
● Budget: Material choice and mesh type affect cost. Stainless steel and copper are pricier but offer superior corrosion resistance and durability.
● Security Fencing: Use standard expanded steel mesh for high strength and difficulty to breach. Choose galvanized or stainless steel for rust resistance.
● Architectural Facades: Flattened aluminum or stainless steel mesh offers a sleek look with good durability and light weight.
● Filtration and Separation: Opt for stainless steel expanded metal with precise opening sizes to balance flow and particle retention.
● Walkways and Platforms: Standard expanded metal provides slip resistance and strength. Galvanized steel is common for outdoor use.
● Decorative Panels: Flattened expanded metal in aluminum or copper adds aesthetic appeal and versatility in design.
● Stainless Steel: Best for harsh environments, food processing, or chemical exposure. Look for grades like 304 or 316 for enhanced corrosion resistance.
● Aluminum: Lightweight and corrosion-resistant, ideal for ventilation or decorative applications.
● Copper: Choose for electrical conductivity or marine environments. Its malleability suits complex designs.
● Mild Steel: Cost-effective but requires protective coatings to prevent rust.
● Coatings and Finishes: Consider powder coating, galvanizing, or anodizing to extend life and improve appearance.
Expanded metal mesh is a durable, lightweight material made by cutting and stretching metal sheets. It offers strength, versatility, and cost-effectiveness, suitable for various applications like security fencing and architectural facades. Future trends may focus on enhanced customization and sustainable manufacturing. Weiyue provides superior expanded metal mesh, ensuring high quality and performance. Their products are designed to meet diverse industry needs, offering customers innovative solutions that combine strength and efficiency.
A: Expanded Metal Mesh Stainless Steel Wire is a durable mesh made by cutting and stretching a stainless steel sheet into a diamond or hexagonal pattern, offering strength and corrosion resistance.
A: It's used for reinforcing concrete, security fencing, and architectural facades due to its strength, durability, and ability to allow airflow and light passage.
A: Expanded Metal Mesh offers better strength and durability as it is a continuous piece without weak points, unlike wire mesh which has joints.
A: Benefits include corrosion resistance, strength, lightweight nature, and versatility, making it ideal for harsh environments and demanding applications.
A: Expanded Metal Mesh is more cost-effective as it produces no waste during manufacturing, unlike perforated metal which generates scrap.
