| Product Description For Stainless Steel Wire
Weiyue stainless steel wire can be divided into hard wire and fine wire according to the wire diameter. The wire diameter range of hard wire is 0.08mm-1.8mm, and the wire diameter range of fine wire is 0.015-0.08mm.
 | Product Name | Stainless Steel Micro Wire |
| Grade | 304, 304L, 316, 316L, etc | |
| Wire Diameter | 0.015mm - 0.08mm | |
| Condition | soft wire, semi-soft wire, hard wire | |
| Surface | electrolysis bright, bright, matt | |
| Type | Hydrogen, Cold rolled, light | |
| Application | Construction, Fencing, Manufacturing | |
| Standard | AISI. ASTM. EN. BS. GB. DIN. JIS. etc | |

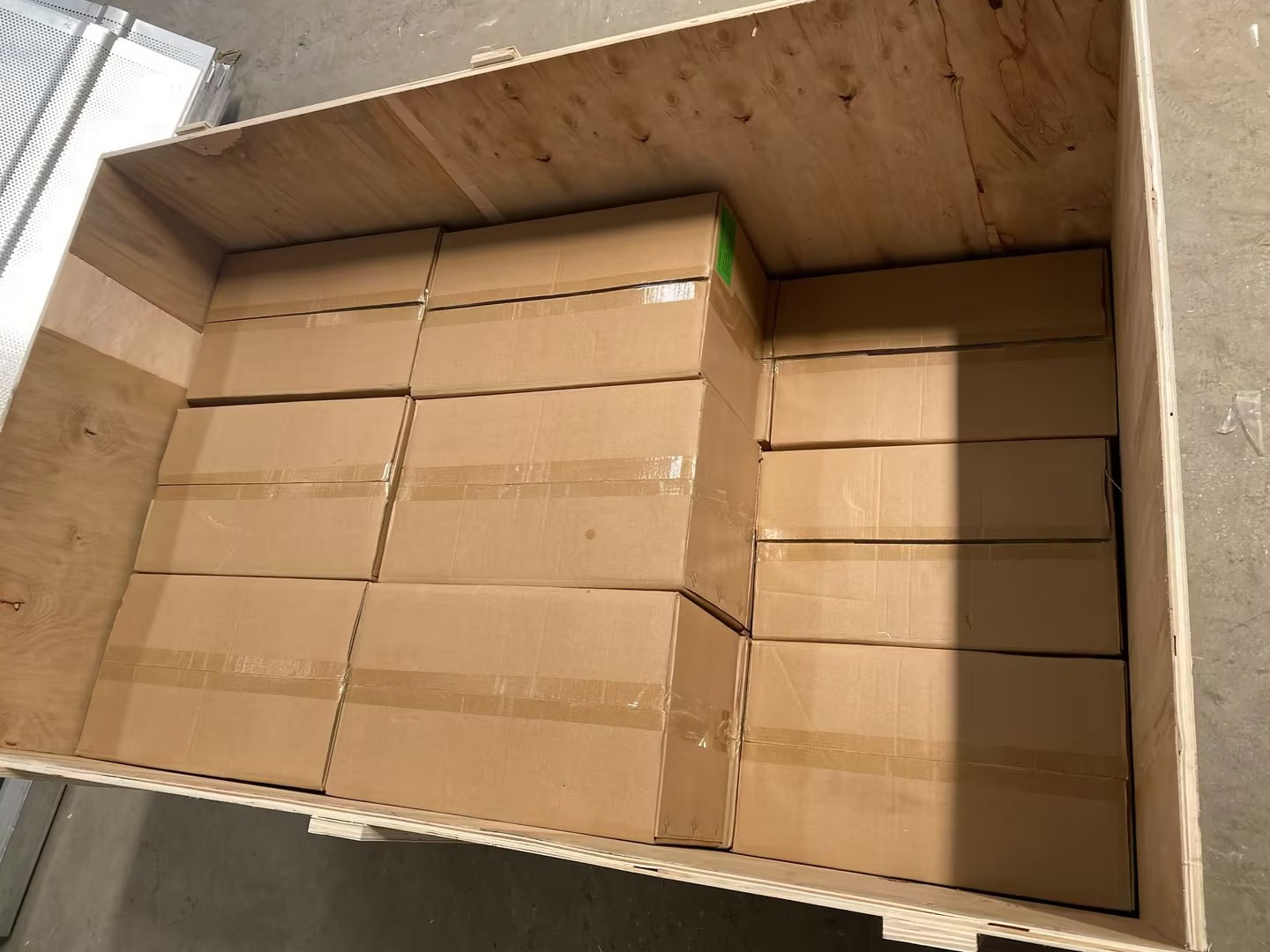

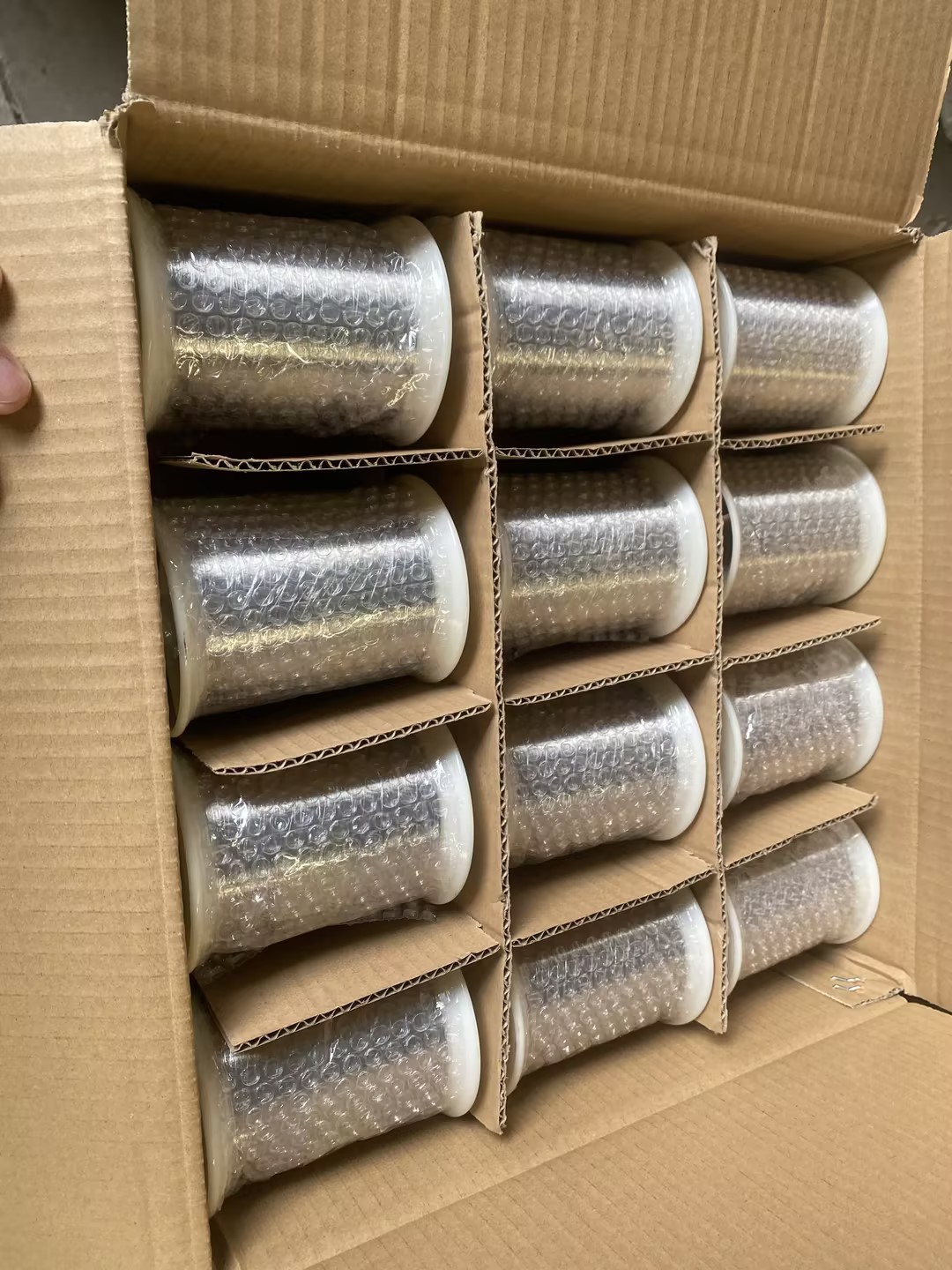

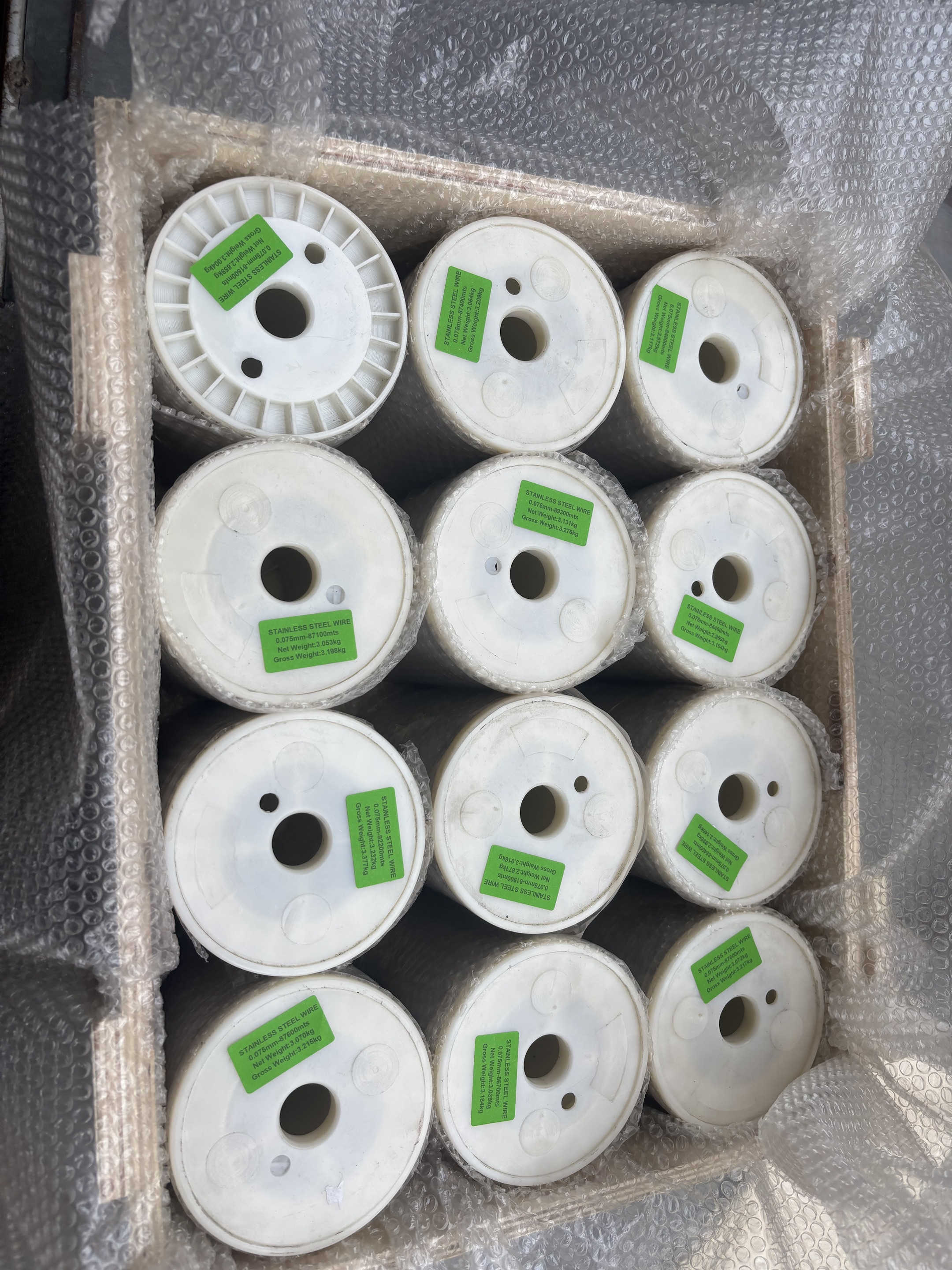

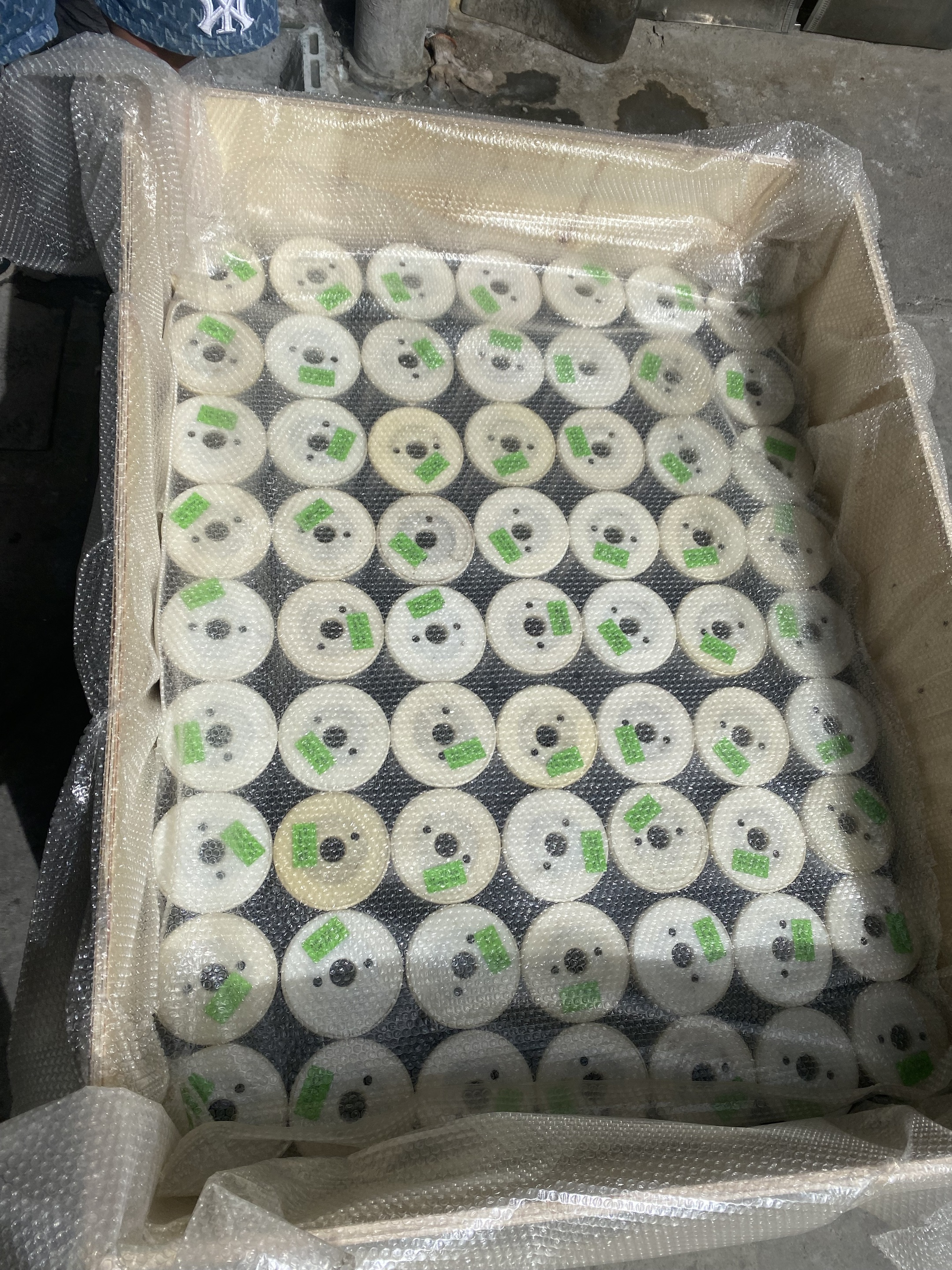

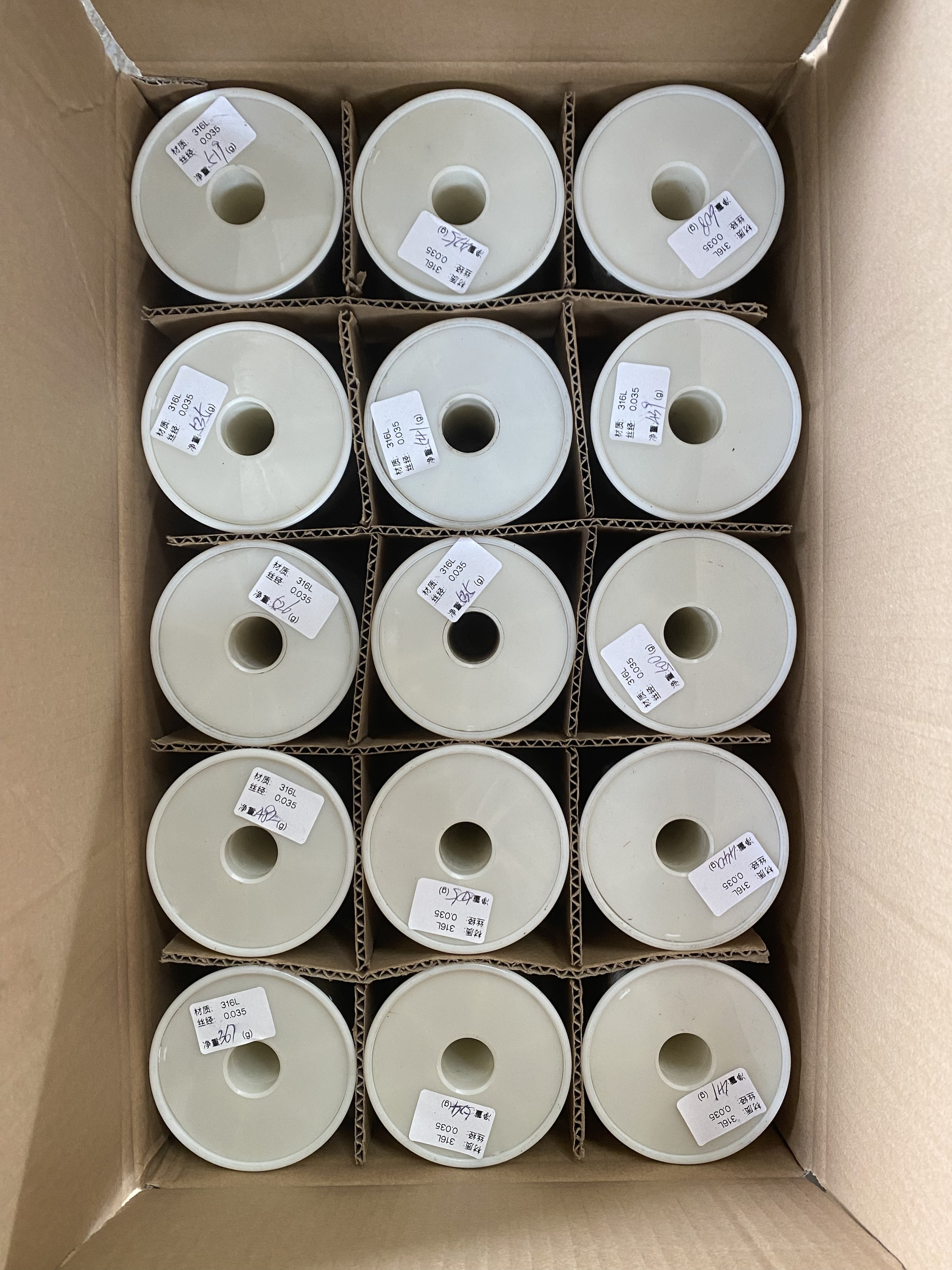

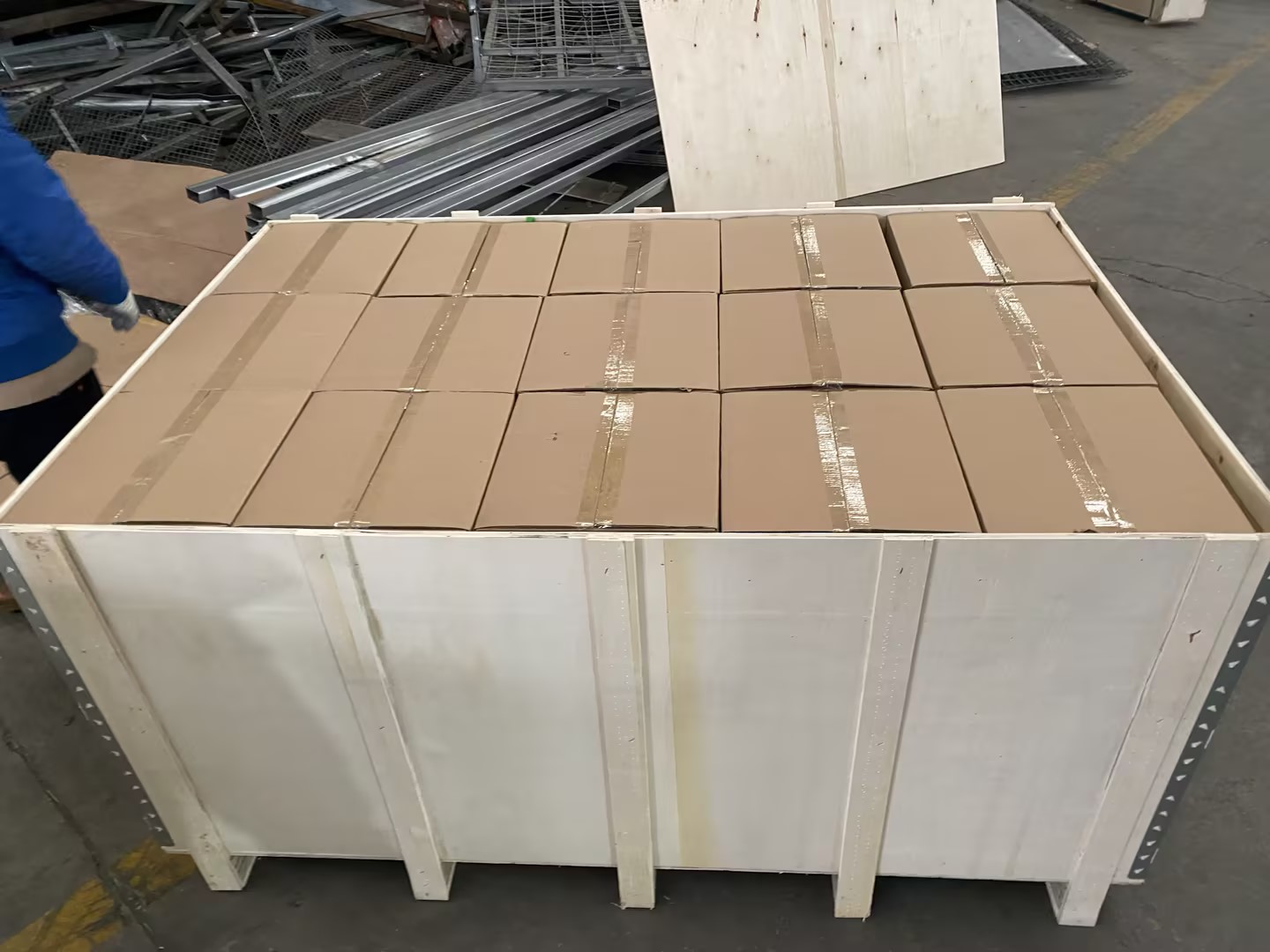

| Package | Standard Seaworthy Package -- Wooden Box | |
| Sample/Trial Order | Available |
| Spool Details For Stainless Steel Wire
Under normal circumstances we are the following specifications, but according to customer requirements for the production of other spools.
| Spool Type | Spool Picture | D1(mm) | D2(mm) | D3(mm） | L1(mm) | L2(mm) | Spool Weight(g) | Weight Max capacity(g) |

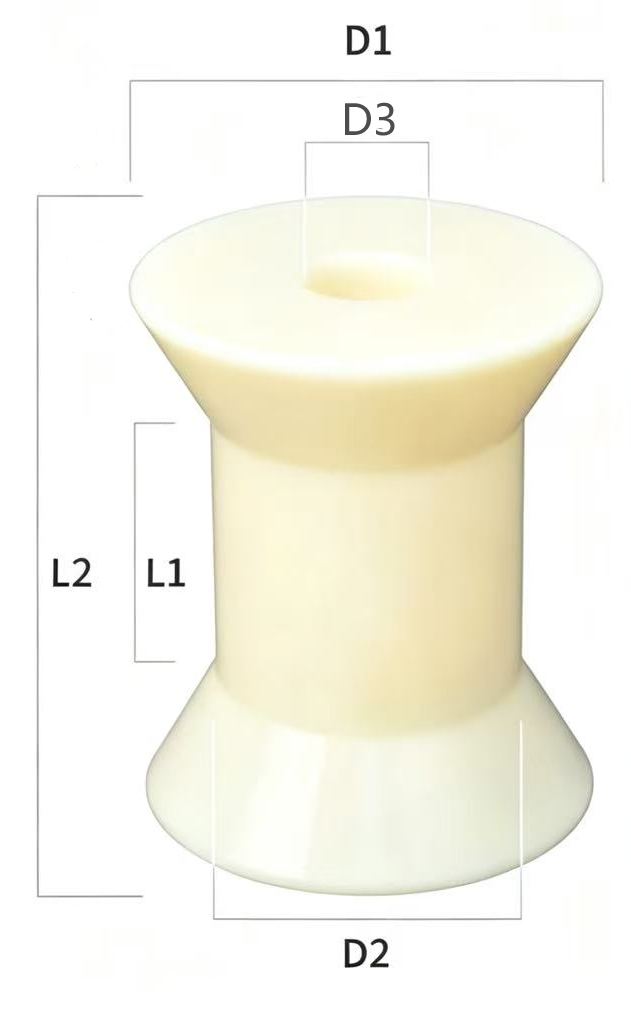

| KK80 |
| 80 | 53 | 20 | 100 | 70 | 82 | 800 |

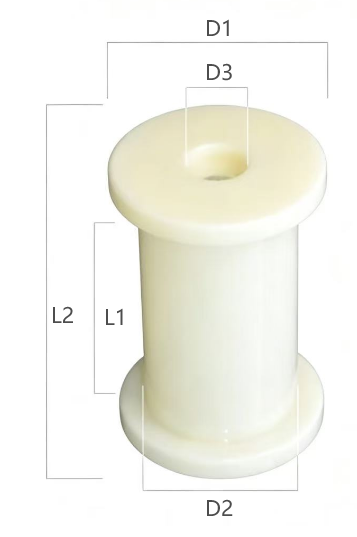

| PL-1 |  | 80 | 60 | 20 | 100 | 120 | 76 | 900 |

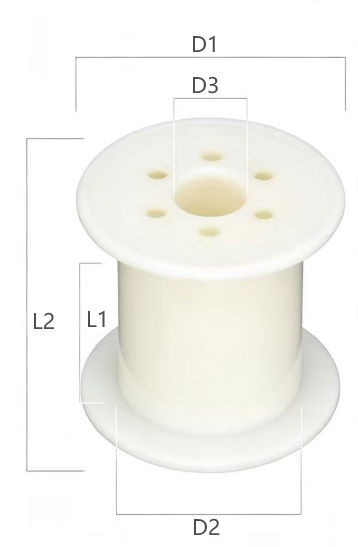

| K60 |  | 60 | 44 | 16 | 52 | 60 | 40 | 200 |

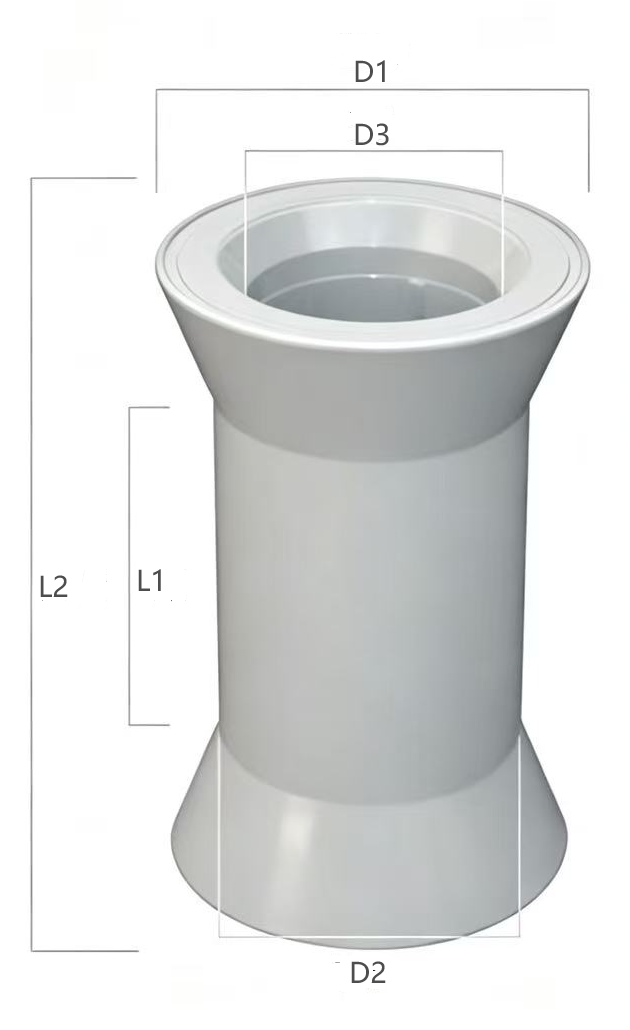

| HK100 |  | 100 | 74 | 59 | 85 | 160 | 274 | 1500 |

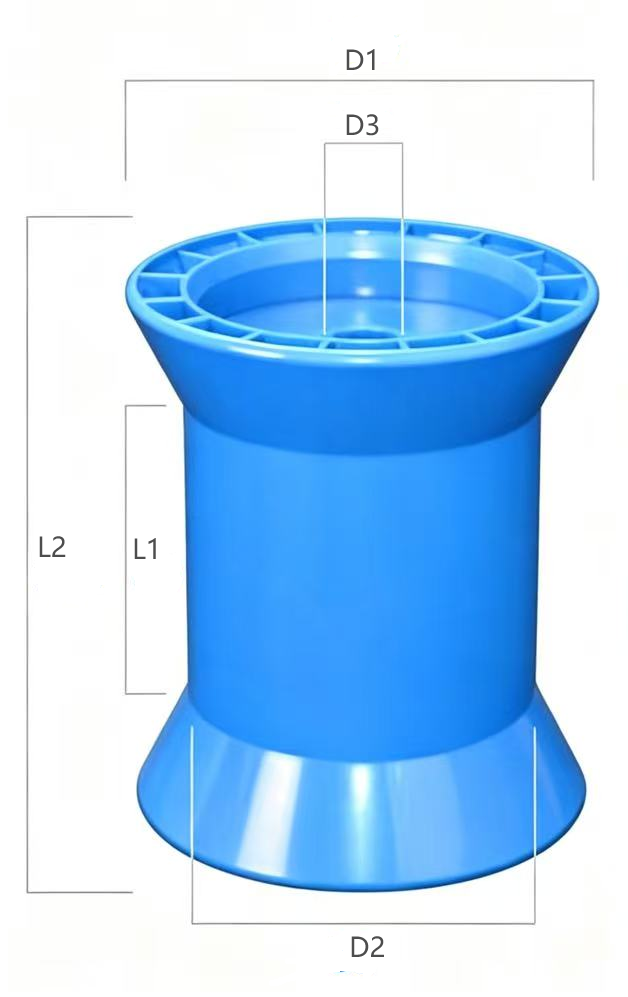

| HK115 |  | 115 | 88 | 25 | 80 | 140 | 280 | 1500 |
| Applications For Stainless Steel Wire
| Product Inspection For Stainless Steel Wire

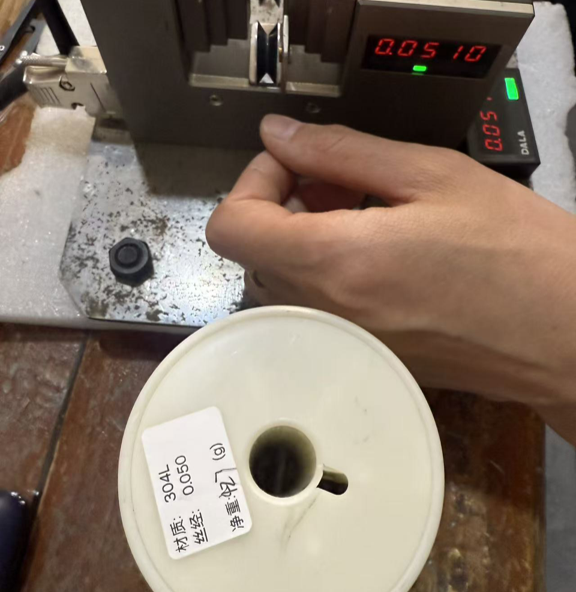

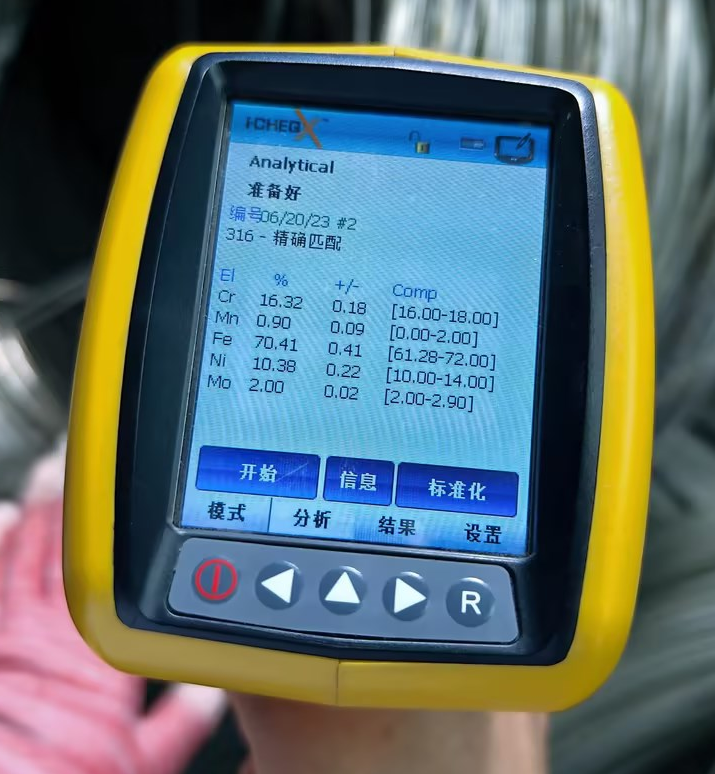

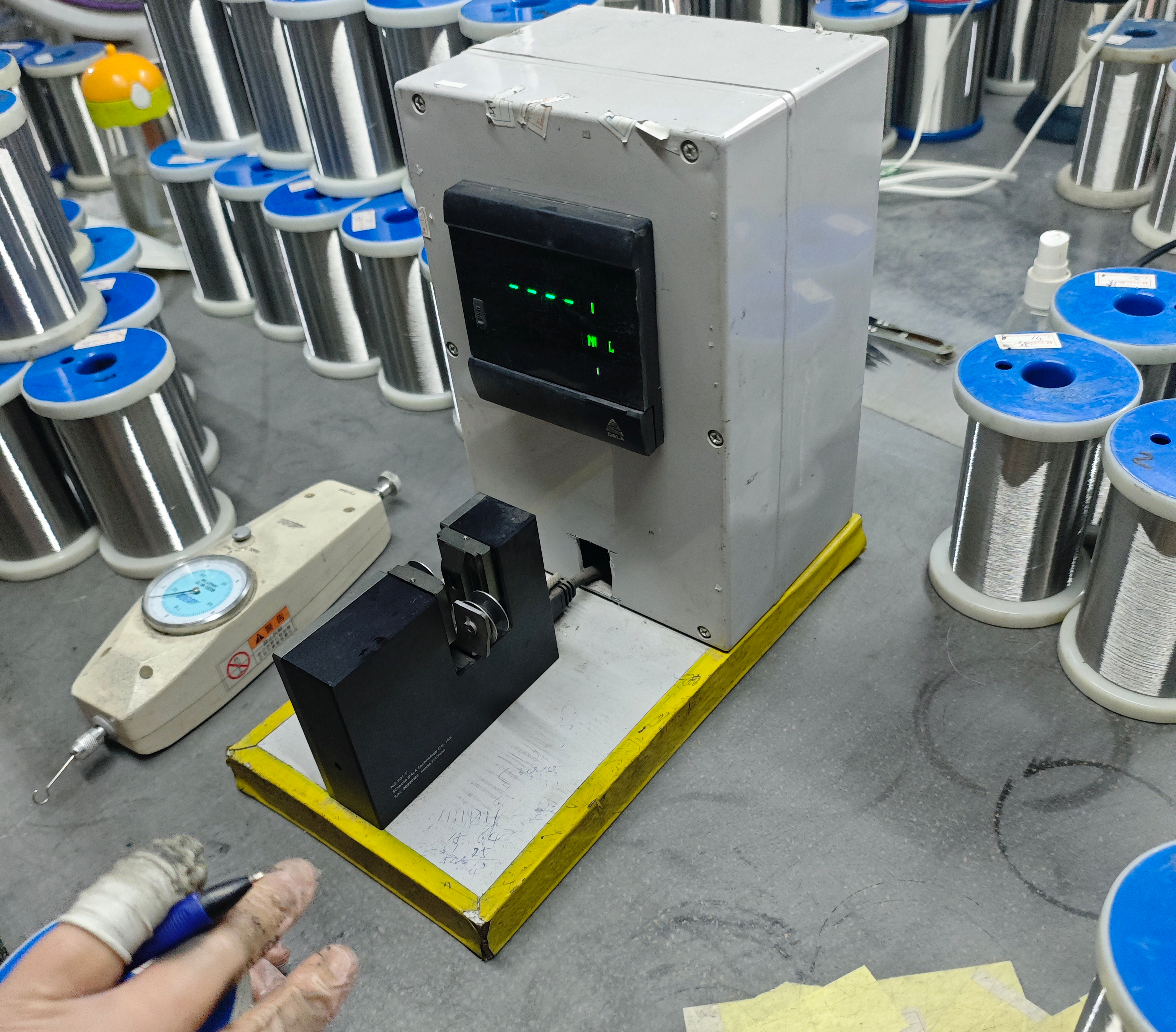

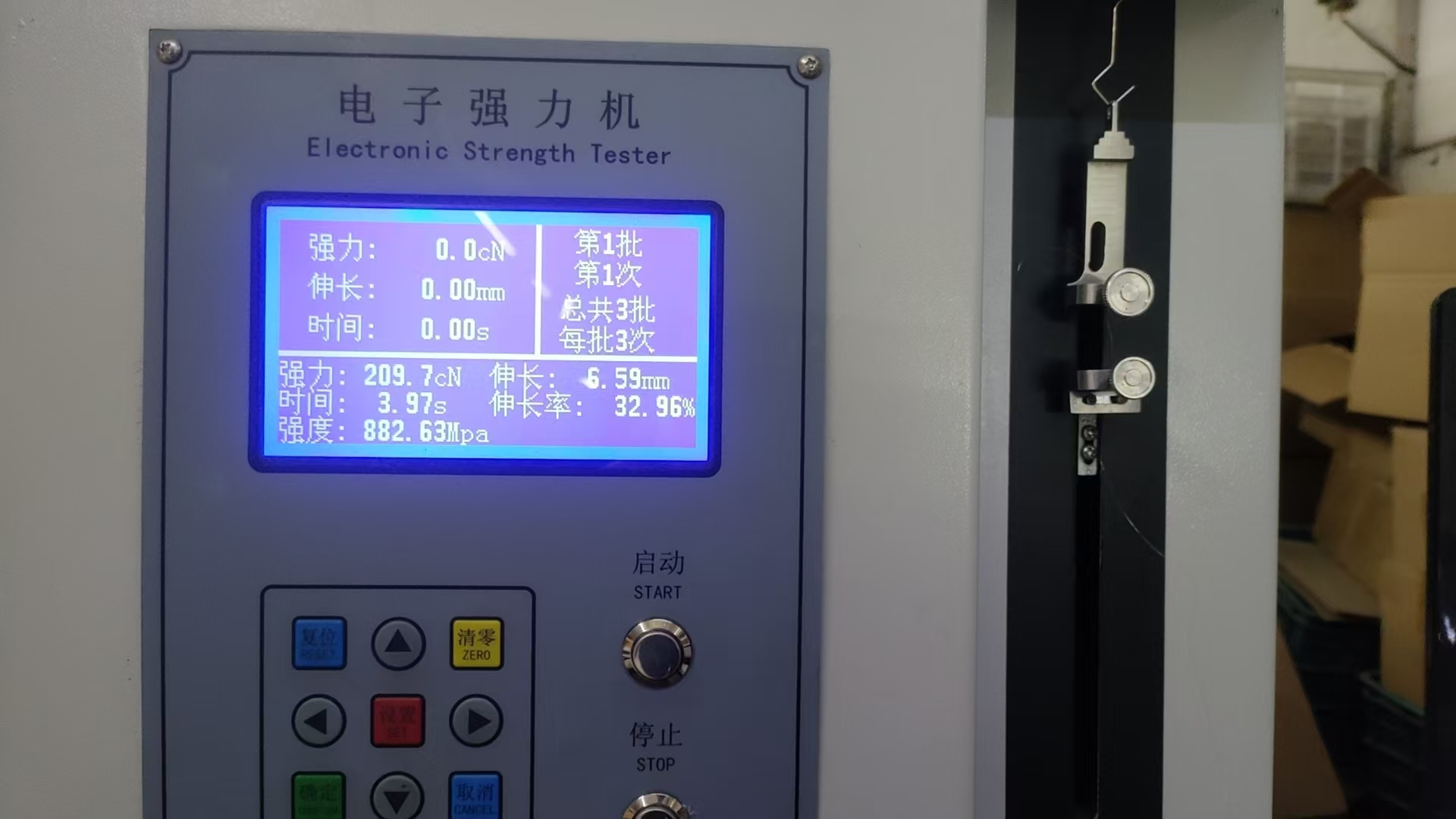

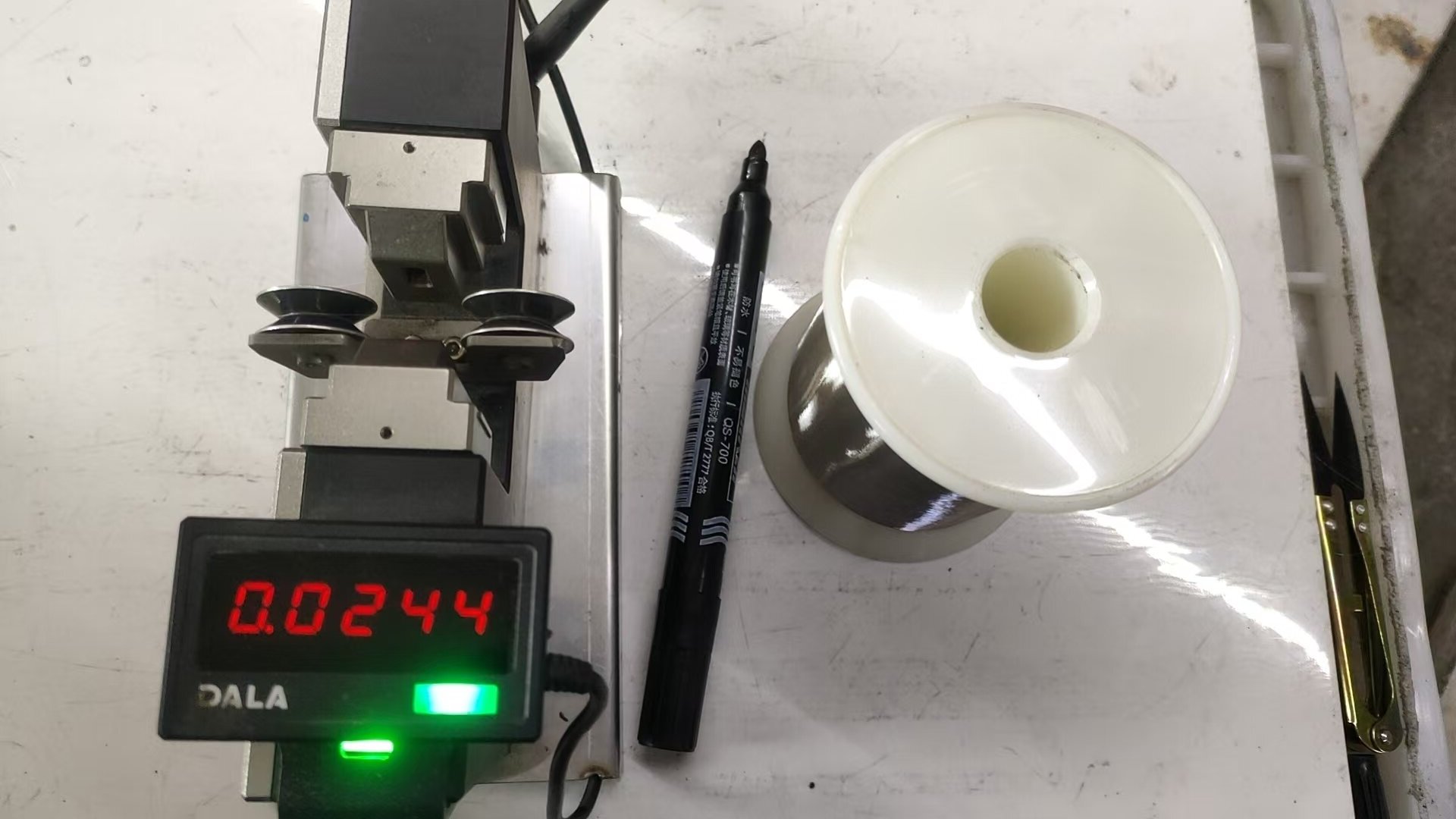

Wire Diameter Inspection Tensile Inspection Raw Material Inspection
| Raw Material Date Sheet For Stainless Steel Wire
TYPE AISI | C Max | Mn Max | P | S | Si Max | Cr | Ni | Cu | Mo |
% | % | % | % | % | % | % | % | % | |
304 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 18.00/20.00 | 8.00/10.00 | - | - |
304L | 0.03 | 2.00 | 0.045 | 0.03 | 1.00 | 18.00/20.00 | 8.00/12.00 | - | - |
316 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 16.00/18.00 | 10.00/13.00/ 14.00 | - | 2.00/2.50/3.00 |
316L | 0.03 | 2.00 | 0.045 | 0.03 | 1.00 | 16.00/18.00 | 10.00/14.00 | - | 2.0-3.0 |
| Certifications For Stainless Steel Wire
