Battery-material production depends on consistent powder handling. Whether the material is an active component, conductive additive, precursor, or another dry process powder, unwanted oversize, soft agglomerates, foreign matter, and inconsistent particle fractions can affect downstream mixing, coating, compaction, and quality control. Ultra fine stainless steel mesh is used because it provides a defined mechanical separation surface that can be specified, supported, inspected, and incorporated into screening equipment. The mesh is one part of a controlled process—not a substitute for material characterisation or contamination management.
Ultra fine mesh helps define a repeatable separation point for battery powders and agglomerates.
Mesh selection must consider particle-size distribution, powder flow, moisture sensitivity, static, loading, and the desired yield.
Stainless steel is valued for strength, cleanability, and compatibility assessment, but alloy grade alone does not prevent contamination.
A complete screen system needs suitable tensioning, support, cleaning, inspection, and change-control procedures.
In powder processing, a screen does not “purify” a material in the broadest sense. It separates material according to its physical interaction with the openings. Oversize particles and agglomerates are retained; particles that can pass through continue. The result depends on the mesh aperture or effective pore path, vibration or feed conditions, dwell time, the condition of the cloth, and powder behaviour. Fine, cohesive, or electrostatically active powders can behave very differently from dry, free-flowing granules.
This is why the specification should begin with the process objective. Is the screen removing foreign particles? Breaking a process stream into a controlled size fraction? Protecting a downstream mill or coating unit? Recovering usable fines from a recycle stream? Each objective needs a different validation plan. A screen selected only from a mesh-count conversion may give a technically plausible number while missing the actual yield and contamination requirements.

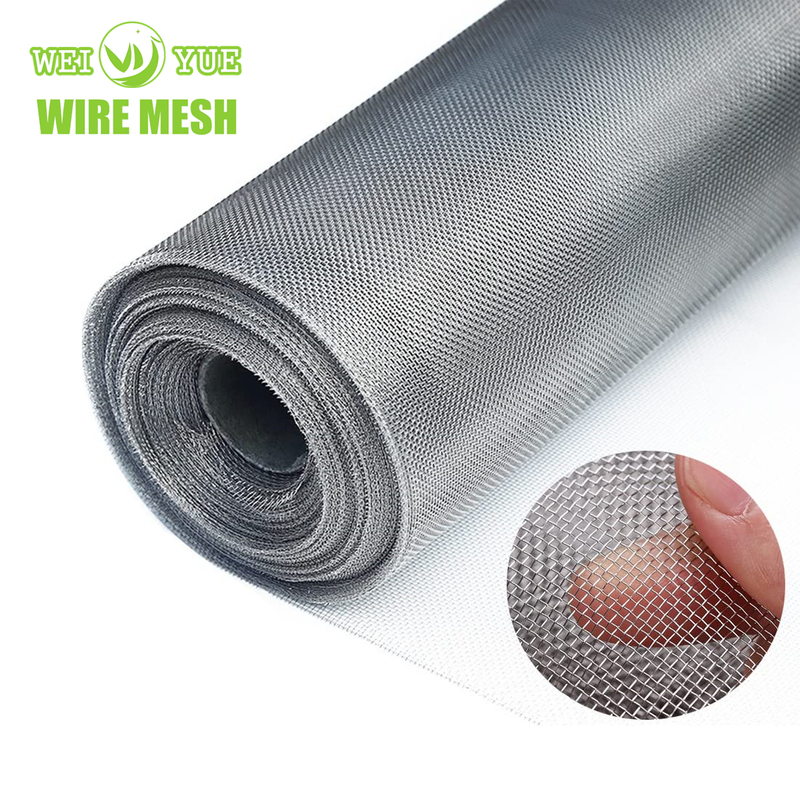

Stainless steel woven mesh combines fine openings with mechanical integrity and the ability to be fabricated into tensioned screens, discs, cylinders, and supported elements. Compared with a disposable media approach, a metal cloth can be inspected for damage, cleaned where the process permits, and specified with defined wire diameter and weave. Its suitability still has to be assessed against the powder chemistry, the equipment, and the site’s contamination-control program.
Fine cloth also offers design options. Plain weave can be appropriate for regular square openings. Dutch constructions provide tightly packed wire arrangements and can be selected for fine-filtration behaviours different from open square cloth. The correct choice must be tied to the screening process. A dense weave may improve a retention target but reduce open area and make blinding more likely if the powder is cohesive or damp.
Battery powder screening often focuses on controlling oversize and removing agglomerates before a sensitive step. Large particles can cause coating defects, inconsistent dispersion, or handling problems; however, selecting the smallest possible opening is not the solution. An overly fine screen can reject acceptable material, reduce throughput, increase residence time, and cause repeated handling. Those effects can create their own quality risks.
The practical target is a verified cut that supports the downstream process. Use representative production material, not only a laboratory-grade substitute. Measure feed distribution, passing fraction, retained fraction, throughput, and the composition of each fraction. Review the screen after a defined period for blinding, wire wear, tears, loose edges, and retained contamination. Repeat the trial at normal and challenging conditions, such as the high end of moisture or solids loading that the process permits.
Fine powder can blind a mesh when particles bridge openings, adhere to wire, or form a cake that restricts passage. Blinding is not simply an inconvenience: it changes the effective separation point and may reduce yield while appearing to increase rejection quality. Common contributing factors include moisture, cohesive fines, oily residue, inadequate vibration, an unsuitable feed rate, and electrostatic attraction.
Investigate the cause before changing mesh aperture. If the problem is moisture or agglomeration, a coarser screen may only hide it. If the screen is undersized for the required throughput, more area or an improved feeder may be the real answer. If static is significant, evaluate grounding, humidity control, equipment design, and site-approved antistatic practices. Any change must be reviewed for its effect on product quality and safety.
Stainless steel mesh is a metal component in a high-value powder process. It must be managed as such. The risk-control plan should cover incoming inspection, traceable material specification, screen integrity checks, installation, handling, cleaning, storage, and retirement criteria. A torn or worn screen should not remain in service because it can change both separation and foreign-material risk.

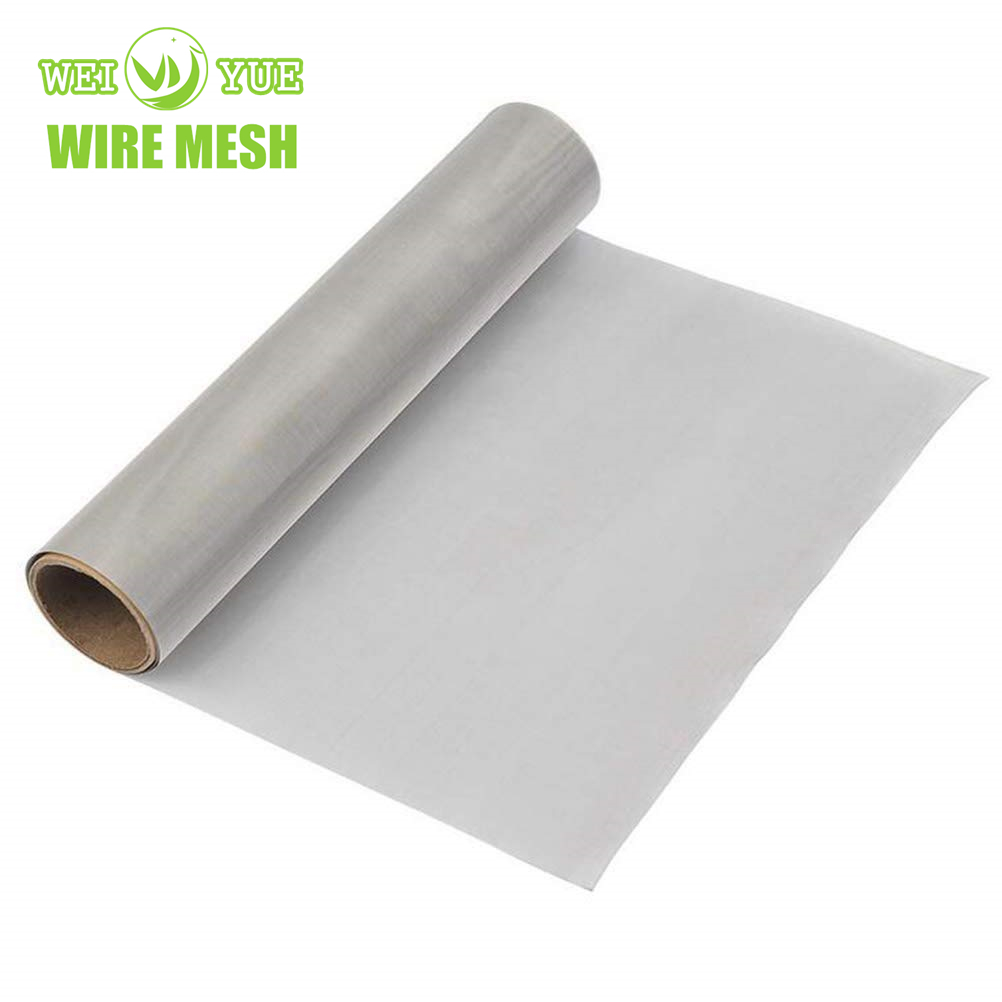

Alloy selection is one component of this plan. Weiyue lists a 316L 400 mesh stainless steel wire mesh for precision battery powder filtration. This demonstrates that fine stainless mesh can be specified for battery-related filtration duties; it does not eliminate the need for a site-specific compatibility and contamination assessment. The finished assembly, support frame, seams, and cleaning process deserve the same scrutiny as the cloth.
Start with the maximum particle or agglomerate that may pass, the acceptable oversize percentage, and the downstream sensitivity. Then evaluate how the powder presents itself to the screen. High solids loading and a wide particle-size distribution may need more active area or staged screening. A fine aperture may be suitable for quality control but unsuitable as the first screen in a dirty recycle stream.
Wire diameter matters because it influences mechanical robustness and open area. Weave matters because it influences opening geometry, thickness, and cleaning response. Active area matters because it determines the load carried by each opening. Do not ask for “400 mesh” alone. State the required separation result, nominal construction where known, material grade, tolerance, screen dimensions, support, and operating conditions.
The best mesh cannot compensate for poor installation. Tension, frame condition, gasket integrity, clamp security, and vibration settings affect the result. Install the screen using a documented procedure that prevents creasing, unsupported contact, and accidental damage. Before release, confirm identification, correct orientation if relevant, condition, and fit.
During operation, track feed rate, throughput, yield, screen differential indicators where present, visual condition, and cleaning frequency. Establish a response rule for abnormal rejection or throughput: inspect the screen, compare against a retained reference sample, and determine whether the cause is material change, equipment condition, or cloth damage. That discipline turns the mesh from a commodity part into a controlled process parameter.
Cleaning should remove retained powder without bending wires, enlarging openings, or introducing residues. The method depends on the equipment, powder hazards, and validated contamination controls. Use only approved procedures and confirm that the mesh is completely dry before it returns to a moisture-sensitive powder process. If cleaning is not reliably effective, replacement may be safer than repeated aggressive cleaning.
Any change to aperture, alloy, wire diameter, weave, frame, support, or supplier specification should go through change control. Compare the new configuration against the validated baseline. The data should show effects on particle distribution, yield, throughput, downstream performance, and contamination monitoring before permanent adoption.
The screen result should be checked with an appropriate sampling plan. Take feed, pass, and retain samples at defined times, especially during start-up, after material changes, and after cleaning. The analytical method should be capable of distinguishing the particle-size or foreign-material condition that the screen is intended to control. A single visual observation of retained powder is useful, but it cannot establish that the passing stream has met its target distribution.
Plan the service life of the screen rather than waiting for obvious failure. The plan may include a maximum run time, a maximum number of cleaning cycles, a maximum pressure or throughput change, and immediate removal triggers. The correct threshold depends on the application; a high-value cathode or anode material may warrant tighter controls than a noncritical recovery duty. Do not use an arbitrary calendar interval without considering actual load and equipment performance.
Document how a spare screen is identified and released. A replacement that has the same headline mesh count but different wire diameter, weave, support, or tension can change throughput and screening behaviour. Keep the approved construction controlled in the purchasing specification, and compare incoming parts against it before they enter a quality-critical line. These basic controls make it easier to distinguish a material variation from a screen-performance issue during troubleshooting.
A fine screen can retain oversize particles but it is not a complete contamination strategy. Protect the process with clean transfer equipment, controlled maintenance practices, suitable magnets or other approved controls where relevant, environmental management, and traceable material handling. The exact system must reflect the powder chemistry and the plant’s quality requirements. The purpose of this broader view is not to diminish mesh selection; it is to ensure the mesh is assigned a realistic, verifiable role.
After a successful trial, translate the result into routine control points. Define the approved screen identification, installation method, feed-rate range, inspection interval, and response to abnormal throughput. Train operators on the expected retained fraction and the signs of blinding or damage. Keep a record of the conditions that produced the qualifying result, including material grade, aperture, support design, and cleaning state.
Routine control also needs a periodic confirmation that the original assumptions remain true. A new powder supplier, milling setting, binder level, or dryer condition can change how material behaves on the screen. By comparing current feed and performance data to the approved baseline, the team can detect drift early and review the screen configuration before a downstream quality issue develops. This approach makes the mesh a stable part of process control rather than a last-minute troubleshooting tool.
When any parameter changes, retain comparison samples and document the disposition of material produced during the review period. This preserves traceability and supports a defensible decision to continue, adjust, or stop screening.
Ultra fine stainless steel mesh is used in battery powder filtration because it can create a defined, repeatable mechanical separation step in a demanding powder process. Its value comes from controlled aperture, appropriate construction, cleanable and inspectable hardware, and disciplined operating practices. Choose the mesh from process evidence, validate it with the real powder, and manage it as a quality-critical component. Weiyue can supply fine stainless steel mesh configurations, but the final design should always be tied to the user’s material, equipment, and quality system.
No. It may reject more material, blind more easily, and reduce throughput. The correct opening is the one that achieves the validated downstream requirement.
Moisture, cohesive fines, static, high feed rate, agglomerates, and unsuitable vibration conditions can block openings and alter screen performance.
Not automatically. Grade selection depends on process compatibility, fabrication, contamination requirements, and site specifications.
Set the interval through risk assessment and process validation; inspect immediately after abnormal yield, throughput, or integrity signals.
No. Damage can change the separation point and create foreign-material risk. Remove it according to the site’s quality procedure.
Include aperture or retention target, weave, wire diameter, material, dimensions, frame or support details, inspection criteria, and operating conditions.
