Selecting the right stainless steel woven wire mesh for your industrial, commercial, or filtration application can be challenging. While material grade (like 304 or 316) determines corrosion resistance, the weave type dictates the mesh's mechanical strength, flow rate, particle retention, and filtration precision.
Among the various weaving techniques available, Plain Weave, Twill Weave, and Dutch Weave are the three most popular and widely used configurations. Understanding their structural differences, pros, and cons will help you choose the precise mesh for your specific performance requirements.
Key Takeaways
Plain Weave is the standard, economical choice with square openings, offering high open area, excellent flow rates, and simple sifting performance.
Twill Weave accommodates thicker wire diameters for higher strength, better wear resistance, and finer mesh openings without distorting the wire.
Dutch Weave uses different wire sizes for warp and weft to create dense, tortuous paths—ideal for high-pressure micro-filtration (down to 1–5 microns).
Selection Rule: Choose Plain for high throughput/sifting, Twill for durability/heavy loads, and Dutch for critical liquid or gas filtration under pressure.

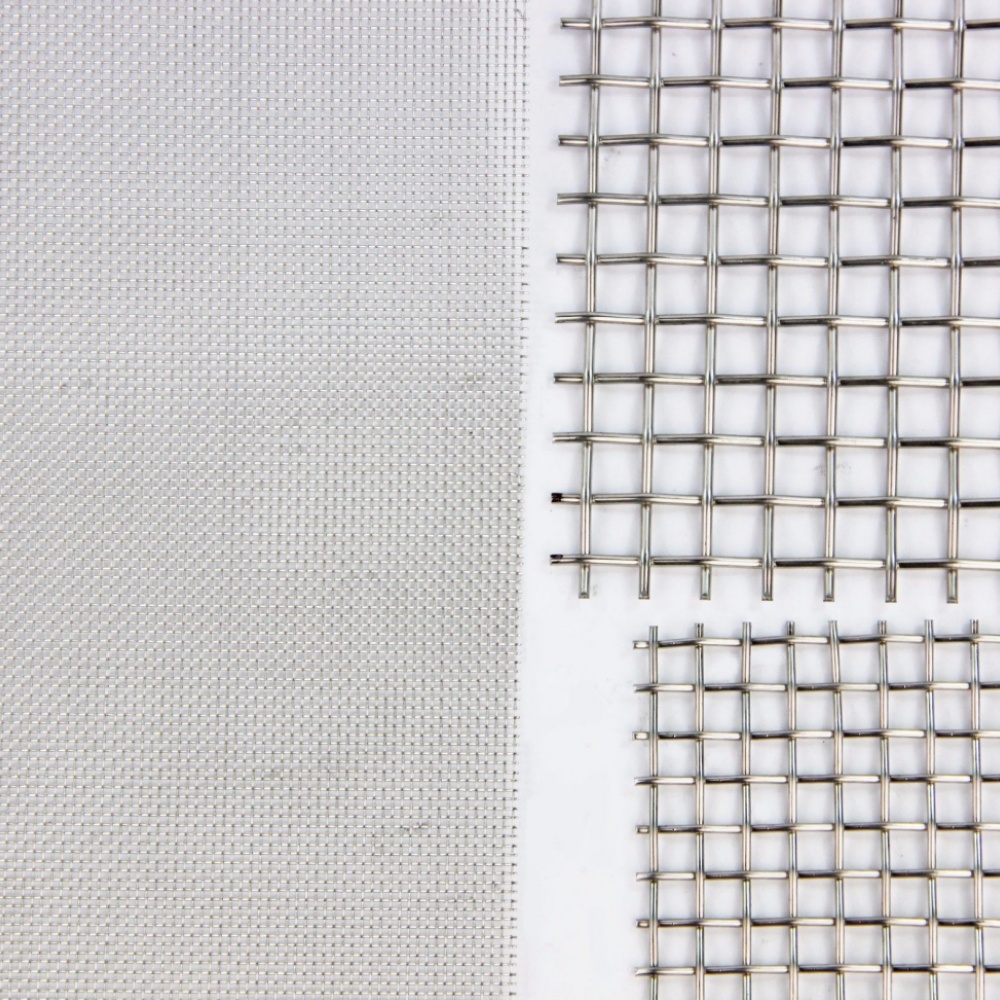

Plain weave is the simplest and most common style of wire mesh. In this pattern, each warp wire (running lengthwise) passes alternately over and under each weft wire (running crosswise) at a 90-degree angle.
Symmetrical Opening: Features square openings with consistent mesh counts in both directions.
High Transparency & Flow Rate: Offers maximum open area for excellent air, gas, and liquid permeability.
Standard Performance: Ideal for light to medium-duty applications where extreme strength is not required.
Standard industrial sifting and screening (e.g., sand, powders, agricultural seeds).
Architectural window screens, insect meshes, and decorative panels.
Basic liquid filtration in low-pressure systems.
In a twill weave, each warp wire passes alternately over two and under two weft wires. This pattern creates a characteristic diagonal line design on the mesh surface.
Thicker Wire Capability: Allows the use of heavier/thicker wire diameters for a given mesh count compared to plain weave.
Greater Mechanical Strength: Offers superior structural stability and load-bearing capacity.
Finer Filtration Than Plain Weave: Enables smaller mesh openings without causing wire deformation during weaving.
Heavy-duty industrial vibrating screens for mining and aggregates.
Extruder screens in plastic and polymer processing.
Hydraulic and fluid filtration operating under moderate pressure.
Unlike plain or twill weaves which use wires of similar thickness, Dutch weave utilizes different wire diameters for warp and weft:
Warp Wires: Larger diameter, spaced further apart to form a strong backbone.
Weft Wires: Smaller diameter, woven tightly together to create minute, wedge-shaped openings.
(Note: Dutch weave can also be combined with twill weaving to form Twill Dutch Weave, offering even higher micron filtration accuracy).
Zero Straight-Through Opening: The tight packing of weft wires creates a tortuous flow path, catching extremely fine particles.
Micron-Level Precision: Capable of filtering particles down to 1–5 microns.
High Pressure Resistance: Exceptional mechanical strength against deformation under heavy hydraulic flow.
High-precision filtration in Aerospace, Defense, and Automotive fuel systems.
Oil & Gas mud filtration, chemical processing, and pharmaceutical liquid purification.
High-pressure hydraulic filters.
To quickly determine which mesh fits your project best, refer to the decision guide below:
Feature | Plain Weave | Twill Weave | Dutch Weave |
|---|---|---|---|
Structure Pattern | 1 over / 1 under | 2 over / 2 under | Coarse warp + Fine packed weft |
Filtration Precision | Coarse to Medium | Medium to Fine | Micro / Sub-micron |
Open Area % | High | Medium | Low |
Mechanical Strength | Standard | High | Very High |
Best For... | Sifting & General Screening | Heavy Duty & Thicker Wires | High-Pressure Liquid/Gas Filtration |
Choose Plain Weave if your primary goal is high throughput, maximum airflow/light passage, and standard sifting.
Choose Twill Weave if you need heavier wire gauge, higher structural durability, and resistance to heavy vibration or wear.
Choose Dutch Weave if your application demands fine micron filtration, high pressure resistance, and zero particle leakage.
