316 Stainless Steel Wire Rope Net with Frame For Decorative Stair Railing

Share to:

316 Stainless Steel Wire Rope Net with Frame For Decorative Stair Railing

Name: 316 Stainless Steel Wire Rope Net with Frame For Decorative Stair Railing
Brand: Weiyue
Rating: 5.0 (81 reviews)

Availability:



Inquire Add to Basket

Model:
WYW-SW
Brand:
Weiyue
Code:
7314490000

Product Specification of Weiyue stainless steel wire rope mesh

material	stainelss steel 304 316 316L etc.
wire diameter	1.2 - 3.2mm
feature	flexible, high-Strength
technique	woven wire mesh
mesh rolls size	1x30m 2x30m 4x30m or according to clients' requirements
structure	77 or 719
surface	flat and bright

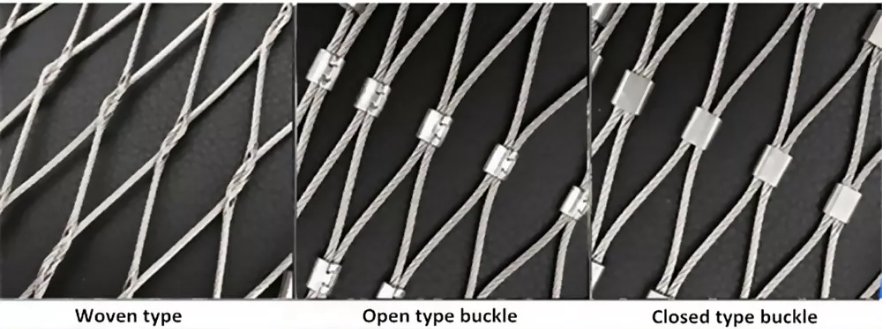

Weaving Types

编织方式

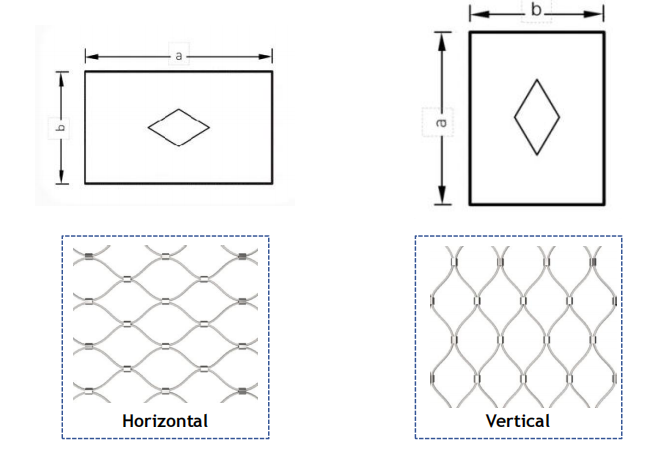

Different Designs

Use of Weiyue stainless steel wire rope mesh
Zoo fence: animal enclosures, aviary mesh, bird cage, wildlife park, marine park, etc.
Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc
Safety net: stair/balcony railing, balustrade, bridge safety net, anti-fall net, etc.
Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall system

Advantages of Weiyue stainless steel cable mesh
1. Excellent flexible performance.
2. Virtually indestructible.
3. Most impacting resistant and breaking resistant force, most resisting rain, snow,hurricane
4. High strength, strong toughness,free angles curving and fold, easy for transportation and installment.
5. Service life is over 30 years.

Packing and Shipping

Your enquiry and visit would be welcomed very much!
We can customize it according to your application and needs!

Stainless steel cable net is used for bird/aviary cage, zoo mesh fence, which are usually used for outdoor bird nets to cover the tops and sides of the birds' gardens and to build miniature natural ecological landscapes for birds. A good viewing line gives birds a free space to fly freely.

Model	Structure	Rope Diameter	Mesh Opening
2076	77 or 719	2.0mm	76*76mm
2051	77 or 719	2.0mm	51*51mm
1651	77 or 719	1.6mm	51*51mm
1638	77 or 719	1.6mm	38*38mm
1238	77 or 719	1.2mm	38*38mm
1230	77 or 719	1.2mm	30*30mm
1225	77 or 719	1.2mm	25*25mm

Specifications of two kinds of Stainless Steel Wire Rope Net
1: Flexible stainless steel cable mesh (Inter-woven type)

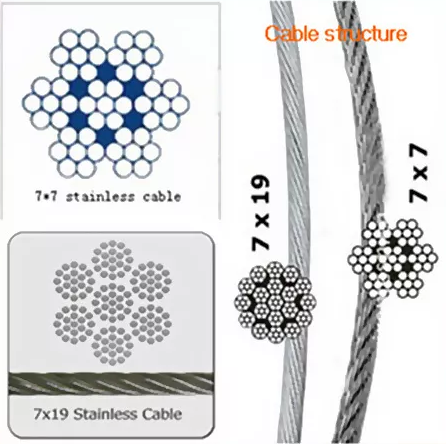

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
BR-19	7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
BR-20	7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
BR-21	7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
BR-22	7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
BR-23	7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22
BR-24	7 × 7	3/64	1.2	0.8" × 0.8"	20 × 20	1.22

2: Flexible stainless steel cable mesh (Ferrule type)
The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems.

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22
BR-19	7 × 7	3/64	1.2	40 × 69	1.22
