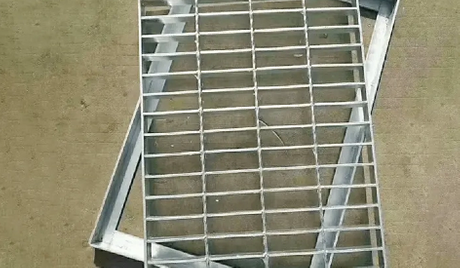

Stainless steel bar grating is an essential material used in a variety of industrial, commercial, and architectural applications. Whether you're designing an industrial floor, a walkway, or a drainage system, selecting the right type of stainless steel bar grating can significantly impact the safety, durability, and functionality of the finished product. To make the best choice, it is crucial to understand the key factors that affect the performance of stainless steel grating. This article will cover the top 5 factors to consider when specifying stainless steel bar grating for your next project.
The material grade and composition of stainless steel are vital factors when choosing bar grating. Different grades of stainless steel offer varying levels of strength, corrosion resistance, and suitability for specific applications. The two most commonly used grades in bar grating are 304 stainless steel and 316 stainless steel.
Composition: 18% chromium, 8% nickel.
Corrosion Resistance: Resistant to a wide range of environments, but may corrode when exposed to chlorides or saltwater.
Best For: General-purpose applications such as industrial flooring, walkways, and light-duty areas.
Composition: 16% chromium, 10% nickel, and 2-3% molybdenum.
Corrosion Resistance: Offers superior resistance to corrosion, especially in chloride-rich environments like coastal areas or chemical plants.
Best For: Harsh environments such as marine settings, chemical processing plants, and offshore applications.
For general-purpose use, 304 stainless steel is often sufficient, while 316 stainless steel should be considered for areas exposed to saltwater or other corrosive elements.
The load-bearing capacity of stainless steel bar grating is another crucial factor to consider, especially when the grating will be used in industrial environments where heavy machinery, equipment, or high foot traffic is expected. The strength of the grating depends on several factors, including the thickness of the bars, bar spacing, and the material used.
Bar Thickness: Thicker bars will generally offer more strength and the ability to carry heavier loads.
Bar Spacing: Narrower bar spacing provides more structural support but may reduce drainage efficiency.
Design and Usage: If the grating will be used in areas with constant heavy load exposure, such as warehouses, manufacturing facilities, or chemical plants, ensure that the bar grating is specified with an adequate load rating.
Evaluate the specific loads that the grating will encounter and select the appropriate bar thickness, spacing, and material strength to ensure safety and longevity.
Corrosion resistance is a critical consideration when specifying stainless steel bar grating, especially for applications exposed to the elements. Factors such as humidity, exposure to chemicals, and saltwater can lead to corrosion and significantly reduce the lifespan of the grating.
Marine Environments: Areas near the sea or in coastal regions experience high salt content in the air, which can quickly corrode materials. 316 stainless steel is best suited for these conditions due to its superior resistance to chlorides.
Chemical Exposure: If the grating will be exposed to chemicals, such as in manufacturing facilities or chemical plants, it's essential to choose stainless steel with high resistance to specific chemicals.
Indoor vs. Outdoor Use: Outdoor applications often require enhanced corrosion resistance due to weather elements, while indoor applications may have less demanding conditions.
For environments prone to corrosion—such as coastal areas, chemical plants, and heavy industrial zones—316 stainless steel is the best choice. For general indoor environments, 304 stainless steel is typically sufficient.
Slip resistance is an important factor, especially for areas that will be subject to wet or slippery conditions, such as walkways, stairways, or outdoor platforms. Stainless steel bar grating offers slip resistance naturally due to the gaps between the bars, but additional features like serrated bars or coatings can further improve traction.
Serrated Bars: Grating with serrated bars provides enhanced grip and reduces the risk of slips, particularly in wet or oily conditions. This is ideal for use in environments like factories or outdoor settings where wet conditions are common.
Coated Grating: Some stainless steel gratings are coated with non-slip materials like epoxy, which increases friction and provides a higher level of traction.
Bar Orientation: Gratings with bars running in the direction of traffic provide better slip resistance compared to perpendicular orientations.
If your grating will be used in high-traffic areas or environments prone to water exposure, choose serrated or coated stainless steel grating to enhance safety and minimize slip hazards.
While stainless steel bar grating is primarily a functional material, it also plays a role in the visual appeal of a space. In architectural or design applications, stainless steel grating can be used not only for its strength but also for its sleek, modern look. The aesthetic appearance of the grating can contribute to the overall design of buildings, public spaces, and industrial settings.
Finish and Texture: Stainless steel bar grating is available in various finishes, such as brushed, polished, or powder-coated. Choose a finish that complements the surrounding design elements.
Bar Patterns: Different bar patterns and spacing can affect the look of the grating. Customizable patterns allow for a more unique and tailored design.
Integration with Architecture: In architectural applications, consider how the grating will integrate with other materials and design elements like lighting, glass, and concrete.
For aesthetic-focused applications such as architectural designs, custom finishes and patterns can elevate the visual appeal of stainless steel bar grating while still maintaining its durability and functionality.
Selecting the right stainless steel bar grating for your project requires careful consideration of several factors, including material grade, load-bearing capacity, corrosion resistance, slip resistance, and aesthetic needs. By understanding these key factors, you can ensure that you choose the appropriate type of grating that meets both the functional and visual requirements of your application.
Whether you're working on an industrial flooring project, a pedestrian walkway, or an architectural feature, Hebei Weiyue Wire Mesh Products Co., Ltd. offers a wide range of stainless steel bar grating options that are tailored to meet the diverse needs of our clients. Contact us today for more information and to discuss your specific project requirements.
Q: What is the difference between 304 and 316 stainless steel bar grating?
A: The main difference is that 316 stainless steel contains molybdenum, which provides superior corrosion resistance, especially in chloride-rich environments, such as coastal areas or chemical plants.
Q: How do I determine the load-bearing capacity of stainless steel bar grating?
A: The load-bearing capacity depends on factors like bar thickness, bar spacing, and material grade. For heavy-duty applications, opt for thicker bars and 316 stainless steel for added durability.
Q: Is stainless steel bar grating suitable for outdoor use?
A: Yes, stainless steel bar grating is highly durable and resistant to corrosion, making it ideal for outdoor applications. For environments with high corrosion risks, consider using 316 stainless steel.
Q: Can I customize the appearance of stainless steel bar grating?
A: Yes, stainless steel bar grating is available in different finishes, textures, and patterns. Custom designs can be created to suit aesthetic and functional needs.
