Cutting stainless steel mesh can be tricky. It requires the right tools and techniques to avoid mistakes. Whether you're working with welded or woven mesh, choosing the proper method is key.
In this article, we will discuss the different tools and methods for cutting stainless steel mesh. You'll learn how to select the right tool based on wire diameter and mesh type, ensuring precise and clean cuts every time.
The wire diameter is a crucial factor when cutting stainless steel mesh. As the diameter increases, the material becomes more resistant to cutting, and the force required to make a clean cut also increases. Thicker wires, especially those ranging from 2.5mm to 8mm, often necessitate more powerful tools, such as angle grinders or plasma cutters. Thinner mesh, on the other hand, can be handled with manual tools like wire cutters or tin snips.
It’s important to match the right tool to the wire thickness. For example, small gauge wire (below 1mm) in woven mesh can be cut using household scissors, while heavier wire in welded mesh requires tools designed for greater cutting force.
The complexity of the cut also influences your choice of tools. For straight lines, basic hand tools like wire cutters or snips are sufficient. However, when intricate or curved cuts are required, specialized tools like laser cutters or water jet machines are necessary. These advanced tools ensure the precision needed for complex shapes, while also minimizing the risk of material distortion.
Laser cutting is highly effective for thin mesh, providing clean cuts with minimal heat impact, while water jet cutting is perfect for both thin and thick mesh, preserving the material's integrity without causing heat-affected zones.

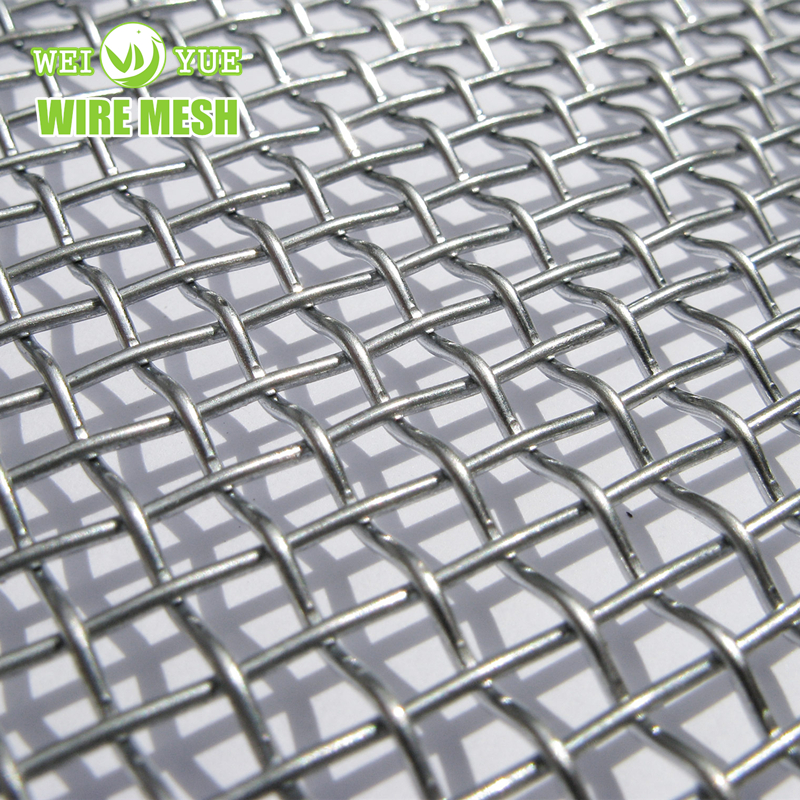

Understanding the type of mesh you are working with is fundamental to choosing the correct cutting technique. Welded mesh, where the wires are fused together at intersections, is more rigid and requires tools that can handle the strength of the wire. Woven mesh, with its interlaced wire structure, is more flexible and can often be cut with manual tools, though thicker or coarser woven meshes might require more power-driven equipment.
The differences in structure directly influence the tools and techniques that are most effective for each type.
For thin meshes with small wire diameters (up to 0.2mm), manual tools such as wire cutters and tin snips are the go-to options. Wire cutters are ideal for cutting fine mesh, as their sharp jaws allow for clean cuts without crushing the material. Tin snips, often used for slightly thicker wires, provide excellent control and are perfect for cutting through woven mesh up to 1.2mm in diameter.
Both tools are cost-effective and require minimal setup, making them suitable for smaller-scale projects where precision is key.
When working with thicker wire gauges, such as those found in welded mesh, power tools become necessary. Angle grinders are efficient for cutting medium to thick mesh. They can cut through wire gauges ranging from 2.5mm to 8mm. Using an appropriate grinding disc, these tools provide fast and relatively clean cuts.
For more intricate and demanding cuts, plasma cutters are recommended. These high-powered tools are capable of cutting through very thick material and can create complex profiles with ease. Plasma cutting is particularly useful for welded mesh with large wire diameters, where precision and speed are essential.
For those requiring the highest precision, especially for intricate or complex shapes, laser cutters and water jet cutters are the best options. Laser cutters provide high-speed and high-precision cuts on thin to mid-gauge mesh. While they work well for straight and curved cuts, they can sometimes leave a heat tint that must be removed to restore the material’s corrosion resistance.
Water jet cutters, on the other hand, use high-pressure water streams mixed with abrasive materials to cut through the mesh. They are highly precise and leave no heat-affected zones, making them ideal for applications where the mesh properties must remain unchanged.
1. Secure the Mesh: Place the mesh on a stable surface, and clamp it in place to prevent movement during the cutting process.
2. Mark the Cut: Use a fine marker or scribe to indicate where you need to cut.
3. Cutting: Position the wire cutters along the marked line and apply steady pressure to make the cut. Be sure to use slow, controlled movements to avoid crushing the mesh.
4. Refining the Cut: After cutting, inspect the edges for any unevenness. Use a small file or sandpaper to smooth out any rough edges for a professional finish.
1. Secure the Mesh: Clamp the mesh to a flat, stable surface to prevent it from moving while cutting.
2. Mark the Cut: Use a ruler to draw straight lines, or a template for curves.
3. Cutting: Hold the tin snips at the start of the line, and cut the mesh using a steady, controlled motion. If cutting curves, adjust the angle of the snips accordingly.
4. Final Touches: Once the cut is made, smooth the edges with a file to remove any burrs.
1. Setup: Attach a thin, stainless steel-rated cutting disc to the grinder.
2. Mark the Cut: Use a ruler or template to outline where you’ll cut.
3. Cutting: Hold the grinder steady and guide it along the marked line. Move slowly to ensure precision.
4. Edge Refining: After cutting, use a grinding wheel to smooth any rough edges or burrs that might remain.
1. Setup: Ensure the plasma cutter is correctly configured and ready to cut.
2. Mark the Cut: Use a permanent marker to draw your cut lines clearly.
3. Cutting: Activate the plasma cutter and guide the torch slowly along the marked lines. Ensure consistent speed for clean, even cuts.
4. Edge Cleaning: Once the cut is made, check for heat-affected zones and remove any discoloration with a post-cut cleaning process.
1. Preparation: Secure the mesh and upload your cutting design to the laser cutter’s control system.
2. Cutting: Start the laser cutter, ensuring the focus and settings are appropriate for the mesh thickness.
3. Post-Cutting: Inspect the edges for any imperfections and remove heat tint if necessary. Clean the material thoroughly to restore its corrosion resistance.
Accurate measurements are essential to avoid wasting material and ensure that your cuts are precise. Use a straight edge for linear cuts and templates for curves. For complex shapes, a CAD drawing or DXF file can be provided for automated cutting tools.
Heat can damage stainless steel, causing discoloration and weakening the material. Use coolants when using grinders or saws, and avoid long, continuous cuts. For high-precision tools like lasers, ensure proper post-cut cleaning to remove heat-affected zones and restore the material’s integrity.
After cutting, stainless steel mesh often has burrs or sharp edges that can be dangerous to handle. Use a deburring tool or fine-grit sandpaper to smooth these edges, ensuring the finished mesh is both safe to handle and aesthetically clean.
Laser cutting is ideal for making precise, clean cuts with minimal heat distortion. It offers speed and high accuracy, making it well-suited for small to mid-gauge mesh, especially when intricate and complex designs are required. The process ensures smooth edges with minimal post-processing.
Water jet cutting is perfect for producing complex shapes with high precision, without affecting the material’s properties. Since it doesn't generate heat, it preserves the integrity of stainless steel mesh, making it an excellent option for applications that demand minimal material alteration.
If your project requires high-volume production or involves intricate cuts that are too complex for manual tools, outsourcing to a professional cutting service can ensure higher precision, faster turnaround, and cost savings, especially for large-scale or intricate mesh projects.
Using the wrong tool for your mesh’s wire diameter or the complexity of the cut can result in uneven or damaged edges, compromising the overall quality of the mesh. It’s crucial to match the tool to both the mesh thickness and the required precision, ensuring a clean and effective cut every time.
Failing to adhere to safety precautions when cutting stainless steel mesh can lead to severe injuries, including cuts or exposure to sparks and flying debris. Always wear proper protective gear, such as gloves, goggles, and hearing protection. Additionally, ensure the work area is free from distractions and hazards to maintain a safe environment.
Inaccurate measurements or hasty cuts can result in wasted material and extra costs. Take the time to plan your cuts carefully, measure twice, and ensure the tool is properly aligned. This extra attention to detail helps avoid mistakes and ensures that every piece of mesh is used efficiently.
Mistake | Solution |
Using the wrong tool | Select tools based on the mesh type and wire diameter. |
Not wearing protective gear | Always wear gloves, goggles, and hearing protection. |
Inaccurate measurements | Take the time to measure twice and align tools properly. |
Rushing the cutting process | Take your time to ensure clean, accurate cuts. |
Ignoring edge burrs | Use deburring tools or a file to smooth rough edges after cutting. |
Cutting stainless steel mesh requires the right tools, precision, and safety measures. Whether you're using manual tools for fine mesh or advanced power tools for heavy-gauge mesh, understanding the proper techniques and tools ensures a clean, accurate cut. Hebei Weiyue Wire Mesh Products Co., Ltd. offers high-quality stainless steel mesh that is durable and easy to work with, helping customers achieve professional results. Prioritize safety, take your time, and choose the correct method to get the best outcomes.
A: Stainless steel mesh is commonly used in various industries, including construction, filtration, and security. It provides durability and resistance to corrosion, making it ideal for a wide range of applications.
A: Cutting stainless steel mesh requires selecting the appropriate tool based on the wire diameter. For fine mesh, wire cutters or tin snips work well. For heavier gauges, an angle grinder or plasma cutter may be needed.
A: Regular scissors are not recommended for cutting stainless steel mesh, especially for thicker gauges. Use specialized tools like wire cutters or tin snips for better results.
A: Using the wrong tool can lead to poor-quality cuts or damage to the stainless steel mesh. The right tool ensures clean cuts, preserving the mesh's integrity and functionality.
A: For thicker stainless steel mesh, tools like angle grinders with metal-cutting discs or plasma cutters are ideal. These tools provide the power and precision needed for clean, accurate cuts.
A: Yes, cutting stainless steel mesh involves safety risks. Always wear gloves, goggles, and hearing protection when using power tools, and ensure the work area is secure to prevent injuries.
