Stainless steel mesh is a reliable and versatile material for various industrial and DIY applications. However, with so many options available, selecting the right stainless steel mesh can be overwhelming. This article will guide you through the critical factors to consider when choosing stainless steel mesh, ensuring you make an informed decision tailored to your specific needs.
The first step in selecting the right stainless steel mesh is understanding its intended purpose. Different applications require different properties from the mesh. For example, if you need the mesh for filtration, you'll want a fine mesh with small openings. On the other hand, if you require reinforcement for construction, a thicker, stronger mesh with larger openings may be necessary. Understanding whether the mesh is for structural support or aesthetic purposes will help you choose the right type of stainless steel mesh.
Environmental factors play a significant role in determining the right mesh for your project. Consider whether the mesh will be exposed to harsh chemicals, high temperatures, or moisture. For projects in corrosive environments, such as those near the ocean or in chemical plants, stainless steel grades like 316, known for superior corrosion resistance, would be a better fit. If the mesh will be exposed to extreme temperatures, selecting a stainless steel mesh with high heat resistance is crucial to ensuring longevity.
Next, assess the load-bearing capacity and the expected durability of the mesh. Heavy-duty applications, such as security fences or structural reinforcement, require stronger, more durable mesh. In contrast, lighter-duty uses, such as window screens or decorative features, can make use of thinner, more flexible mesh. The required durability will also influence your choice of mesh thickness and wire diameter.

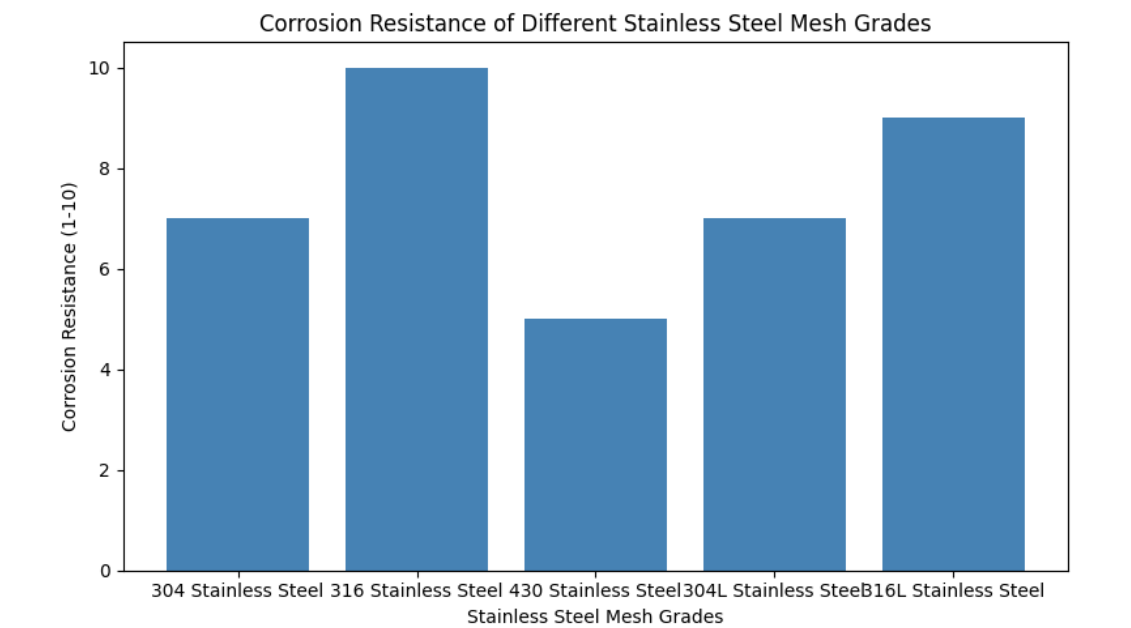

Two of the most common stainless steel grades used for mesh are Grade 304 and Grade 316. Grade 304 is a versatile and cost-effective option, offering good corrosion resistance for most indoor applications. However, if the mesh will be exposed to harsher environments, such as saltwater or chemicals, Grade 316 is the better option. Grade 316 has a higher concentration of molybdenum, which enhances its corrosion resistance, especially against chlorides.
Grade | Corrosion Resistance | Common Applications | Strength |
304 | Moderate | Food processing, indoor use | Good |
316 | High | Marine environments, chemicals | Excellent |
In addition to Grade 304 and Grade 316, other stainless steel grades are available, each with specific uses. For example, Grade 201, an austenitic stainless steel, offers lower nickel content and is generally less resistant to corrosion than Grades 304 and 316, but it provides a more cost-effective alternative for less demanding applications. Grades like 304L and 316L are low-carbon versions of their counterparts, making them more suitable for welding and reducing the risk of sensitization.
Choosing between Grade 304 and Grade 316 depends on your project's exposure to environmental stressors. If you're working in a marine environment, chemical processing plant, or anywhere with exposure to harsh conditions, 316 will provide superior performance. On the other hand, if your project is in a less demanding environment, Grade 304 may offer a more affordable yet still durable option.
Mesh size refers to the number of openings per inch of the material. Smaller mesh sizes (i.e., higher mesh counts) are ideal for applications that require filtration or sifting of fine particles. For example, in water filtration systems, fine mesh is essential to separate contaminants effectively. Larger mesh sizes are suited for applications like security fencing, where strength and visibility are more important than filtration.
The size of the openings in the mesh will directly affect the material's performance in filtering, sieving, or ventilation. For applications requiring high precision, smaller mesh sizes are recommended. However, for structural purposes, a larger mesh size can provide the strength needed without compromising performance.
The weave type also plays a critical role in the mesh's functionality. Plain weave is the most common and simple pattern, where the wires alternate over and under, creating a balanced grid. Twill weave, on the other hand, features a pattern where each wire passes over two and under two, increasing the mesh's strength and resistance to pressure. Dutch weave creates tighter openings and is often used for fine filtration, offering greater stability and filtration capabilities.
The choice of weave type should depend on your project’s demands. Plain weave is ideal for general applications, while twill and Dutch weaves are more suited for filtration and high-pressure environments.
While woven stainless steel mesh is flexible and ideal for applications that require precision, welded mesh provides a more rigid structure. Welded mesh is created by welding intersecting wires at each junction, making it a strong, durable option for heavy-duty applications like security fences and structural reinforcement. Woven mesh, however, is typically used in filtration systems or for lightweight applications where flexibility is necessary.
Wire gauge is an important factor to consider when selecting stainless steel mesh. The gauge refers to the thickness of the individual wires used to create the mesh. A lower gauge number means thicker, stronger wire, while a higher number indicates a thinner wire. For heavy-duty applications, such as security or construction, a thicker gauge is necessary to ensure durability and strength. For lighter applications, such as decorative elements or light filtration, a thinner gauge may suffice.
When choosing the right wire gauge for your project, consider the level of strength required. For instance, 14-gauge wire is ideal for heavy-duty applications that require support, such as fencing or reinforcement. For applications like insect screening or filtration, a higher gauge, such as 20-gauge, is more appropriate, as it allows for finer openings while still offering sufficient durability.
Wire Gauge | Application Type | Strength & Durability |
14 Gauge | Heavy-duty, structural support | High strength |
20 Gauge | Light-duty, decorative uses | Moderate strength |
18 Gauge | General-purpose, medium-duty | Balanced strength |
Stainless steel mesh is known for its durability, but the cost can vary based on the grade, size, and gauge of the mesh. While higher-grade meshes like 316 may come with a higher upfront cost, their superior corrosion resistance and longevity can save money in the long term by reducing maintenance and replacement costs. Consider the lifespan and performance benefits when making your budgetary decisions.
When selecting stainless steel mesh, it's essential to consider availability and lead times. Custom mesh products may take longer to produce and deliver, while standard mesh sizes and grades are more readily available. If your project timeline is tight, be sure to choose mesh that can be delivered promptly, and plan accordingly if custom sizes or specifications are required.
Balancing cost with durability is key when choosing the right mesh. While opting for a less expensive mesh may seem like a good choice initially, the long-term performance of the material is what matters. Investing in a higher-quality mesh can often result in cost savings over time due to its longevity and minimal maintenance requirements.
Mesh Type | Initial Cost | Longevity | Suitability for Harsh Environments |
304 Mesh | Moderate | Good | Suitable for indoor and mild conditions |
316 Mesh | High | Excellent | Ideal for marine or chemical environments |
Galvanized | Low | Moderate | Best for cost-effective outdoor use |
Mesh coatings can add another layer of protection against corrosion and wear. Galvanized coatings provide an extra layer of zinc to protect against rust, making it ideal for outdoor use in environments with moisture. Powder coating offers a durable, aesthetic finish in various colors, making it suitable for architectural and decorative applications. Anodized finishes, typically applied to aluminum, provide corrosion resistance and enhance the material’s strength.
When selecting a finish, consider the environment the mesh will be exposed to. For outdoor and industrial applications, galvanized or anodized finishes offer superior protection against corrosion. For aesthetic applications, powder-coated finishes provide a variety of color options while maintaining durability.
For decorative uses, such as facades or architectural elements, finishes like polished or anodized stainless steel mesh can enhance the visual appeal of a project while maintaining functionality. These finishes offer an attractive appearance while also ensuring durability and resistance to the elements.
Stainless steel mesh is commonly used in industries such as food processing, aerospace, and chemical manufacturing. It is highly valued for its durability, corrosion resistance, and versatility in various industrial applications. For instance, in food processing, stainless steel mesh filters out contaminants, while in aerospace, it is used for structural applications due to its strength and weight-bearing capabilities.
In security applications, stainless steel mesh is widely used for fences, barriers, and window screens. Its high strength and durability make it an excellent choice for preventing unauthorized access and providing safety. The mesh's corrosion resistance ensures long-lasting performance, even in harsh outdoor environments.
In architecture, stainless steel mesh is used for decorative purposes, including facades, partitions, and ceilings. Its sleek, modern appearance enhances the aesthetic appeal of a building while offering the strength to support various structural elements. The mesh is also used in urban design for creating visually appealing and functional outdoor spaces.
Stainless steel mesh is also employed in agriculture, where it is used for crop protection, animal enclosures, and sieving agricultural products. Its resistance to corrosion makes it perfect for outdoor use, where it can withstand various weather conditions and provide long-lasting performance.
Selecting the right stainless steel mesh involves careful consideration of your project’s specific requirements, including environmental factors, mesh size, grade, and durability. By understanding these key factors, you can choose the appropriate mesh for your application, ensuring optimal performance and longevity. Proper selection will help you avoid costly mistakes and ensure your project’s success for years to come.
For reliable and durable stainless steel mesh products, Hebei Weiyue Wire Mesh Products Co., Ltd. offers a range of high-quality options, ensuring that your project meets all necessary requirements.
A: Stainless steel mesh is commonly used for filtration, reinforcement, security, and decorative applications. It offers durability and corrosion resistance in various industries.
A: The choice of grade depends on your project’s environment. Grade 304 is good for mild conditions, while Grade 316 offers better corrosion resistance for harsh environments like marine applications.
A: Consider factors like mesh size, wire gauge, environmental conditions, load requirements, and the specific function of the mesh (filtration, reinforcement, etc.).
A: Woven stainless steel mesh is flexible and suitable for filtration, while welded mesh offers higher strength and is used for structural applications like fencing.
A: A thicker wire gauge increases strength and durability, making it suitable for heavy-duty applications, while a thinner gauge provides more flexibility for light-duty tasks.
