Stainless steel is one of the most versatile materials available, and when it comes to grating, two types stand out as the most commonly used: 304 and 316 stainless steel. Both offer excellent durability, corrosion resistance, and strength, but they also have distinct properties that make them suitable for different applications. Understanding the key differences between 304 and 316 stainless steel grating is crucial for selecting the right material for your project. In this article, we will compare the two types of stainless steel grating in terms of composition, properties, applications, and more to help you make an informed decision.
Before diving into the comparison of 304 vs. 316 stainless steel grating, let’s first understand what stainless steel grating is and why it’s used.

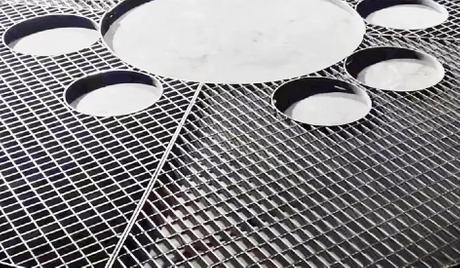

Stainless steel grating is a form of metal grating that is commonly used for flooring, walkways, drainage covers, and other structural applications in industrial, commercial, and architectural environments. The open design of the grating allows for efficient water drainage, reduces the risk of slips, and supports heavy loads. Stainless steel grating is known for its high strength, corrosion resistance, and aesthetic appeal.
The primary difference between 304 and 316 stainless steel lies in their chemical composition. While both are austenitic stainless steels, 316 has a higher content of molybdenum compared to 304. Here’s a breakdown of their key components:
304 Stainless Steel:
Contains 18% chromium and 8% nickel, which contribute to its corrosion resistance.
Does not include molybdenum, which limits its resistance to chloride corrosion.
316 Stainless Steel:
Contains 16% chromium, 10% nickel, and 2-3% molybdenum, which enhances its resistance to chlorides and other corrosive materials.
The addition of molybdenum allows 316 stainless steel to withstand aggressive environments, such as exposure to saltwater, acids, and other harsh chemicals.
Both 304 and 316 stainless steel are highly resistant to rust and corrosion, but 316 outperforms 304 in harsh environments, particularly those exposed to saltwater, acidic solutions, or chemicals.
304 Stainless Steel:
Highly resistant to corrosion in most environments, including those found in food processing plants, kitchens, and clean rooms.
Performs well in environments with mild levels of moisture and non-oxidizing acids but may suffer from pitting and crevice corrosion in chloride-rich environments.
316 Stainless Steel:
Offers superior corrosion resistance compared to 304, especially in chloride-rich environments (e.g., marine environments, chemical processing plants, and coastal areas).
The molybdenum content gives it an edge over 304 stainless steel in applications where the material will be exposed to corrosive substances like seawater or road salts.
In terms of strength and durability, both 304 and 316 stainless steel grating are incredibly strong materials. However, there are subtle differences between them:
304 Stainless Steel:
Known for its excellent tensile strength and resistance to deformation under stress.
Suitable for most general applications, but it is slightly less resistant to cracking and damage under extreme conditions compared to 316.
316 Stainless Steel:
Offers slightly higher strength and toughness compared to 304, especially in high-stress and harsh conditions.
More resistant to physical wear and damage, making it ideal for environments that require enhanced durability, such as heavy-duty industrial applications.
Due to its higher molybdenum content, 316 stainless steel is typically more expensive than 304 stainless steel. However, the additional cost is often justified by its superior corrosion resistance and performance in harsh environments.
304 Stainless Steel:
Generally more affordable, making it a cost-effective option for projects that don’t require the superior corrosion resistance of 316.
316 Stainless Steel:
More expensive but well worth the investment for applications where the material will be exposed to aggressive chemicals, saltwater, or extreme weather conditions.
304 stainless steel grating is ideal for general-purpose applications where corrosion is not a primary concern. Here are some of the most common uses:
Food Processing: 304 stainless steel grating is widely used in food manufacturing plants due to its excellent hygiene properties and resistance to most food-related chemicals.
Commercial and Residential Buildings: 304 stainless steel grating is used for walkways, decorative flooring, and exterior features in both commercial and residential buildings.
Mild Chemical Environments: It is used in chemical plants or pharmaceutical facilities that deal with non-corrosive chemicals or non-saline environments.
316 stainless steel grating is used in environments where resistance to corrosion, especially from chlorides, is essential. Some of the common applications include:
Marine and Coastal Areas: 316 stainless steel grating is frequently used in coastal areas where it is exposed to saltwater and humid conditions, such as docks, piers, and seawalls.
Chemical and Petrochemical Industries: 316 stainless steel grating is ideal for chemical plants where exposure to corrosive substances, including strong acids and salts, is common.
Offshore and Oil & Gas Applications: The superior resistance to harsh environmental factors makes 316 stainless steel grating suitable for offshore oil rigs and gas platforms.
When choosing between 304 and 316 stainless steel grating for your project, it’s essential to evaluate the specific needs and conditions of your application. Here are a few factors to consider:
Environment Exposure:
If your application involves exposure to saltwater, chemicals, or corrosive elements, 316 stainless steel grating is the better choice due to its superior corrosion resistance.
For general-use applications with low exposure to harsh environments, 304 stainless steel grating is an excellent option.
Cost Considerations:
If budget is a concern and the environment isn’t too aggressive, 304 stainless steel grating is a more cost-effective choice.
If the grating will be used in a high-stress or highly corrosive environment, the additional cost of 316 stainless steel is worth the long-term durability.
Strength Requirements:
For most industrial applications, 304 stainless steel grating will provide sufficient strength and durability.
For areas with high foot traffic, heavy machinery, or harsh conditions, 316 stainless steel grating provides additional strength and toughness.
Both 304 and 316 stainless steel grating offer outstanding durability and resistance to corrosion, but their unique properties make them better suited to different applications. 304 stainless steel grating is a versatile and cost-effective option for general-purpose use, while 316 stainless steel grating provides superior protection in highly corrosive environments. By evaluating your project’s specific needs, you can select the appropriate material that will provide the best performance and value for your investment.
At Hebei Weiyue Wire Mesh Products Co., Ltd., we specialize in high-quality stainless steel grating solutions, including both 304 and 316 stainless steel options. Whether you need grating for industrial flooring, walkways, or drainage systems, we can help you find the right product for your needs.
Q: What are the main differences between 304 and 316 stainless steel grating?
A: The primary difference is the presence of molybdenum in 316 stainless steel, which gives it superior corrosion resistance, especially in environments exposed to saltwater or chemicals.
Q: Is 316 stainless steel grating worth the extra cost?
A: Yes, 316 stainless steel grating is worth the extra cost in environments where corrosion resistance is critical, such as in marine or chemical processing applications.
Q: Can I use 304 stainless steel grating in outdoor environments?
A: Yes, 304 stainless steel grating can be used outdoors, but it is best for areas not exposed to harsh chemicals or saltwater, as it may corrode in these conditions over time.
Q: How do I determine which type of stainless steel grating to use for my project?
A: Consider the environment your grating will be exposed to. If it's a corrosive or highly exposed environment, 316 is the better choice; for general use, 304 stainless steel is often sufficient.
